Model name: ASUS B760M-K

Specifications:

• CPU: Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, 12th Gen, Pentium® Gold, and Celeron® Processors
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Chipset: Intel® B760 Chipset
• Memory:
  • 2 x DIMM slots, Max. 96GB, DDR5 8000(OC) down to 4800
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
• Graphics:
  • 1 x VGA port
  • 1 x HDMI™ port (supports 4K@60Hz, HDMI™ 2.1)
• Expansion Slots:
  • 1 x PCIe 4.0 x16 slot (from CPU)
  • 2 x PCIe 4.0 x1 slots (from chipset)
• Storage:
  • 2 x M.2 slots (PCIe 4.0 x4)
  • 4 x SATA 6Gb/s ports
  • Supports Intel® Rapid Storage Technology with RAID 0/1/5/10
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• USB:
  • Rear: 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)
  • Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (3 ports)
• Audio: Realtek 7.1 Surround Sound HD Audio CODEC
  • Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Up to 24-Bit/192 kHz playback
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

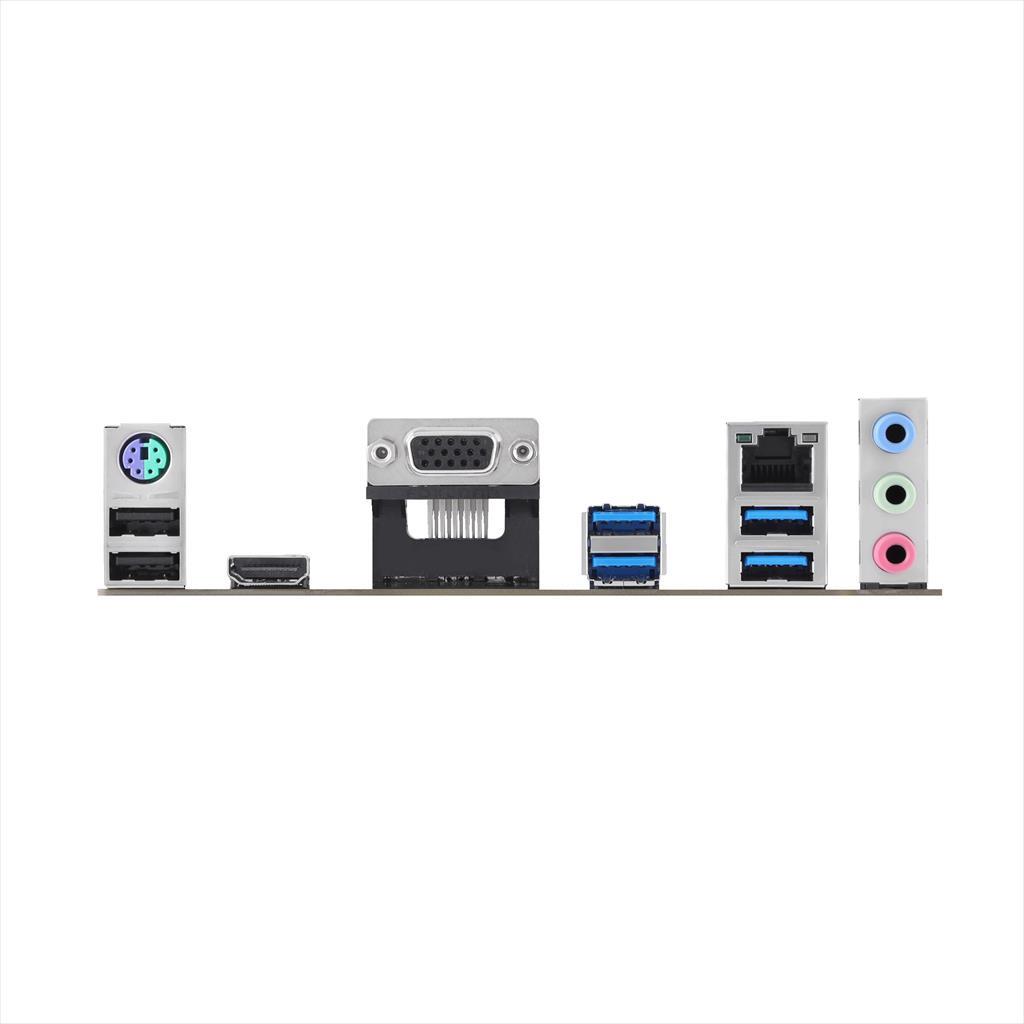

• Back Panel I/O Ports:
  • 4 x USB 3.2 Gen 1 (Type-A)
  • 2 x USB 2.0 (Type-A)
  • 1 x VGA port
  • 1 x HDMI™ port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
  • Fan and Cooling:
    • 1 x 4-pin CPU Fan header
    • 2 x 4-pin Chassis Fan headers
  • Power:
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
  • Storage:
    • 2 x M.2 slots
    • 4 x SATA 6Gb/s ports
  • USB:
    • 1 x USB 3.2 Gen 1 header (2 ports)
    • 2 x USB 2.0 headers (3 ports)
  • Miscellaneous:
    • 2 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x S/PDIF Out header
    • 1 x Speaker header
    • 1 x SPI TPM header (14-1 pin)
    • 1 x 10-1 pin System Panel header
• Special Features:
  • ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O
  • ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot
  • ASUS EZ DIY: ProCool
  • ASUS Thermal Solution: VRM heatsink design
  • Aura Sync: Aura RGB header, Addressable Gen 2 headers
• Software Features:
  • ASUS Exclusive Software: Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation)
  • AI Suite 3 (DIGI+ VRM, PC Cleaner)
  • ASUS CPU-Z
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR
• UEFI BIOS:
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor: mATX Form Factor
