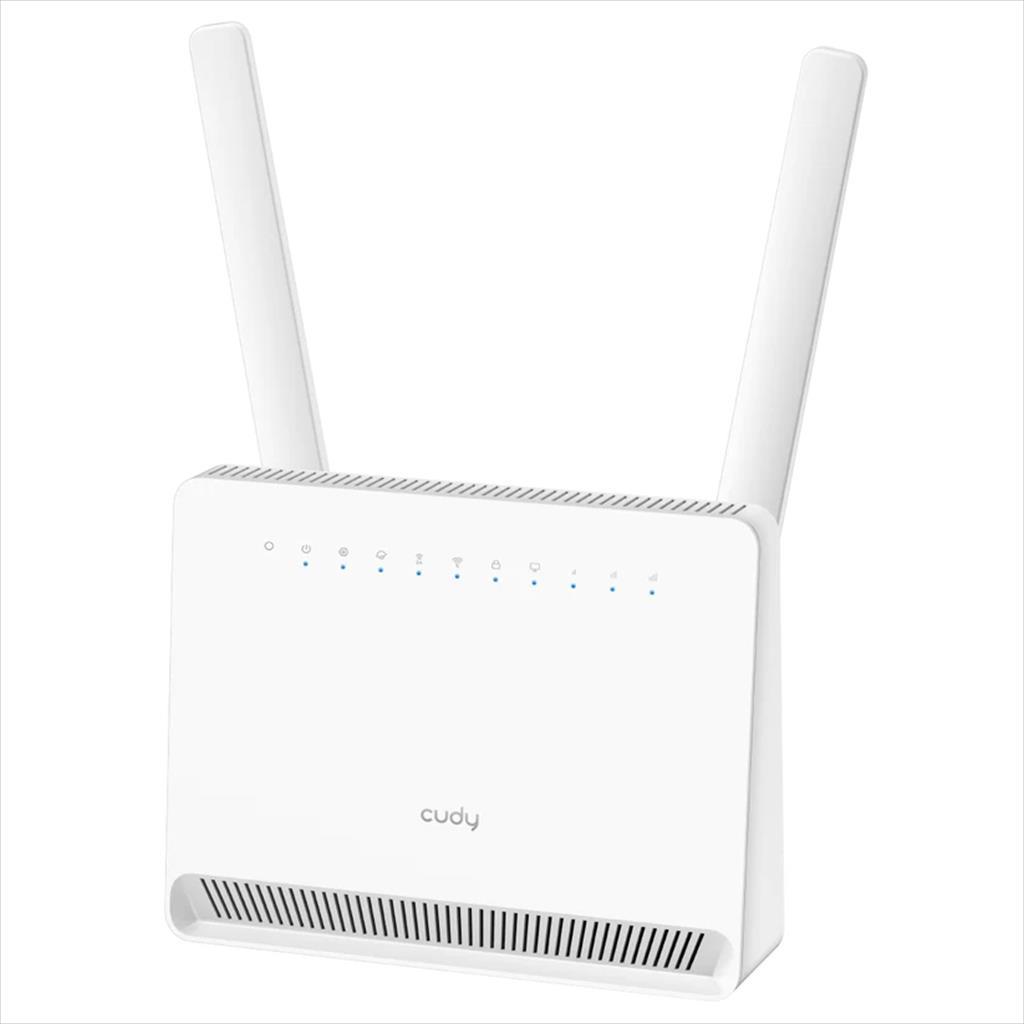

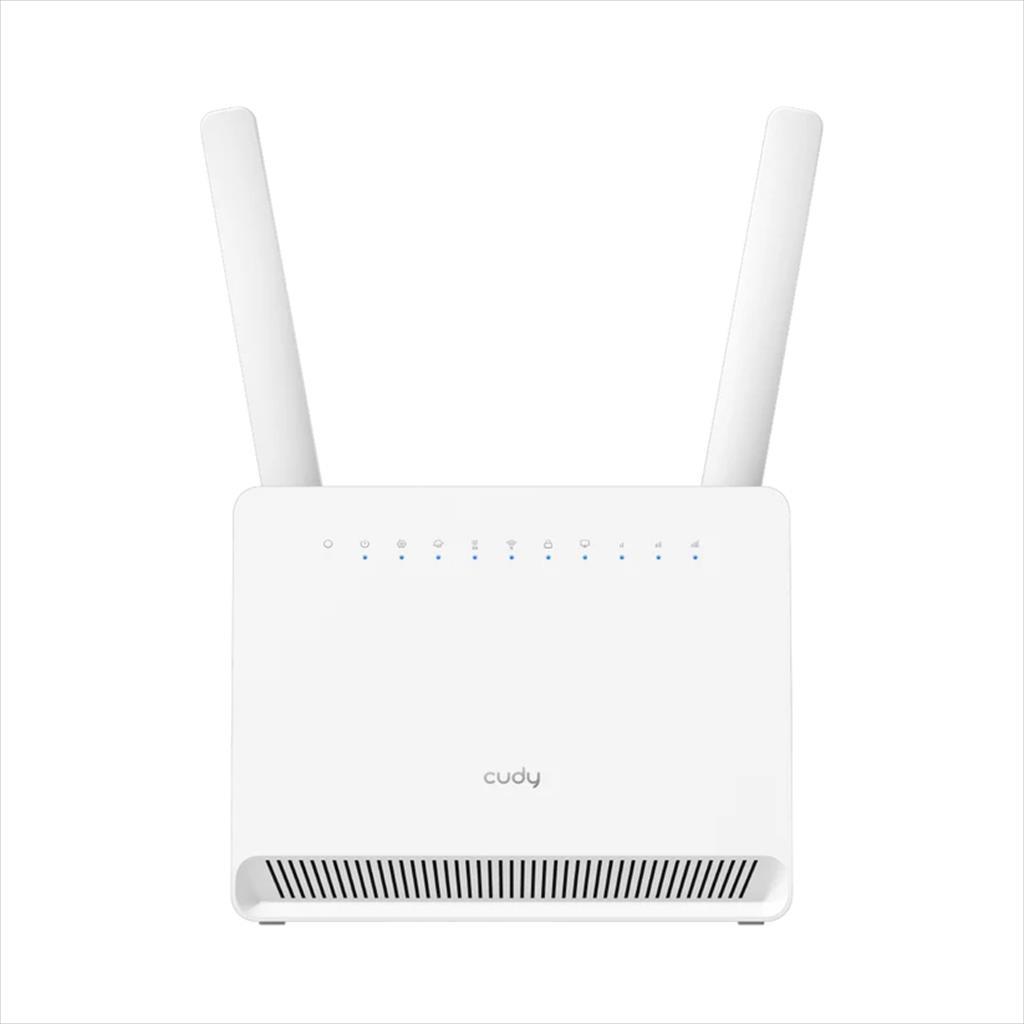

Model name: CUDY LT15E

Specifications:

• CPU:
  • CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
• Memory/Storage:
  • Flash/ROM: 128 MB (1 Gbit) NAND
  • DDR/RAM: 256 MB (2 Gbit) DDR3
• Cellular:
  • Cellular Standards: 4G LTE Cat. 12
  • Cellular Antennas: 4× Internal, 2× Detachable
  • Detachable Cellular Antennas Connector: SMA Female

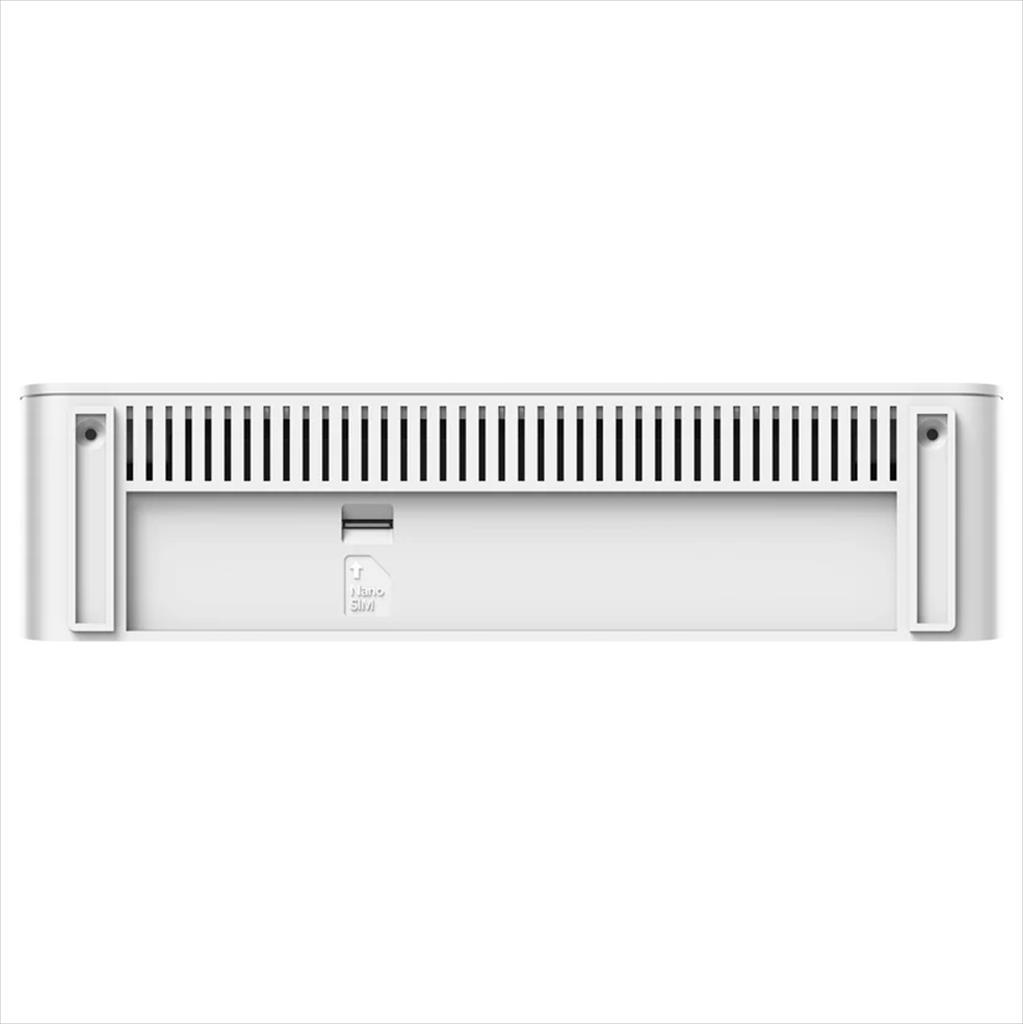

  • SIM Options: 1× Nano SIM Slot, eSIM (optional)
  • Max DL Speed: 600 Mbps (LTE-FDD), 430 Mbps (LTE-TDD)
  • Max UL Speed: 150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD)
  • Advanced: DL 3CA, DL 4×4 MIMO
  • Cellular Bands:
    • LTE-FDD: B1/3/5/7/8/20/28
    • LTE-TDD: B38/40/41
    • WCDMA: B1/3/5/8
• Wireless:
  • 5 GHz Wi-Fi Speed: 2402 Mbps
  • 2.4 GHz Wi-Fi Speed: 574 Mbps
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 3× Internal
  • 5 GHz Antenna Gain Max: 5 dBi
  • 2.4 GHz Antenna Gain Max: 5 dBi
  • Beamforming: True
  • FEM or PA/LNA:
    • 5 GHz: 3× Internal
    • 2.4 GHz: 2× Internal
  • Range Performance: Max: 180 m (591 ft)
  • Wall Performance:
    • Two wooden walls with thickness < 10 cm (4'')
    • One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

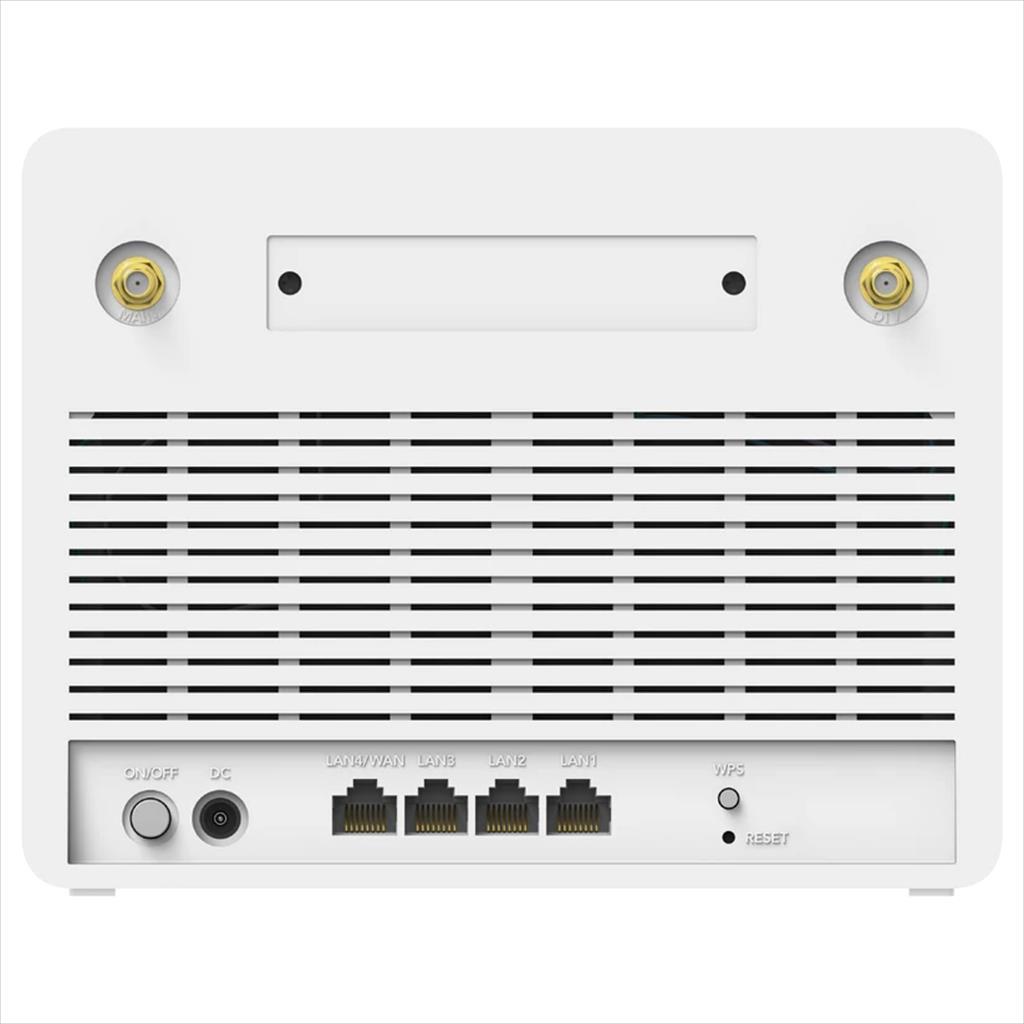

• Interfaces:
  • Physical Buttons: WPS Button, Reset Button
  • Gigabit RJ45 Ports: 4
  • Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
  • LED Indicators:
    • Power
    • System
    • Internet
    • 2.4 GHz Wi-Fi
    • 5 GHz Wi-Fi
    • WPS
    • LAN
    • Cellular Signal Strength
• Power:
  • Power Input: DC Jack
  • Power Methods: DC
  • DC: 12V 1.5A
  • Power Adapter:
    • Input: 100 ~ 240 V, 50/60 Hz AC
    • Output: 12V 1.5A DC
  • Max Power Consumption: 13W
  • Idle Power Consumption: 6W
• Reliability: EMS: ESD: Contact: 4kV; Air: 8kV
• Environment: Operating Humidity: 0% ~ 100% non-condensing
• Certifications: FCC, CE
