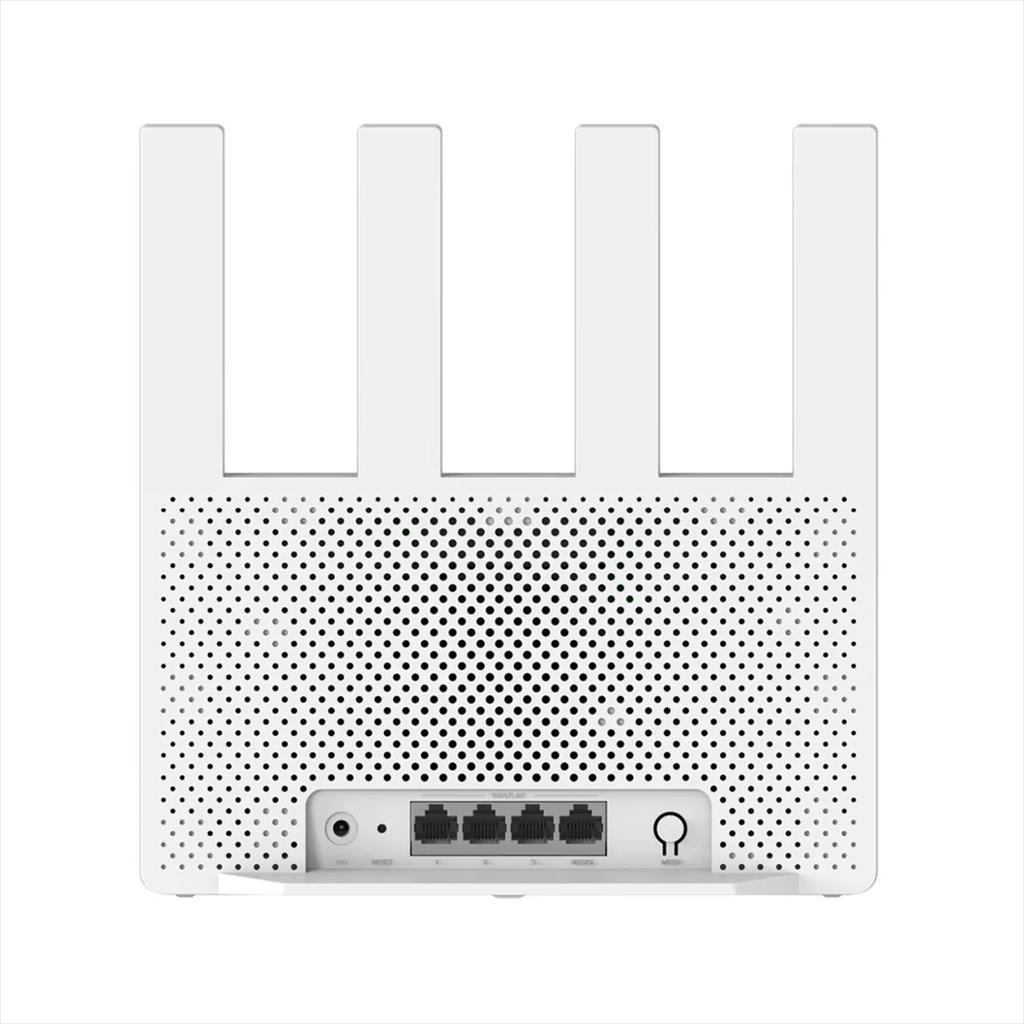

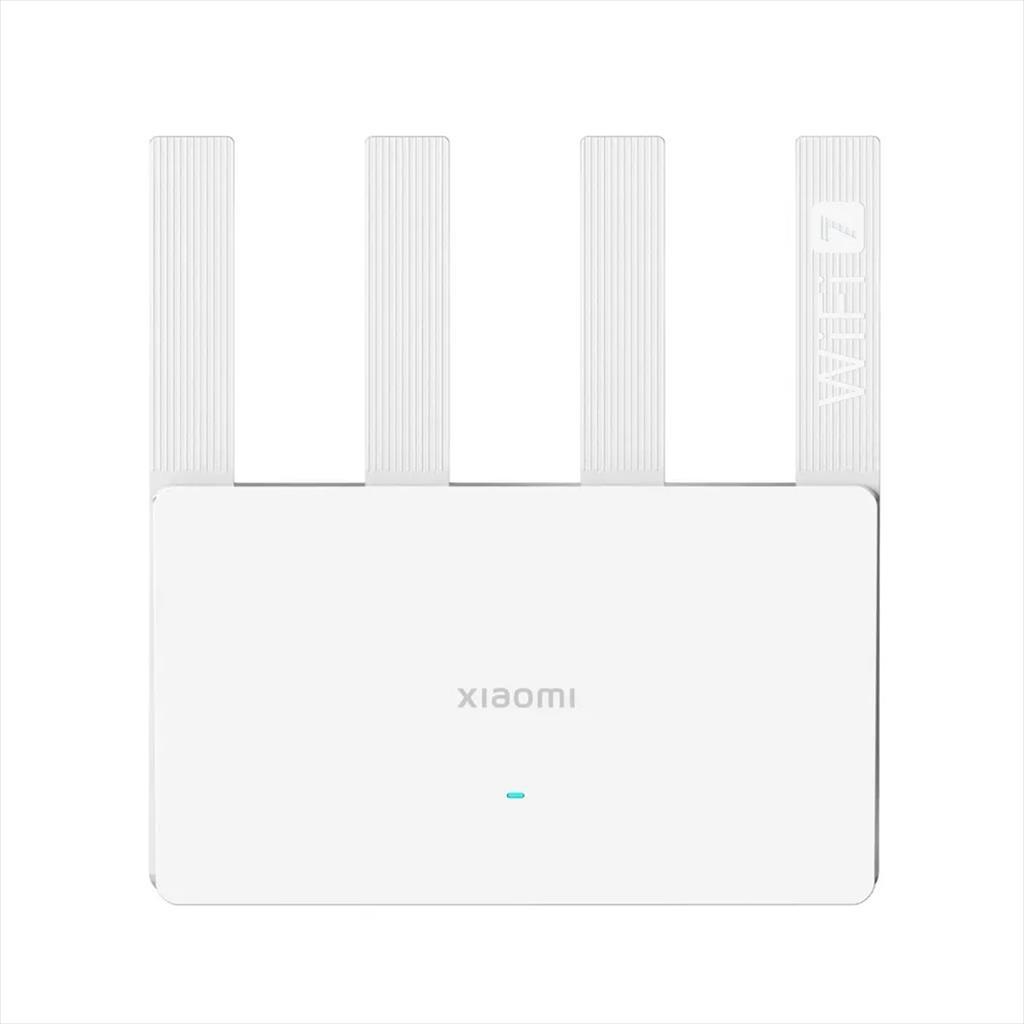

Model name: XIAOMI DUAL BAND Wi-Fi 7 BE3600

Specifications:

• Product colour: White
• Hardware configuration:
  • 2.4G Wi-Fi: 2×2 (Supports up to IEEE 802.11be protocol. The theoretical maximum rate is 688 Mbps.)
  • 5G Wi-Fi: 2×2 (Supports up to IEEE 802.11be protocol. The theoretical maximum rate is 2882 Mbps.)
• Antennas: 4× high-gain antennas
• Heat dissipation: Natural heat dissipation
• Total ports:
  • 1× 10/100/1000/2500Mbps WAN/LAN auto-sensing port
  • 3× 10/100/1000Mbps WAN/LAN auto-sensing port
• LED indicator light: Single light
• System reset button: ×1
• Mesh networking button: ×1
• Power input port: ×1
• Protocol standards: IEEE 802.11a/b/g/n/ac/ax/be, IEEE 802.3/3u/3ab/3bz
• Wireless specifications:
  • Dual-band: 2.4 GHz, 5 GHz
  • Modulation:
    • 11b: DSSS: DBPSK(1 Mbps), DQPSK (2 Mbps), CCK (5.5/11 Mbps)
    • 11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16 QAM (24/36 Mbps), 64 QAM (48/54 Mbps)
    • 11n: MIMO-OFDM: BPSK, QPSK, 16 QAM, 64 QAM. Data rate: MCS0-MCS15
    • 11ac: MIMO-OFDM: BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM
    • 11ax: MIMO-OFDMA: BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM
    • 11be: MIMO-OFDMA: BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM
  • Data rates: MCS0-MCS13 (supports 2 streams)
• Software specifications:
  • Operating system: MiWiFi ROM
  • Wi-Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden, Protection against network piggybacking
  • Management applications: Supports web access and Xiaomi Home app (Android, iOS)
• Working Environment:
  • Operating temperature: 0–40℃
  • Operating humidity: 10–90% RH (non-condensing)
  • Storage temperature: -40–70℃
  • Storage humidity: 5–90% RH (non-condensing)
