Model Name: BENQ PROJECTOR MW560

Specification

• Display
• Brightness (ANSI lumens): 4000
• Native Resolution: WXGA (1280x800)
• Native Aspect Ratio: 16:10
• Contrast Ratio (FOFO): 20,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Lamp
• Light Source Life:
  • a. Normal 6000 hrs
  • b. ECO 10000 hrs
  • c. SmartEco 10000 hrs
  • d. LampSave 15000 hrs
• Optical
• Throw Ratio: 1.55~1.7
• Zoom Ratio: 1.1x
• Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
• Projection Offset (Full-Height): 100%
• Keystone Adjustment: 1D, Vertical ± 40 degrees
• Picture:
• Picture Modes: 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
• Compatibility
• Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
• Horizontal Frequency: 15K~102KHz

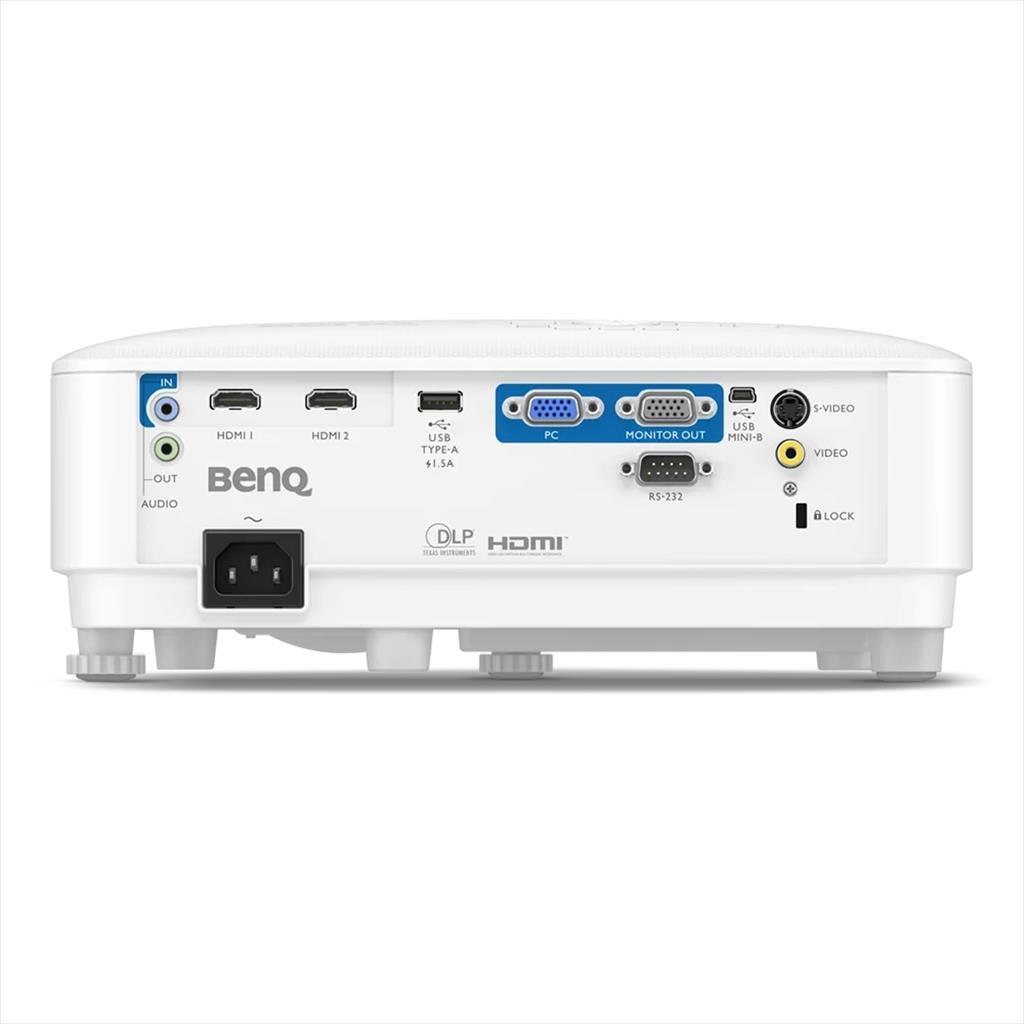

• I/O Interface:
• PC in (D-sub 15pin) (x1)
• Monitor out (D-sub 15pin) (x1)
• Composite Video in (RCA) (x1)
• S-Video in (Mini DIN 4pin) (x1)
• HDMI in (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
• USB Type A (x1)
• USB Type Mini B (x1)
• RS232 in (DB-9pin) (x1)
• Audio
• Speaker (x1), 10W
• Audio in (3.5mm Mini Jack) (x1)
• Audio out (3.5mm Mini Jack) (x1)
• Environment
• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 260W/110V
• Acoustic Noise (Typ./Eco.)(dB): 34/29
• Dimensions (WxHxD) (mm): 296 x120 x221
• Net Weight (kg): 2.3
