Model Name: BENQ MX560

Specification

• Display
• Brightness (ANSI lumens): 4000
• Native Resolution: XGA (1024x768)
• Native Aspect Ratio: 4:3
• Contrast Ratio (FOFO): 20,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Lamp
• Light Source Life:
  • Normal: 6000 hrs
  • ECO: 10000 hrs
  • SmartEco: 10000 hrs
  • LampSave: 15000 hrs
• Optical
• Throw Ratio: 1.96~2.15
• Zoom Ratio: 1.1x
• Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
• Projection Offset (Full-Height): 110%
• Keystone Adjustment: 1D, (Auto) Vertical ± 40 degrees
• Compatibility
• Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
• Horizontal Frequency: 15K~102KHz

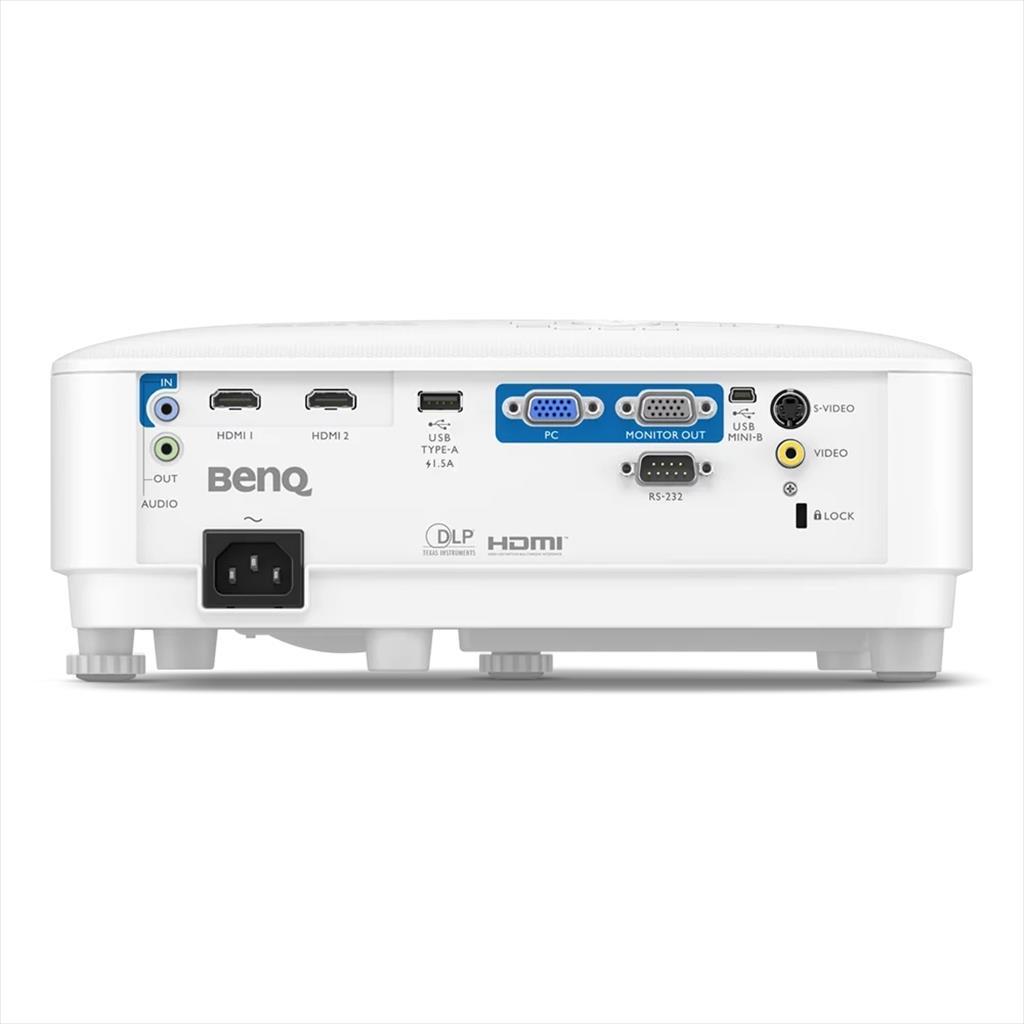

• I/O Interface
• PC in (D-sub 15pin): 1
• Monitor out (D-sub 15pin): 1
• Composite Video in (RCA): 1
• S-Video in (Mini DIN 4pin): 1
• HDMI in: 2 (HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4))
• USB Type A: 1
• USB Type Mini B: 1
• RS232 in (DB-9pin): 1
• Audio
• Speaker: 1 (10W)
• Audio in (3.5mm Mini Jack): 1
• Audio out (3.5mm Mini Jack): 1
• Environment
• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 260W/110V
• Acoustic Noise (Typ./Eco.): 34/29 dB
