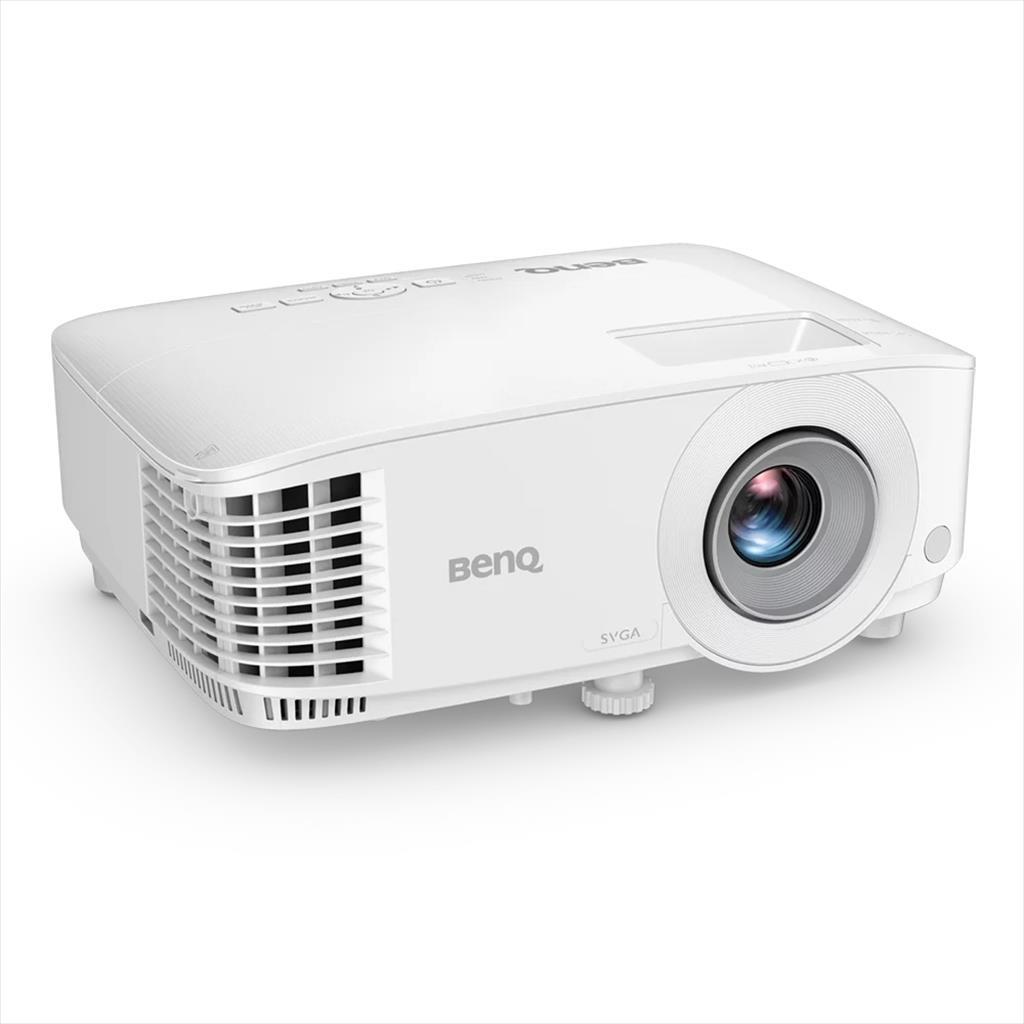

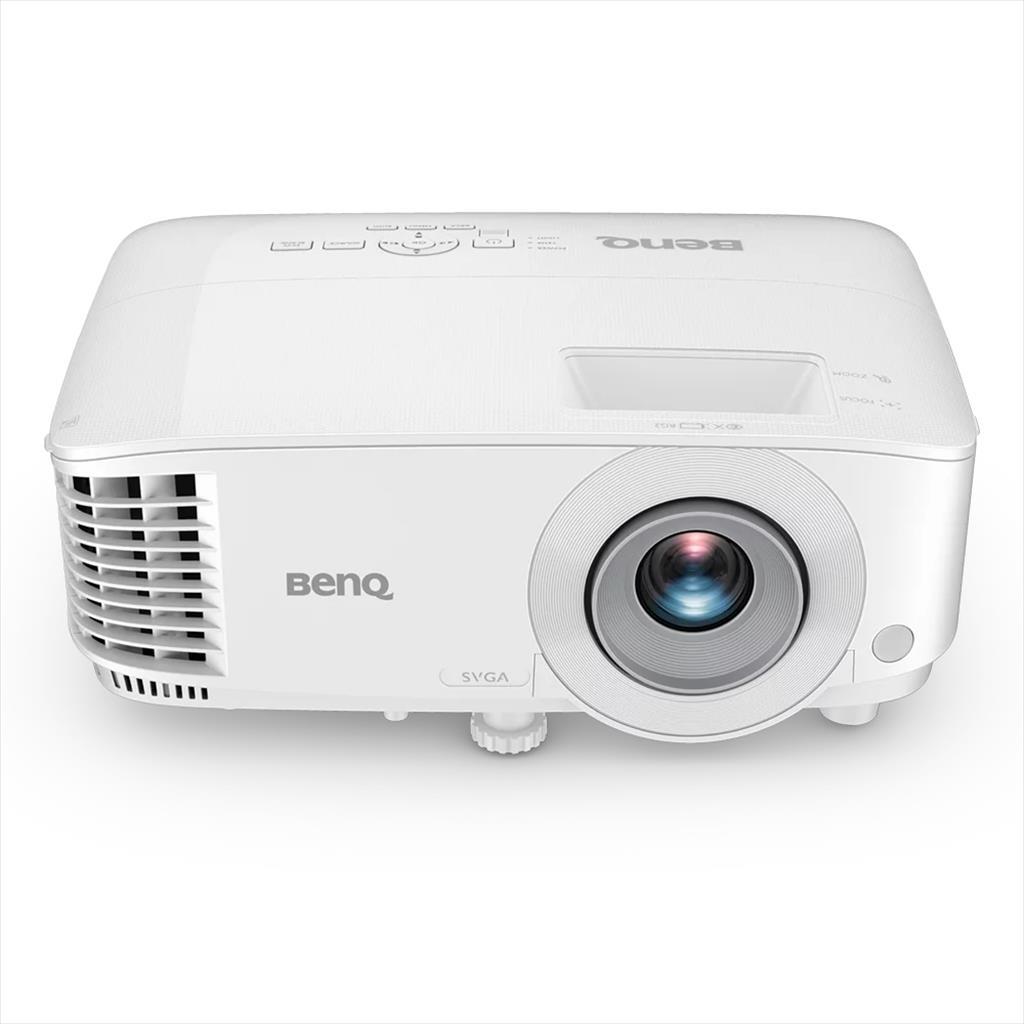

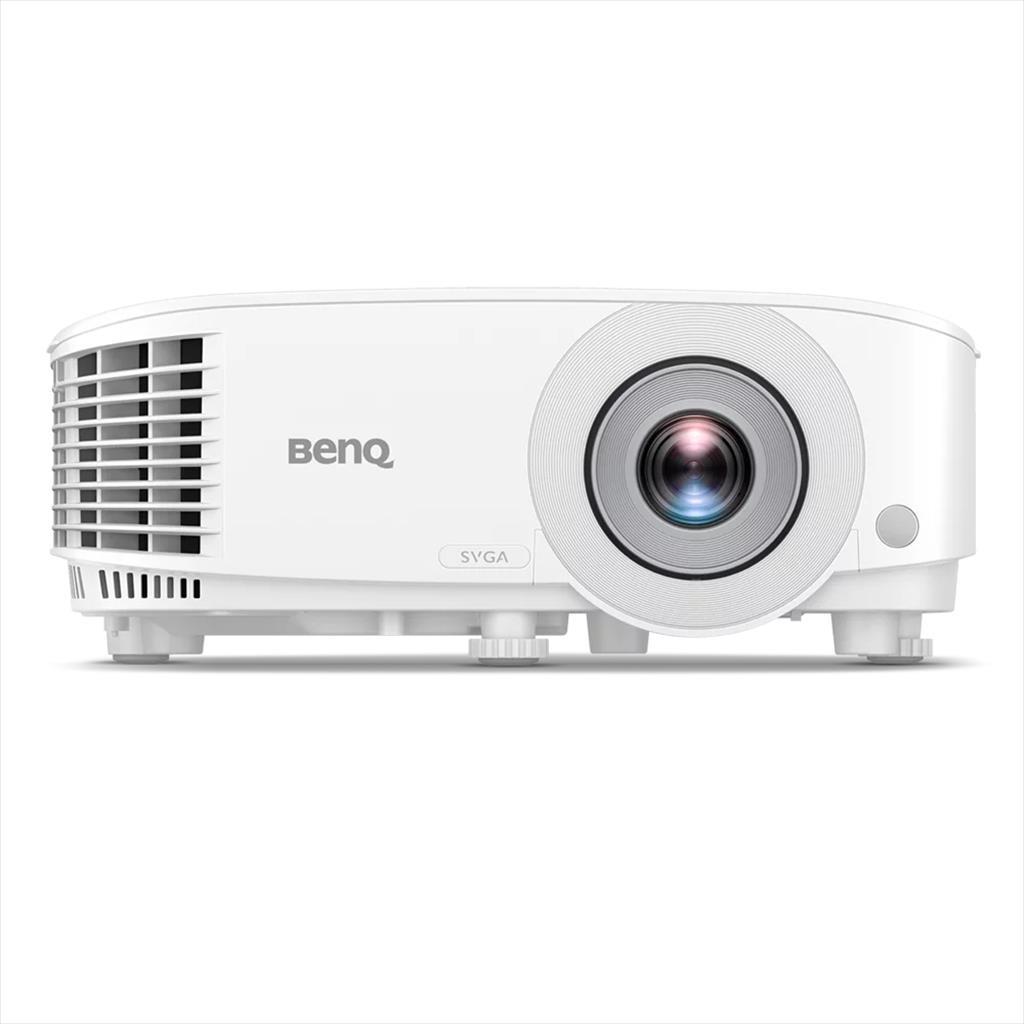

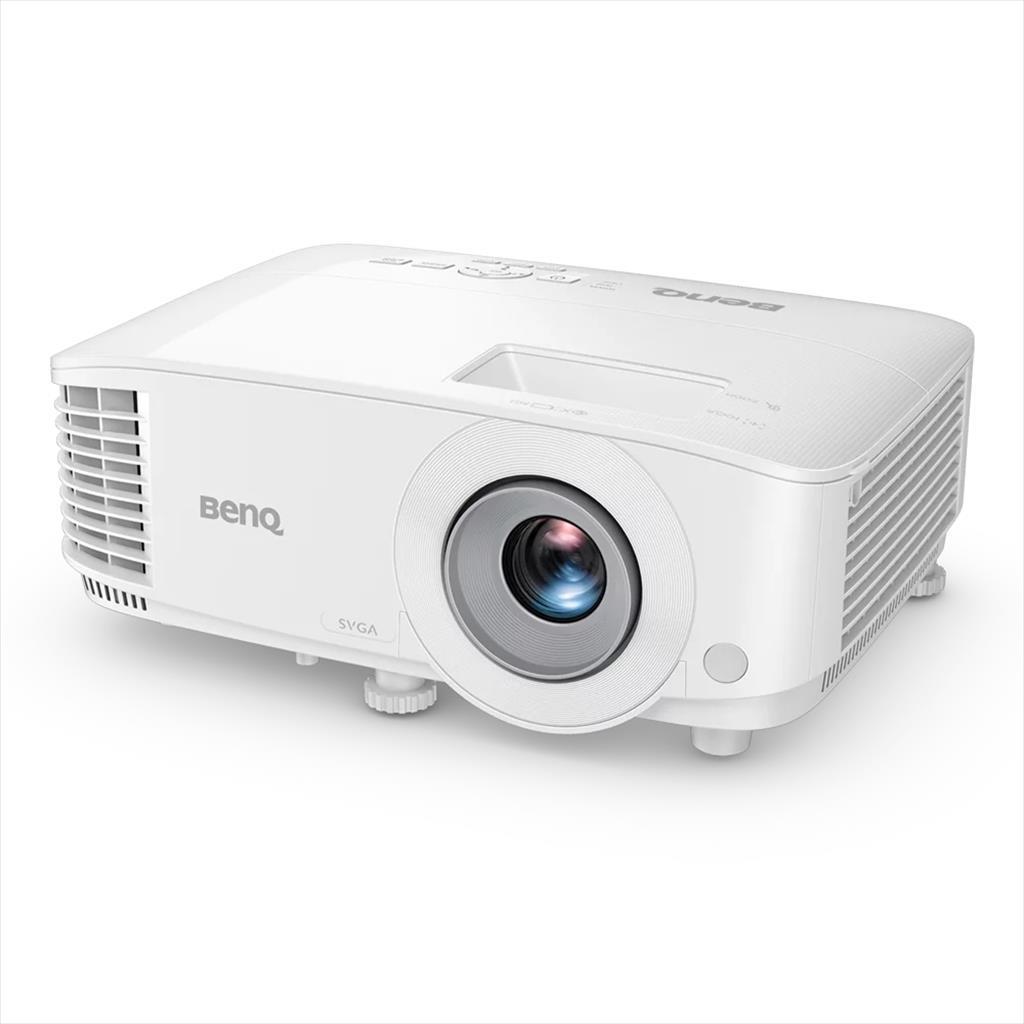

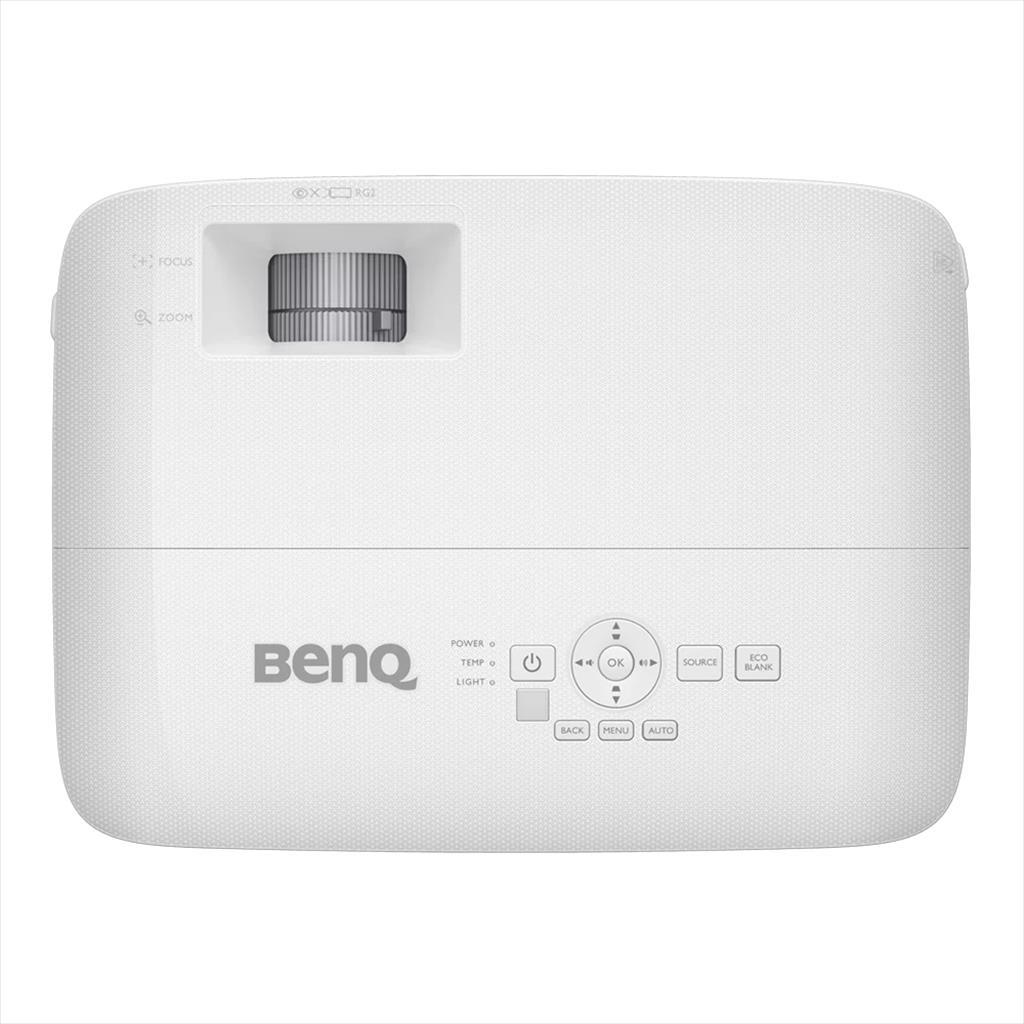

Model Name: BENQ MS560

Specification

• Display Brightness (ANSI lumens): 4000
• Resolution: SVGA (800x600)
• Native Aspect Ratio: 4:3
• Contrast Ratio (FOFO): 20,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Lamp
• Light Source Life: Normal 6000 hrs, SmartEco 10000 hrs, LampSave 15000 hrs, ECO 10000 hrs
• Throw Ratio: 1.96~2.15
• Zoom Ratio: 1.1x
• Lens: F/# = 2.56 ~ 2.68, f=22~24.1mm
• Projection Offset (Full-Height): 110%
• Keystone Adjustment: 1D, (Auto) Vertical ± 40 degrees
• Picture Modes: 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
• Resolution Support: VGA (640x480) to WUXGA_RB (1920x1200) *RB=Reduced blanking
• Horizontal Frequency: 15K~102KHz

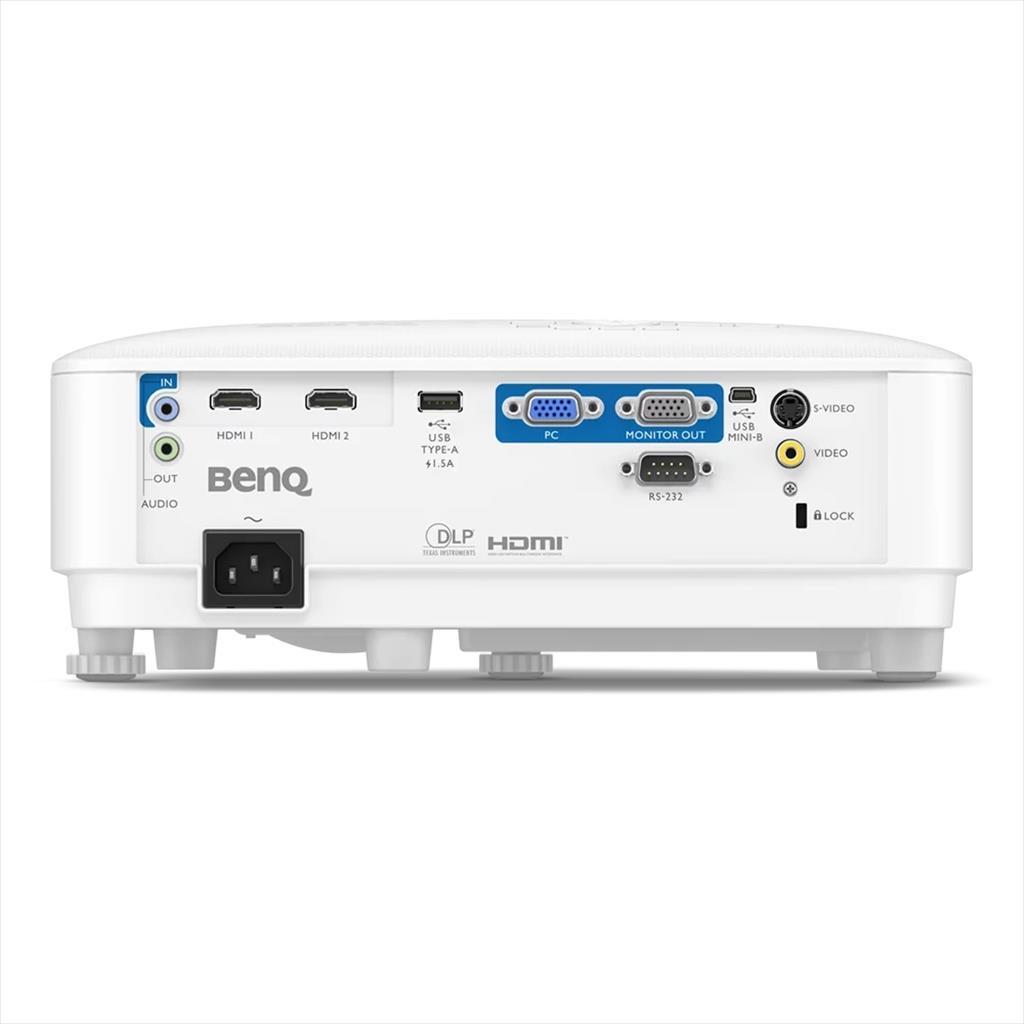

• PC in (D-sub 15pin): (x1)
• Monitor out (D-sub 15pin): (x1)
• Composite Video in (RCA): (x1)
• S-Video in (Mini DIN 4pin): (x1)
• HDMI in: (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
• USB Type A: (x1)
• USB Type Mini B: (x1)
• RS232 in (DB-9pin): (x1)
• Speaker: (x1), 10W
• Audio in (3.5mm Mini Jack): (x1)
• Audio out (3.5mm Mini Jack): (x1)
• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 260W/110V
• Acoustic Noise (Typ./Eco.)(dB): 34/29
