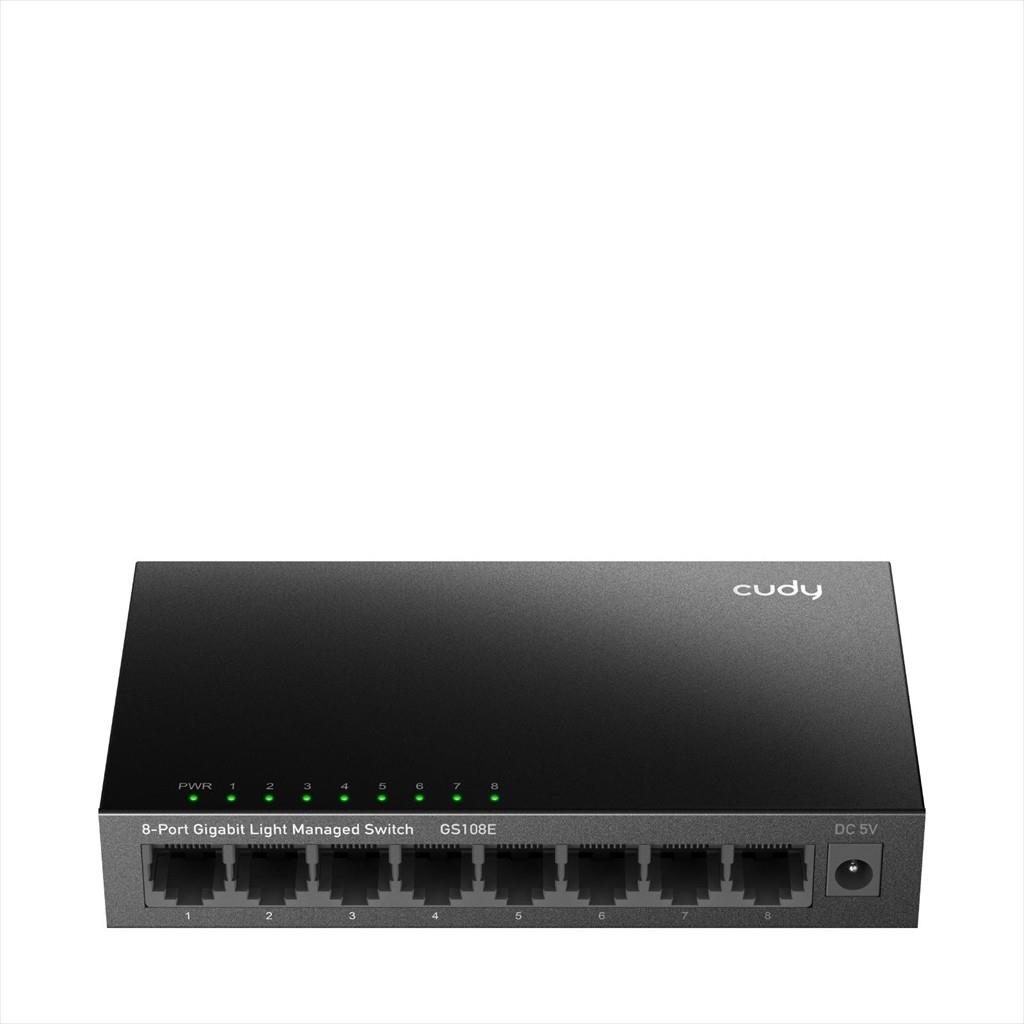

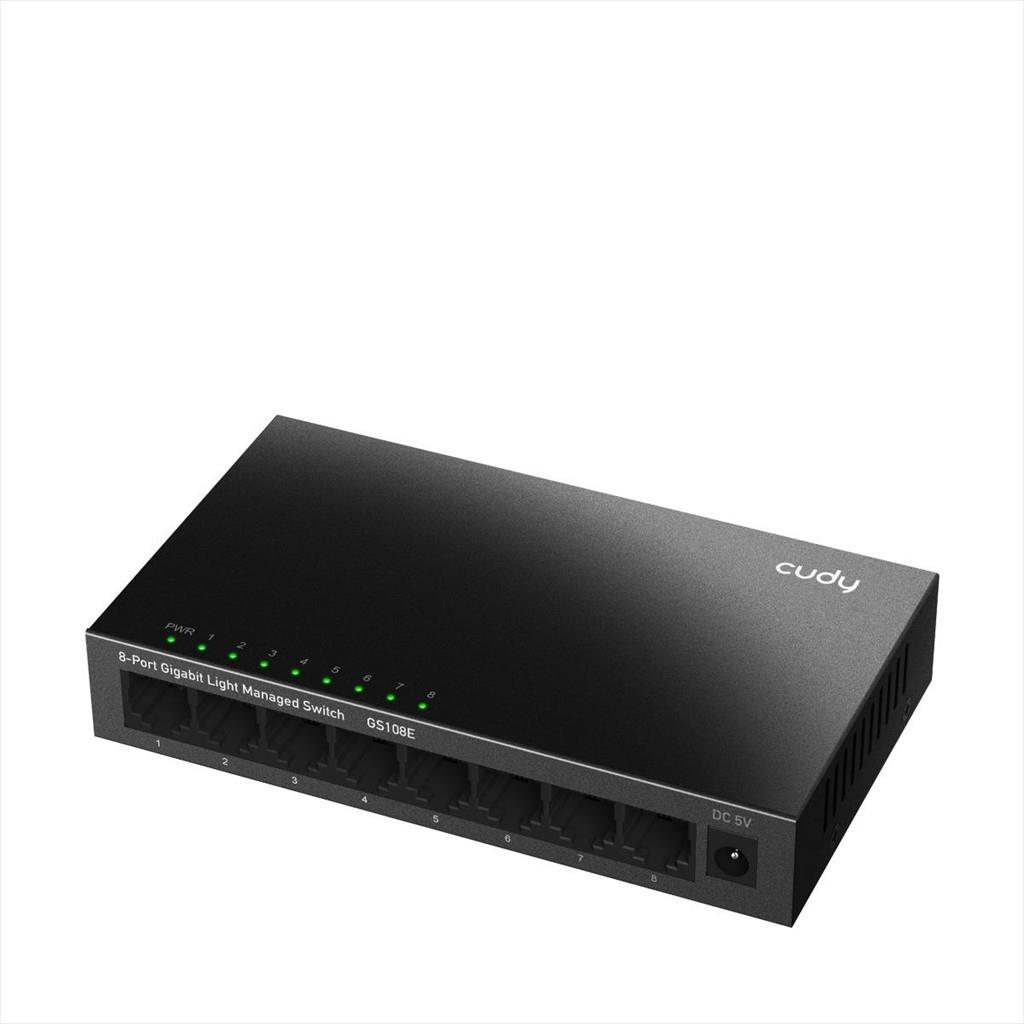

Cudy GS108E 8-Port Gigabit Managed Switch

The Cudy GS108E adds eight Gigabit Ethernet ports to your wired network in a compact metal housing. Manage the switch through its web interface, SNMP, or the Cudy app and cloud control. VLAN and QoS features, port mirroring, static aggregation, DHCP and IGMP snooping, and loop detection and prevention provide options for organizing and monitoring network traffic.

The switch supports desktop or wall-mount installation. With suitable cabling, it supports standard Gigabit connections up to 100 metres and transmission up to 250 metres at 10 Mbps when the port speed is set to 10 Mbps in the software.

Specifications

• Brand: Cudy
• Model: GS108E
• Ports: 8 × Gigabit Ethernet (10/100/1000 Mbps)
• Management: Web management, SNMP, Cudy app and cloud control
• VLAN: 802.1Q, MTU, and port-based; up to 4096 VLANs
• QoS: 802.1p, DSCP, and port-based
• Features: Port mirroring, static aggregation, DHCP snooping, IGMP snooping, loop detection and prevention
• MAC address table: 8192 entries
• Maximum switching capacity: 16 Gbps
• Maximum forwarding rate: 11.904 Mpps
• Jumbo frame: 15 KB
• Packet buffer: 4 Mbit
• Maximum copper distance: 100 m at 10 Mbps over Cat 3 or higher; 100 m at 100 Mbps over Cat 5 or higher; 100 m at Gigabit over Cat 5e or higher; 150 m at Gigabit over Cat 6 or higher
• Extended distance: Up to 250 m at 10 Mbps over Cat 5e or higher, when the port speed is set to 10 Mbps in the software
• Housing: Metal
• Installation: Desktop or wall-mount
• Dimensions (W × D × H): 138 × 78 × 25 mm (5.43 × 3.07 × 0.98 in)
