Extralink 12U 600 × 600 AZH Black Wall-Mounted Rack Cabinet

The Extralink AZH is a 12U wall-mounted rack cabinet designed for organizing and protecting networking, telecommunications, and server equipment. Its closed steel frame, glass-and-steel front door, removable panels, and swing design provide convenient access while maintaining a secure and professional installation.

Key Features

• 12U rack capacity: Provides space for standard 19-inch rack-mounted equipment.
• Wall-mounted design: Suitable for offices, server rooms, network installations, and equipment closets.
• Swing-type construction: Allows convenient access to installed equipment and cabling.

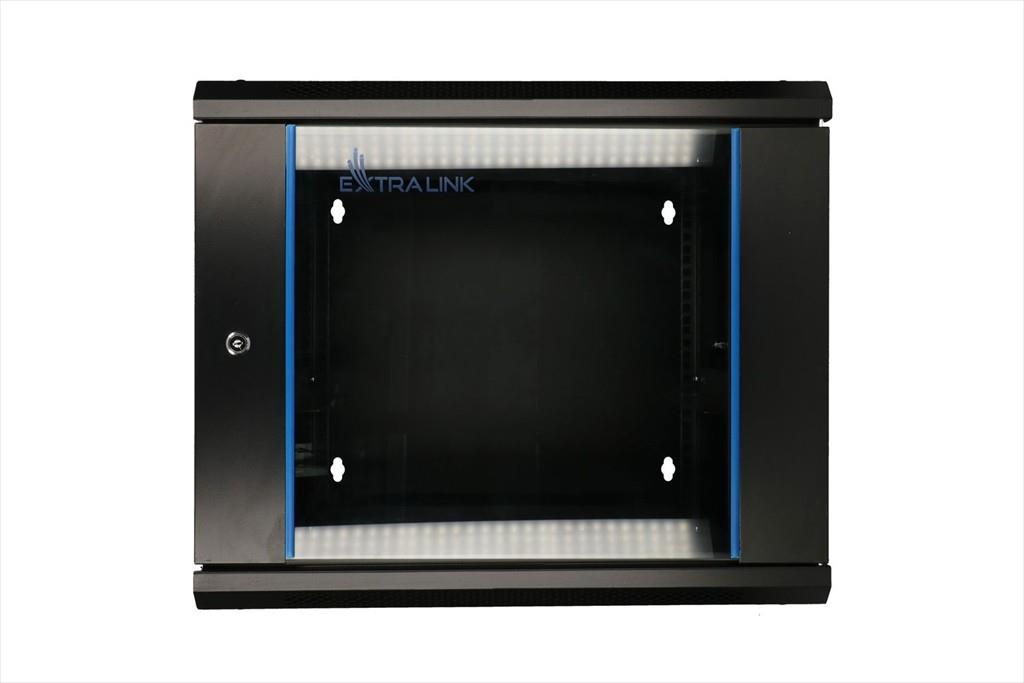

• Glass-and-steel front door: Enables visual monitoring while helping protect the equipment.
• Lockable front door: Helps restrict unauthorized access.
• Removable front door: Simplifies equipment installation and maintenance.
• Removable side panels: Provide easier access to the sides of the rack.
• Steel rear and side panels: Offer a durable and protective cabinet structure.
• Rack rails included: Supports the installation of compatible rack-mounted devices.
• Maximum load capacity: Supports equipment weighing up to 60 kg.

Construction and Access

The cabinet features a closed steel frame with a glass-and-steel front door. The front door can be removed when necessary and includes a key lock for added security. Both side panels are removable and fitted with key locks, allowing convenient servicing while helping prevent unauthorized access.

Rack Compatibility

With a 12U capacity and a standard 19-inch rack format, the cabinet is suitable for installing compatible network switches, patch panels, routers, power distribution units, cable management accessories, and other rack-mounted equipment.

Technical Specifications

• Brand: Extralink
• Model: 12U 600 × 600 AZH
• Product type: Wall-mounted rack cabinet
• Cabinet design: Swing type
• Rack capacity: 12U
• Rack format: 19-inch
• Product colour: Black
• Frame type: Closed
• Material: Glass and steel
• Front door construction: Glass and steel
• Front door: Removable and lockable
• Back door construction: Steel
• Side panel construction: Steel
• Side panels: Removable, included, and lockable
• Rack rails: Included
• Maximum weight capacity: 60 kg
• Width: 600 mm
• Height: 640 mm
• Depth: 750 mm
• Nominal rack size: 48.3 cm (19 inches)
• Front door key lock: Yes
• Side panel key locks: Yes

Summary

The Extralink 12U 600 × 600 AZH is a durable black wall-mounted rack cabinet with a 19-inch mounting format, 60 kg load capacity, lockable removable panels, and included rack rails. Its swing-type design and accessible construction make it suitable for securely housing networking and telecommunications equipment.
