TXB201 PCIe 3.0 x8 to 4-Port M.2 NVMe Expansion Card

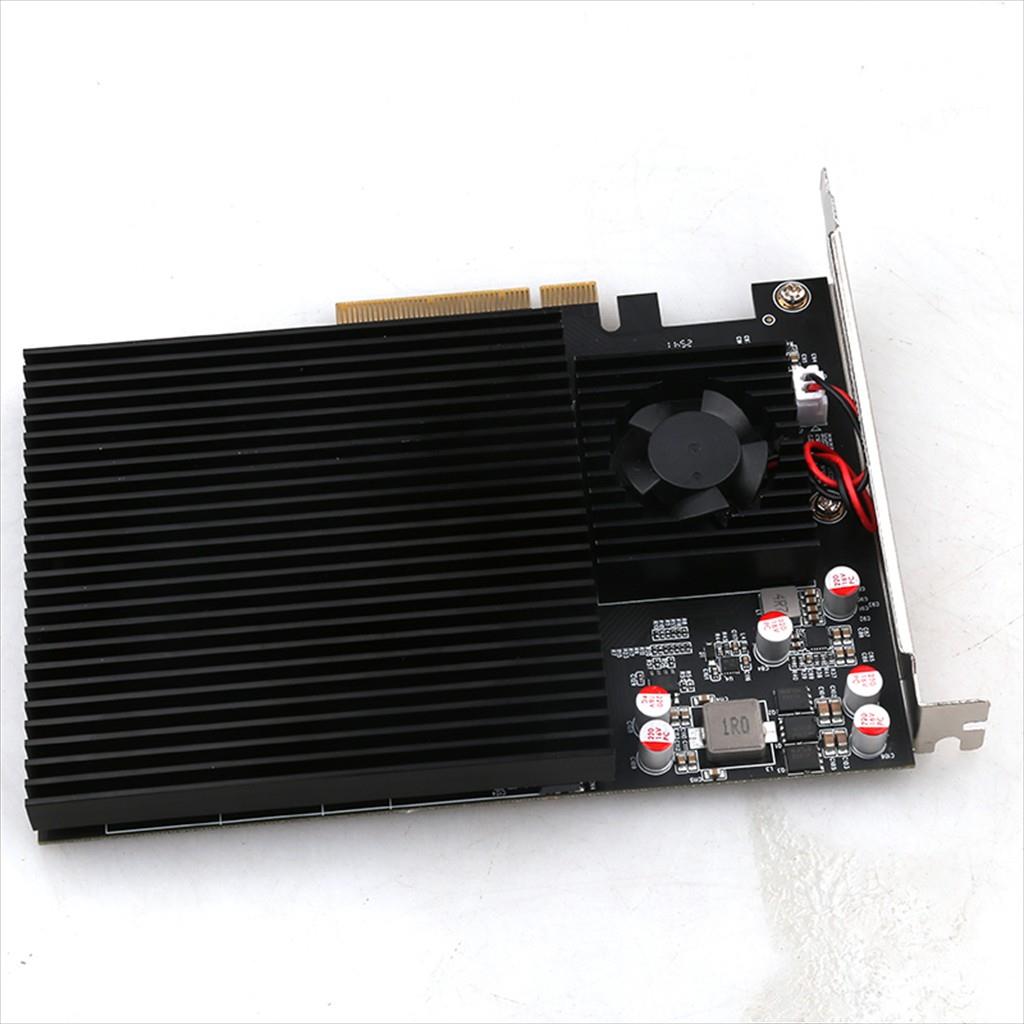

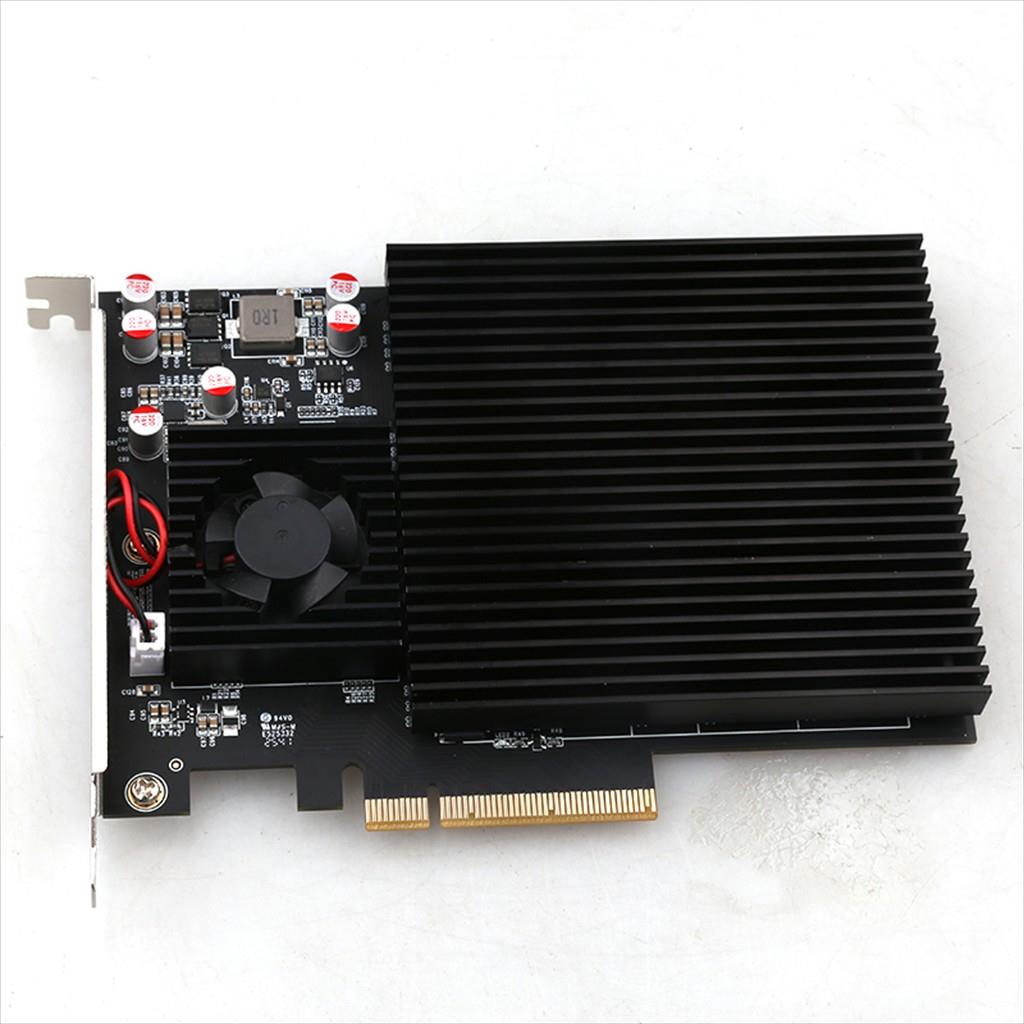

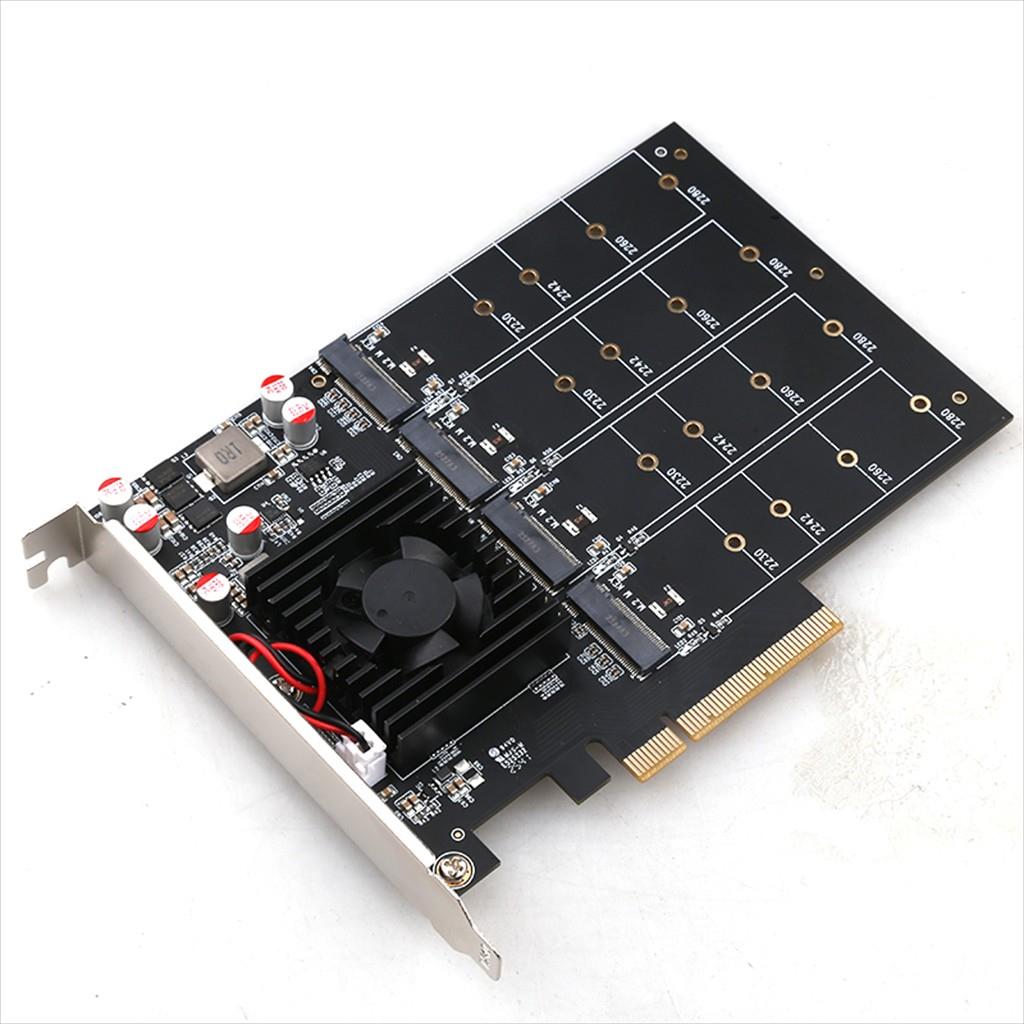

The TXB201 PCIe 3.0 x8 to 4-Port M.2 NVMe Expansion Card adds four M.2 PCIe NVMe SSD connections to a desktop computer through one PCI Express x8 slot. It uses the ASMedia ASM2824 chipset and supports several common M.2 drive lengths, including 2230, 2242, 2260, and 2280.

Key Features

• Supports up to four M.2 PCIe NVMe solid-state drives.
• Provides four M.2 M-Key slots.
• Uses a PCI Express 3.0 x8 host interface.
• Supports a maximum transmission rate of up to 32Gbps.
• Equipped with the ASMedia ASM2824 chipset.
• Compatible with M.2 2230, 2242, 2260, and 2280 drive lengths.
• Suitable for expanding high-speed storage in desktop computers and workstations.
• Allows multiple NVMe SSDs to be connected through a single expansion card.

Technical Specifications

• Model: TXB201
• Product type: Quad M.2 NVMe PCIe expansion card
• Host interface: PCI Express 3.0 x8
• Number of M.2 slots: 4
• M.2 interface: PCIe NVMe
• M.2 key type: M-Key
• Chipset: ASMedia ASM2824
• Maximum transmission rate: Up to 32Gbps
• Supported drive heights: 2230, 2242, 2260, and 2280
• Supported storage type: M.2 NVMe solid-state drives

Compatibility

The TXB201 is designed for M.2 PCIe NVMe SSDs with an M-Key connector. It is not intended for M.2 SATA drives unless specifically supported by the manufacturer. The card supports M.2 drive lengths of 2230, 2242, 2260, and 2280.

The computer must provide a compatible PCI Express x8 slot. The card may also be installed in a larger PCI Express slot, such as an x16 slot, when supported by the motherboard.
