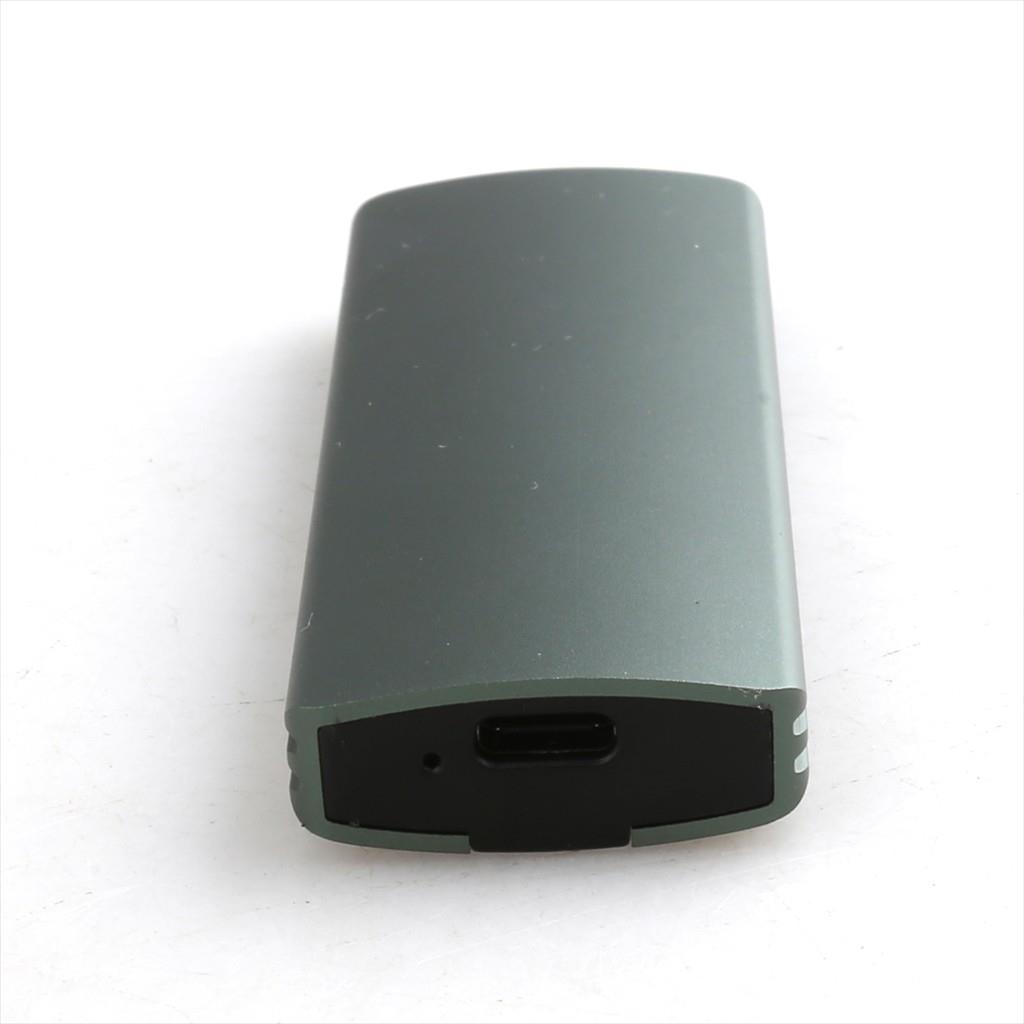

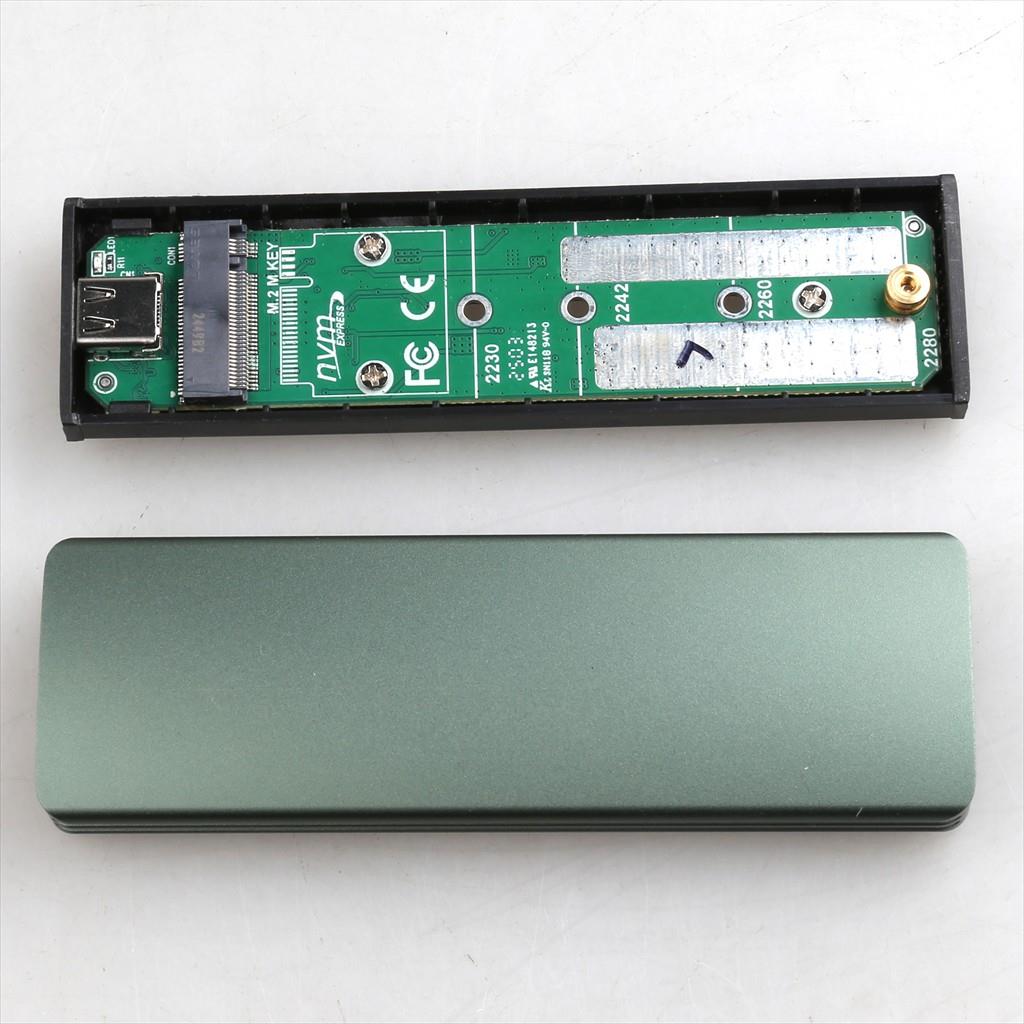

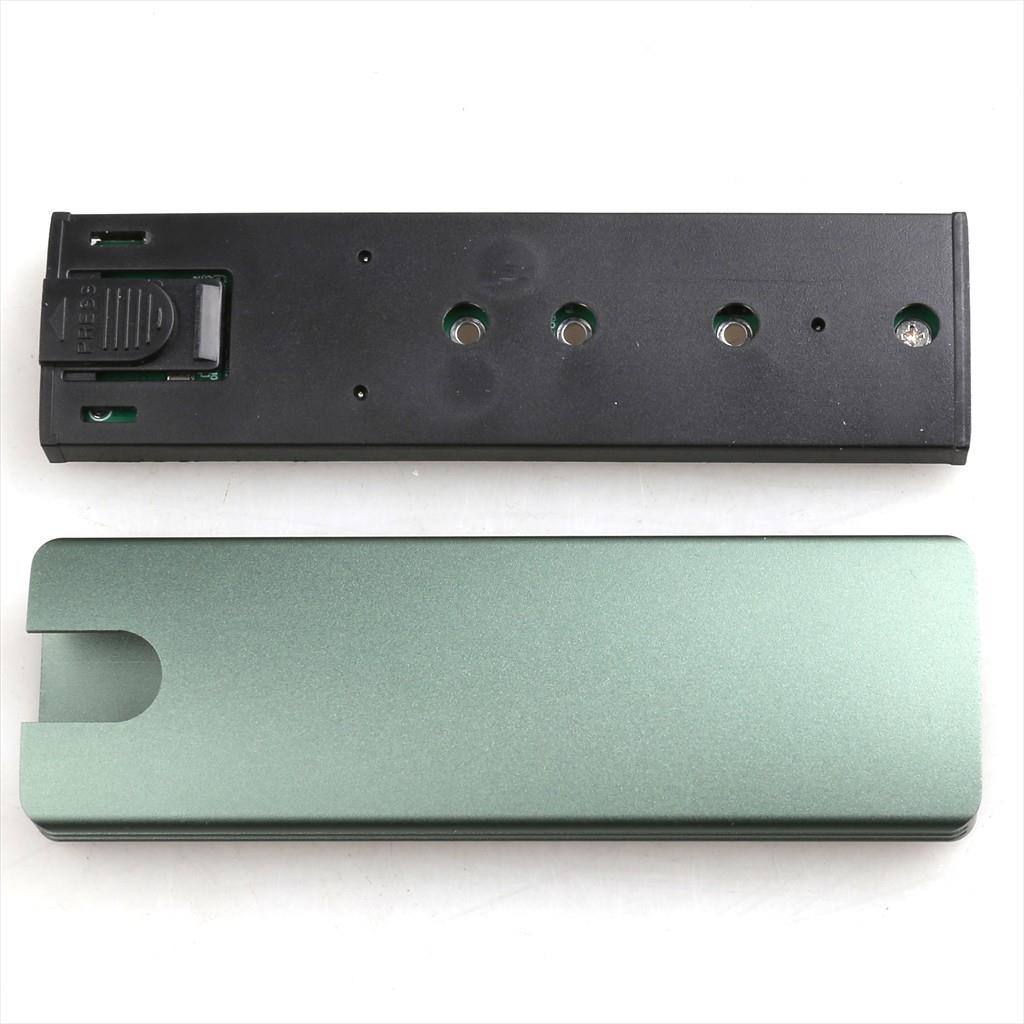

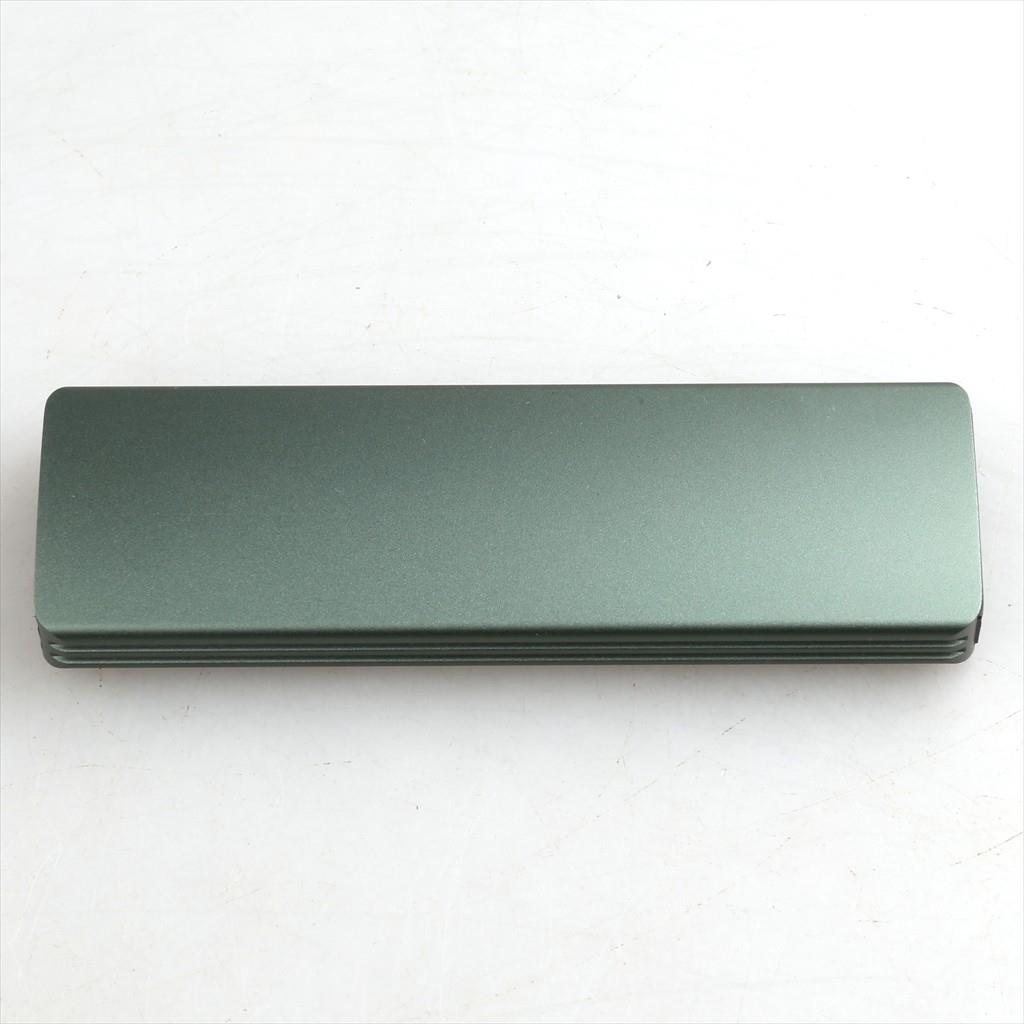

DIEWU TXD187 USB 3.2 Gen 2 Type-C M.2 NVMe 2280 Enclosure

The DIEWU TXD187 is an external enclosure designed for M.2 NVMe 2280 solid-state drives. It uses the JMicron JMS583 chipset and connects through a USB Type-C interface with USB 3.2 Gen 2 support, providing high-speed external storage connectivity.

Technical Specifications

• Brand: DIEWU
• Model Number: TXD187
• Product Type: External M.2 NVMe SSD enclosure
• Supported Drive Form Factor: M.2 2280
• Drive Width: 22mm
• Compatible Drive Types: M.2 PCIe, NVMe, M-Key, NGFF
• Chipset: JMicron JMS583
• Host Interface: USB Type-C
• USB Standard: USB 3.2 Gen 2
• Maximum Interface Speed: Up to 10Gbps

Features

• Converts an M.2 NVMe 2280 SSD into a portable external drive.
• Supports PCIe/NVMe M-Key and compatible NGFF M.2 drives.
• Uses the JMicron JMS583 high-speed bridge chipset.
• Equipped with a USB Type-C interface.
• Supports USB 3.2 Gen 2 transfer speeds of up to 10Gbps.

Compatibility

The enclosure is designed for 22mm-wide M.2 2280 PCIe NVMe solid-state drives. SATA-only M.2 drives are not supported unless specifically indicated by the manufacturer.
