PAD THERMAL ARCTIC TP-4, 100 x 100 x 1.5 mm, ACTPD00064A

Цена со ДДВ: 560 ден.
Шифра: 36825
Баркод: 4895265001260
Производител: ARCTIC
Гаранција: 0 дена
залиха: има на залиха
Спецификација

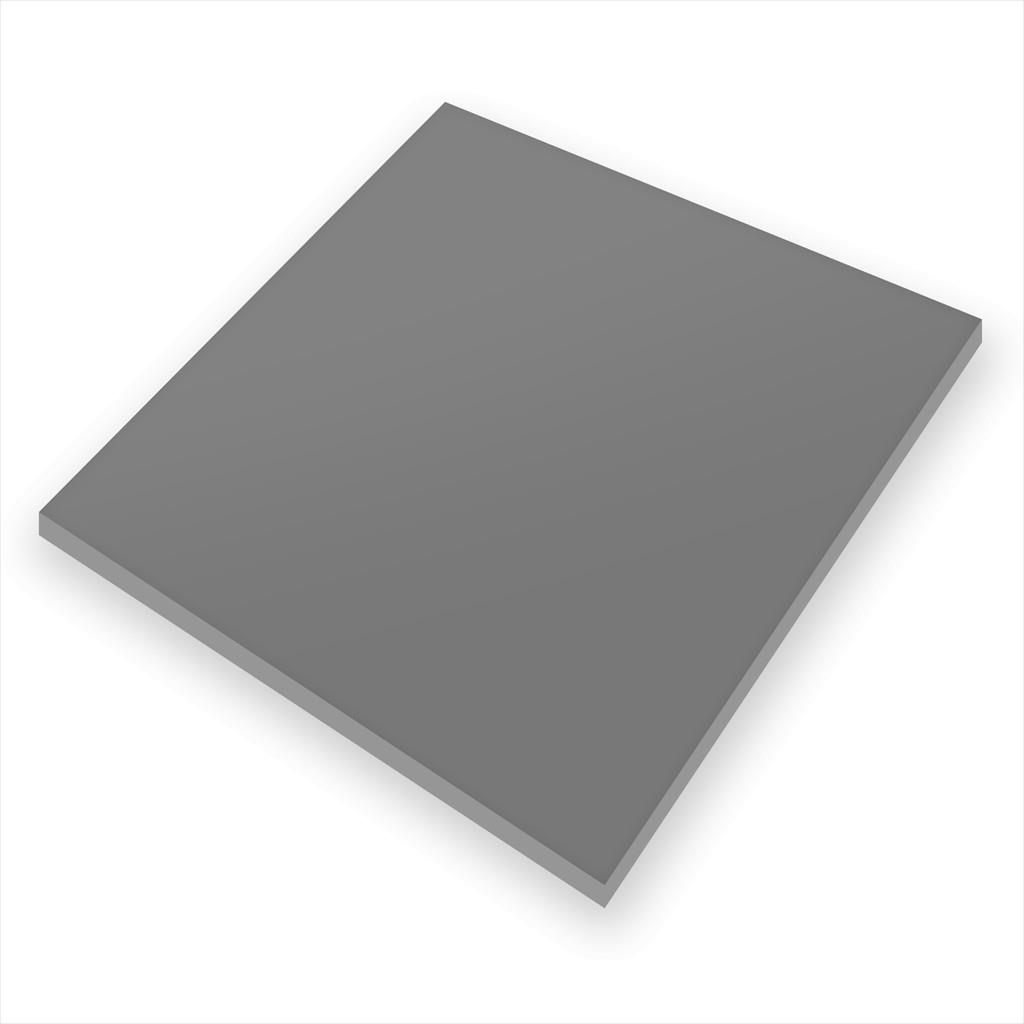

Model Name: ARCTIC TP-4 Premium Performance Thermal Pad, 100 × 100 × 1.5 mm

Ultra-soft silicone-based thermal pad · 100 × 100 × 1.5 mm · Grey
Highly compressible thermal interface material designed to fill uneven surfaces and air gaps while providing efficient heat transfer

Features

  • High-performance silicone-based thermal pad for efficient heat transfer
  • Ultra-soft construction adapts to uneven chip and component surfaces
  • Highly compressible material helps reduce thermal resistance
  • Can compensate for height differences of up to 40%
  • Provides reliable contact across gaps without placing excessive stress on sensitive components
  • Suitable for RAM, GPUs, laptops, game consoles, M.2 SSDs, and other electronic components
  • Electrically insulating construction for safer component-level thermal management

Specification

  • Model name: ARCTIC TP-4 Premium Performance Thermal Pad
  • Product type: Silicone-based thermal pad
  • Dimensions: 100 × 100 × 1.5 mm
  • Length: 100 mm
  • Width: 100 mm
  • Thickness: 1.5 mm
  • Colour: Grey
  • Hardness: 50 Shore OO
  • Continuous use temperature: -40 °C to 150 °C
  • Specific gravity: 3.4 g/cm³
  • Compression ratio: 47% at 50 psi
  • Tensile strength: 1 psi
  • Breakdown voltage: 8.62 kV/mm
  • Dielectric constant: 7.2 at 1 MHz
  • Volume resistance: 1.52 × 10¹² Ω·cm
  • Flammability rating: UL94 V-0
