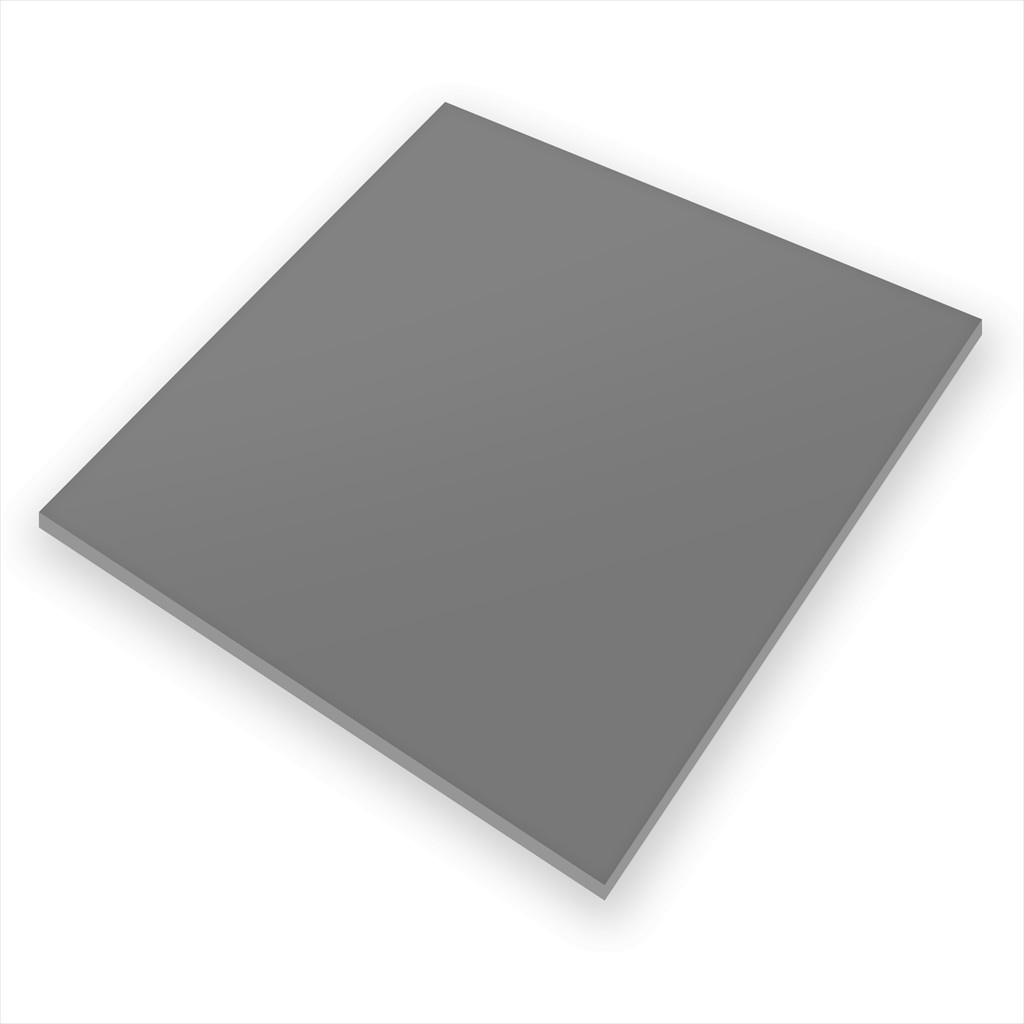

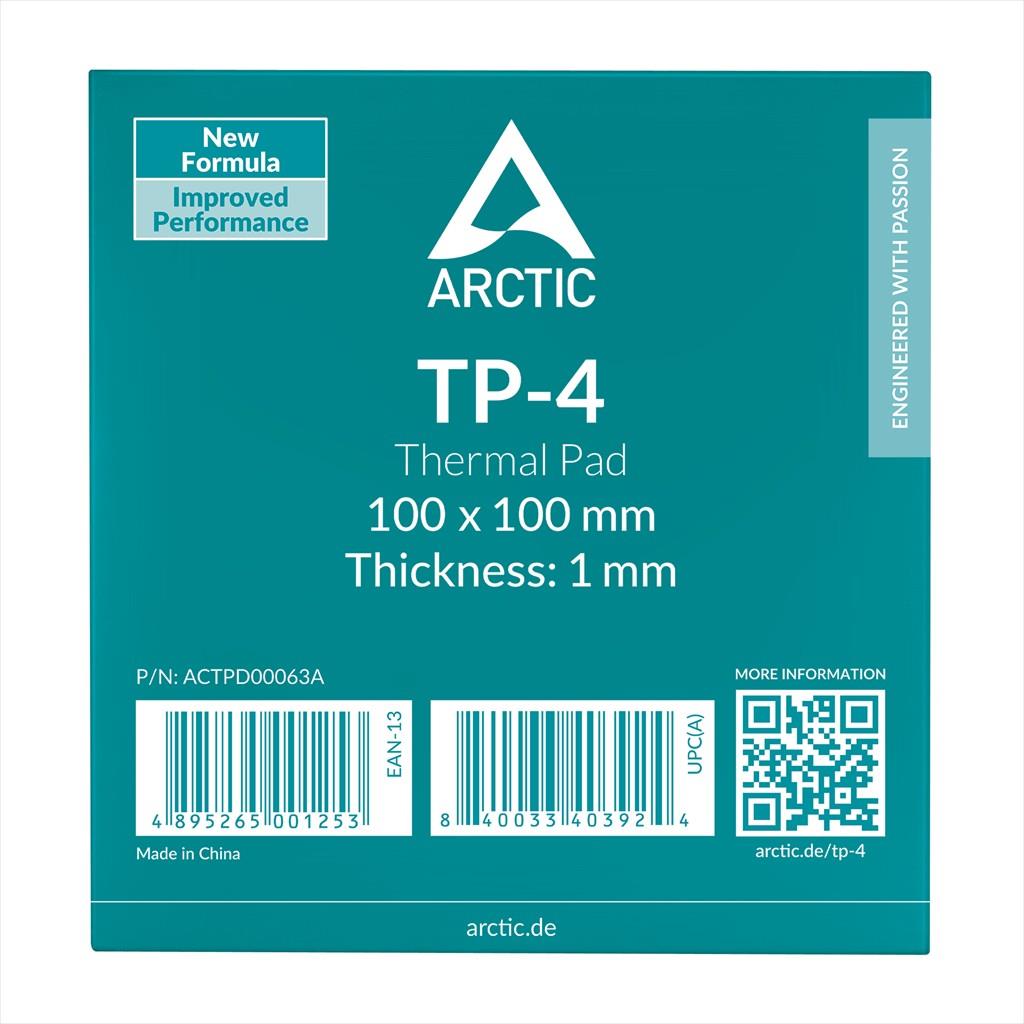

PAD THERMAL ARCTIC TP-4, 100 x 100 x 1.0 mm, ACTPD00063А

Цена со ДДВ: 510 ден.
Шифра: 36824
Баркод: 4895265001253
Производител: ARCTIC
Гаранција: 0 дена
залиха: Наскоро
Спецификација

Model Name: ARCTIC TP-4 Thermal Pad 100 × 100 × 1 mm — ACTPD00063A

TP-4 silicone thermal pad · 100 × 100 mm · 1.0 mm thickness
Non-conductive and highly compressible thermal interface pad for GPUs, SSDs, laptops, consoles, and other electronic components

Features

  • Silicone-based thermal pad designed for efficient heat transfer
  • Soft, highly compressible material adapts to component and heatsink irregularities
  • Compresses by up to 60%, depending on mounting pressure
  • Electrically non-conductive for safer use around sensitive electronic components
  • High dielectric strength with a breakdown voltage of 8620 V/mil
  • Suitable for filling thermal gaps between components and cooling surfaces
  • Can be used on GPU VRAM and VRM components, M.2 SSDs, and motherboards
  • Compatible with gaming consoles, laptops, and other electronic devices
  • Multiple pads may be stacked for applications requiring up to 2.0 mm thickness
  • Designed for reliable operation across a broad temperature range

Specification

  • Model name: ARCTIC TP-4
  • Model number: ACTPD00063A
  • Product type: Thermal interface pad
  • Material: Silicone-based thermal pad
  • Dimensions: 100 × 100 mm
  • Thickness: 1.0 mm
  • Hardness: 50 Shore OO
  • Compression: Up to 60%, depending on mounting pressure
  • Electrical properties: Non-conductive
  • Breakdown voltage: 8620 V/mil
  • Operating temperature range: −40 °C to 200 °C
  • Maximum stacked thickness: Up to 2.0 mm
  • Compatible applications: GPU VRAM, GPU VRM, M.2 SSDs, motherboards, gaming consoles, laptops, and other electronic components
