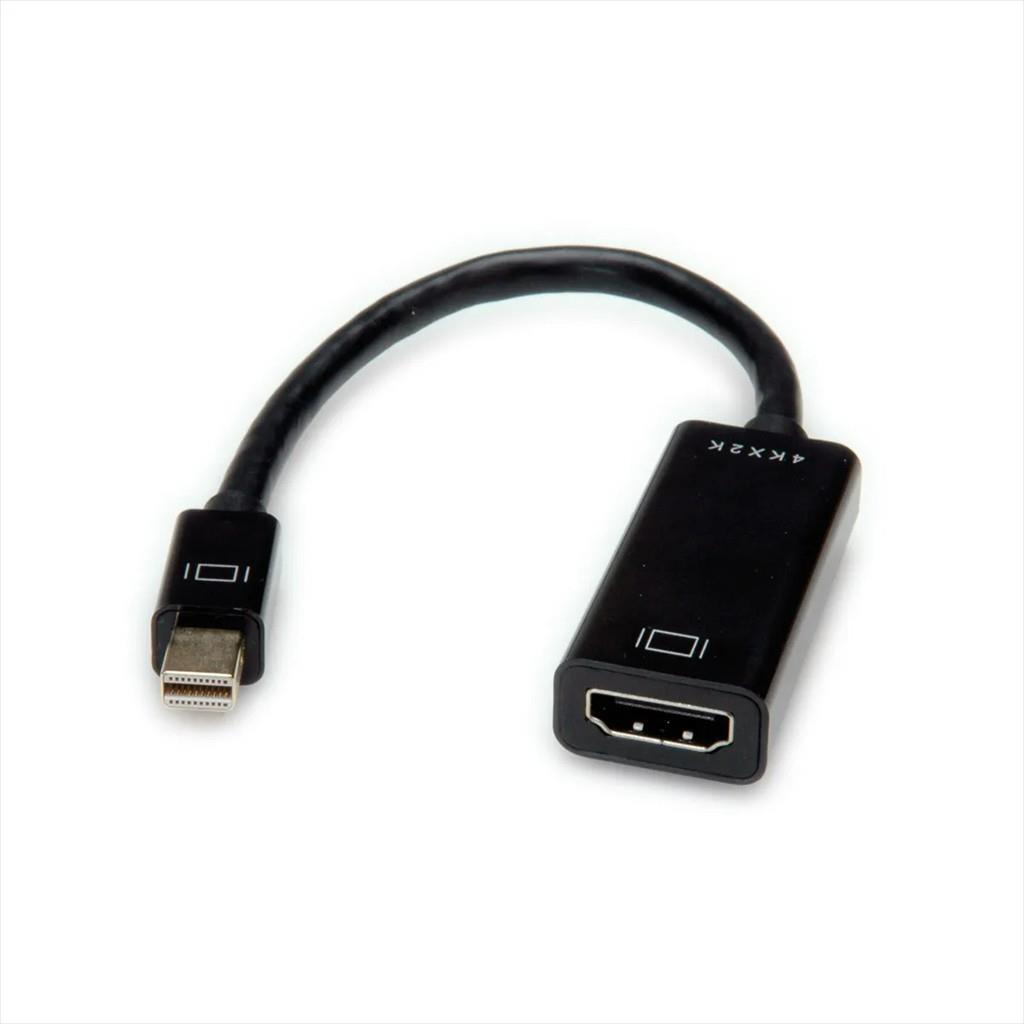

Features

• Converts Mini DisplayPort output to HDMI input
• Supports a maximum resolution of 3840 × 2160 at 30 Hz
• Suitable for 4K and Full HD display applications
• DisplayPort Version 1.2 supports increased resolutions, higher refresh rates and greater colour depth
• Passive adapter design
• Unidirectional operation only
• Mini DisplayPort plug must be connected to the source device, such as a graphics card or computer
• HDMI socket connects to the peripheral device or display
• Compact 0.15 m cable design

Specifications

• Product type: Mini DisplayPort to HDMI cable adapter
• Conversion direction: Mini DisplayPort to HDMI
• DisplayPort version: 1.2
• Maximum resolution: 3840 × 2160 at 30 Hz
• Cable length: Approximately 0.15 m
• Side 1 connection: Mini DisplayPort male
• Side 1 connector type: Mini DisplayPort
• Side 1 connector gender: Male
• Side 2 connection: HDMI female
• Side 2 connector type: HDMI Type A
• Side 2 connector gender: Female
• Active/passive: Passive
• Area of application: External
• Dimensions (H × W × D): 14 × 44 × 44 mm
• Directionality: One-way operation only; Mini DisplayPort source to HDMI display
• External power required: No external power requirement specified

Connection Notice

This adapter works only in one direction. Connect the Mini DisplayPort male plug to the source device and connect an HDMI cable from the HDMI female socket to the display or other HDMI peripheral. HDMI-to-Mini DisplayPort conversion is not supported.
