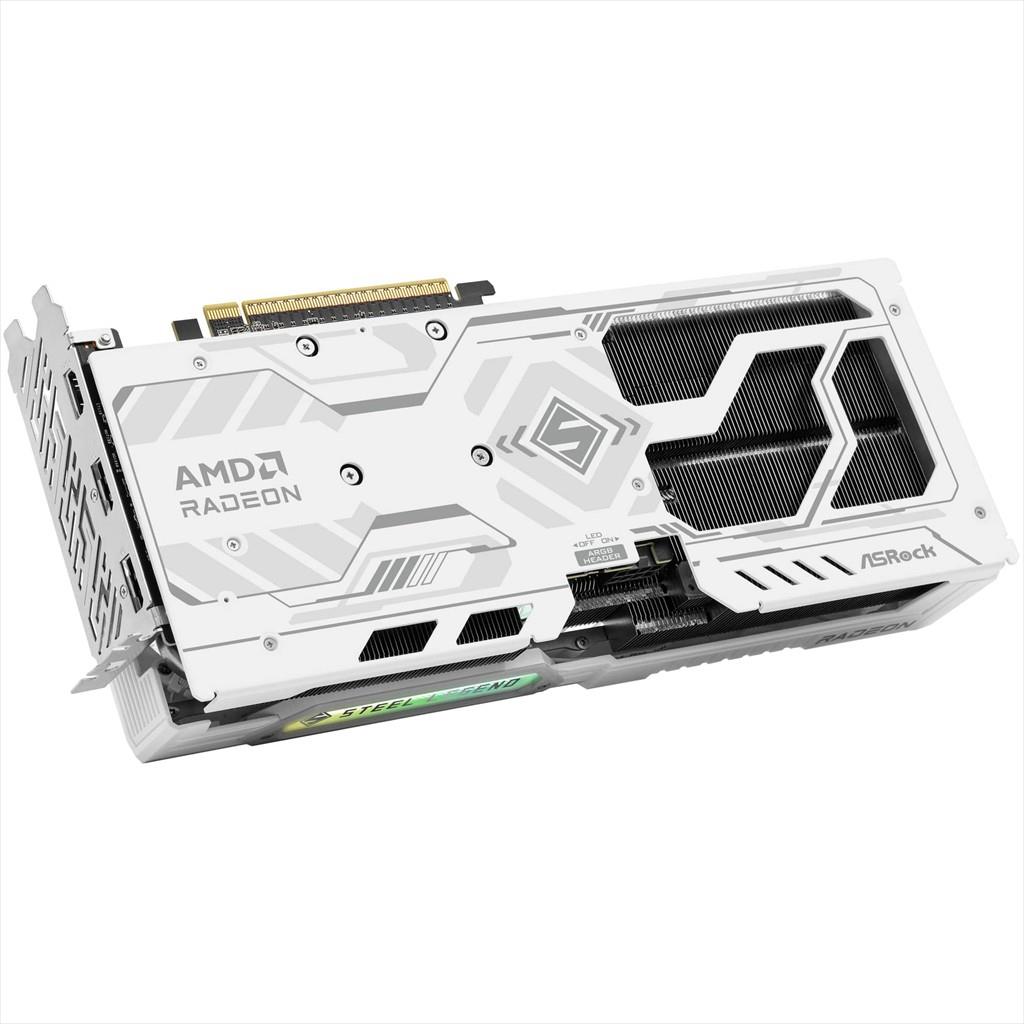

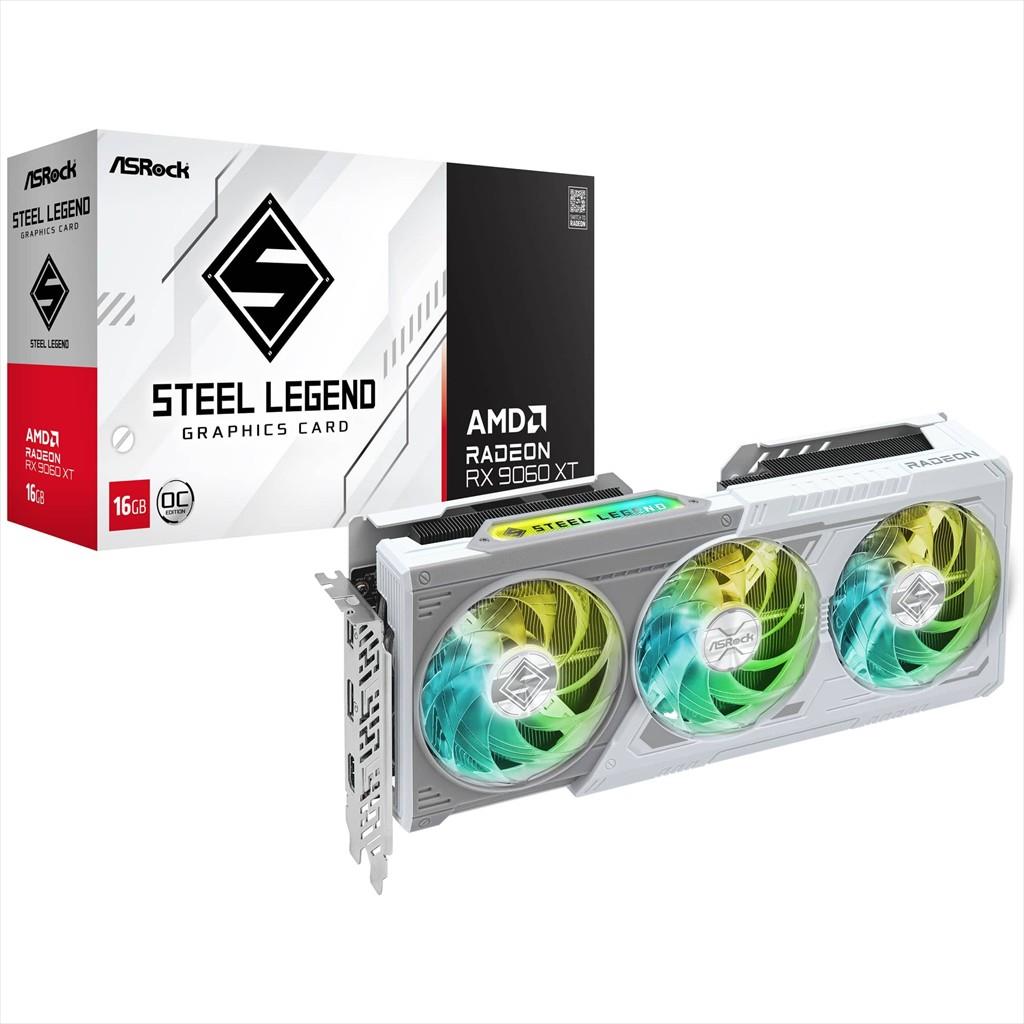

VGA ASROCK RX 9060 XT STEEL LEGEND OC 16GB GDDR6 2xDP, HDMI, 90-GA5JZZ-00UANF

Спецификација

AMD Radeon RX 9060 XT Steel Legend OC · 16 GB GDDR6 · PCIe 5.0

RDNA 4 · 32 CUs · Triple-fan RGB cooler · AMD FreeSync & AI acceleration

AMD RDNA 4 architecture with 32 compute units and third‑gen RT plus second‑gen AI accelerators
Factory overclocked with boost clock up to 3320 MHz (game 2780 MHz, base 1900 MHz), unlocked for further OC
16 GB GDDR6 VRAM on a 128‑bit bus with 322.3 GB/s bandwidth for modern 1440p/4K gaming
PCIe 5.0 connectivity for maximum bandwidth on next‑gen platforms
AMD AI‑Accelerator for AI‑enhanced workloads and features

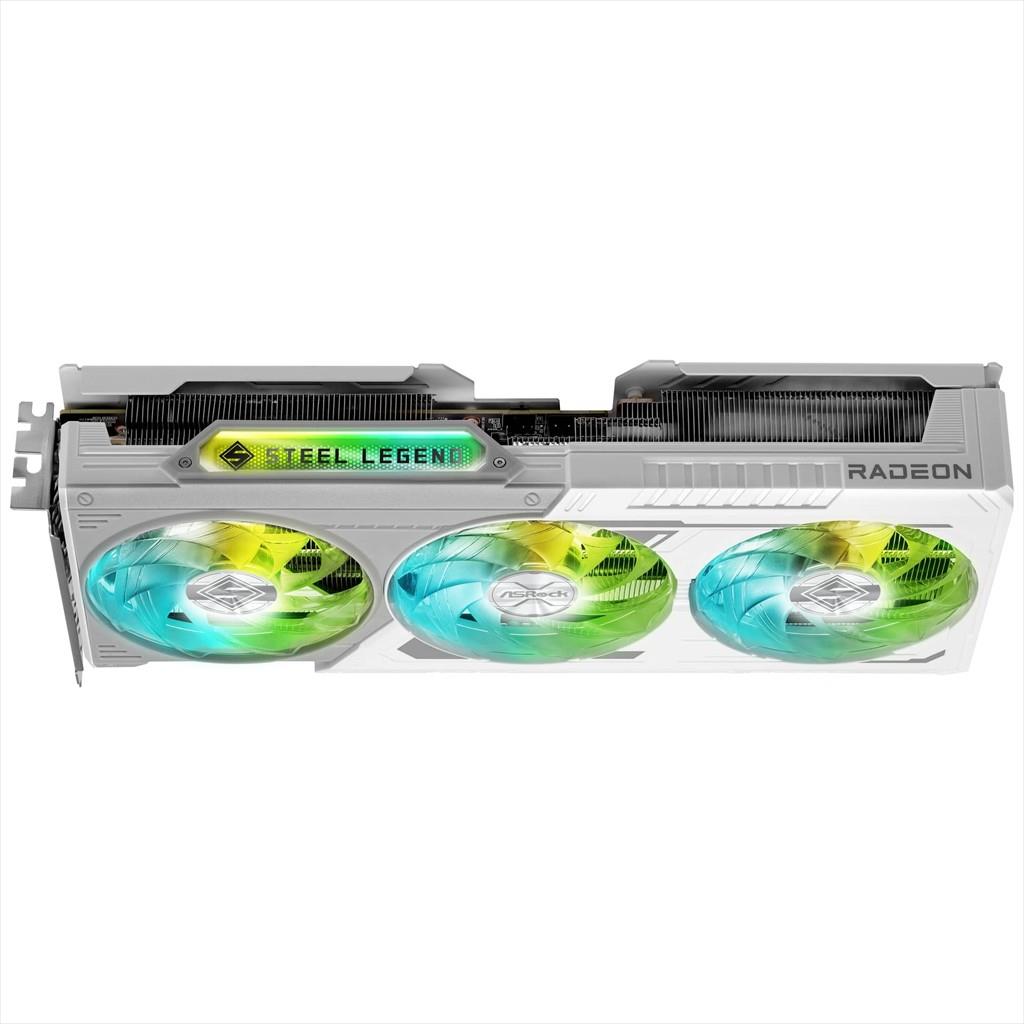

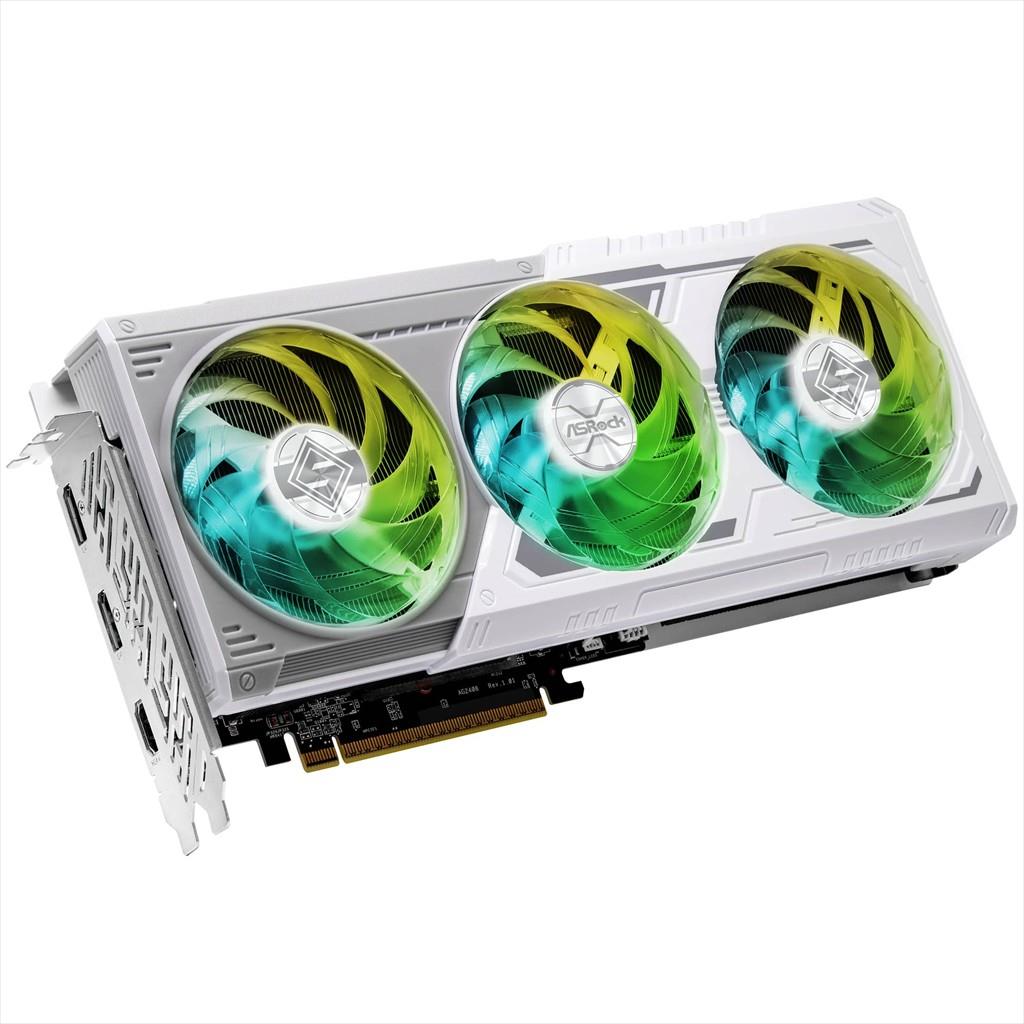

Asrock Steel Legend triple‑fan RGB cooling solution in a white 2‑slot shroud
Supports AMD FreeSync via HDMI 2.1 and DisplayPort 2.1 for tear‑free gameplay
Single 8‑pin PCIe power connector for straightforward PSU requirements
RGB lighting for customisable aesthetics in themed builds

GPU series name: AMD Radeon RX 9060 XT 16GB
Graphics chip: Navi 44 XT
Architecture: AMD RDNA 4
Manufacturing process: 4 nm
Shader units (stream processors): 2048
Compute units: 32
Ray accelerators: 32
Base clock: 1900 MHz
Game clock: 2780 MHz
Boost clock: up to 3320 MHz
Memory size: 16 GB
Memory type: GDDR6
Memory bus width: 128‑bit
Memory clock: 2518 MHz
Effective memory speed: 20.1 Gbps
Memory bandwidth: 322.3 GB/s
Interface / slot type: PCIe 5.0
Expansion slots required: 2 slots
Cooling: Air, 3 × GPU fans
Primary colour: White
RGB lighting: Yes (RGB)
Power connector: 1 × 8‑pin PCIe
Dimensions (L × W × H): 298 × 131 × 51 mm
Weight: 944 g

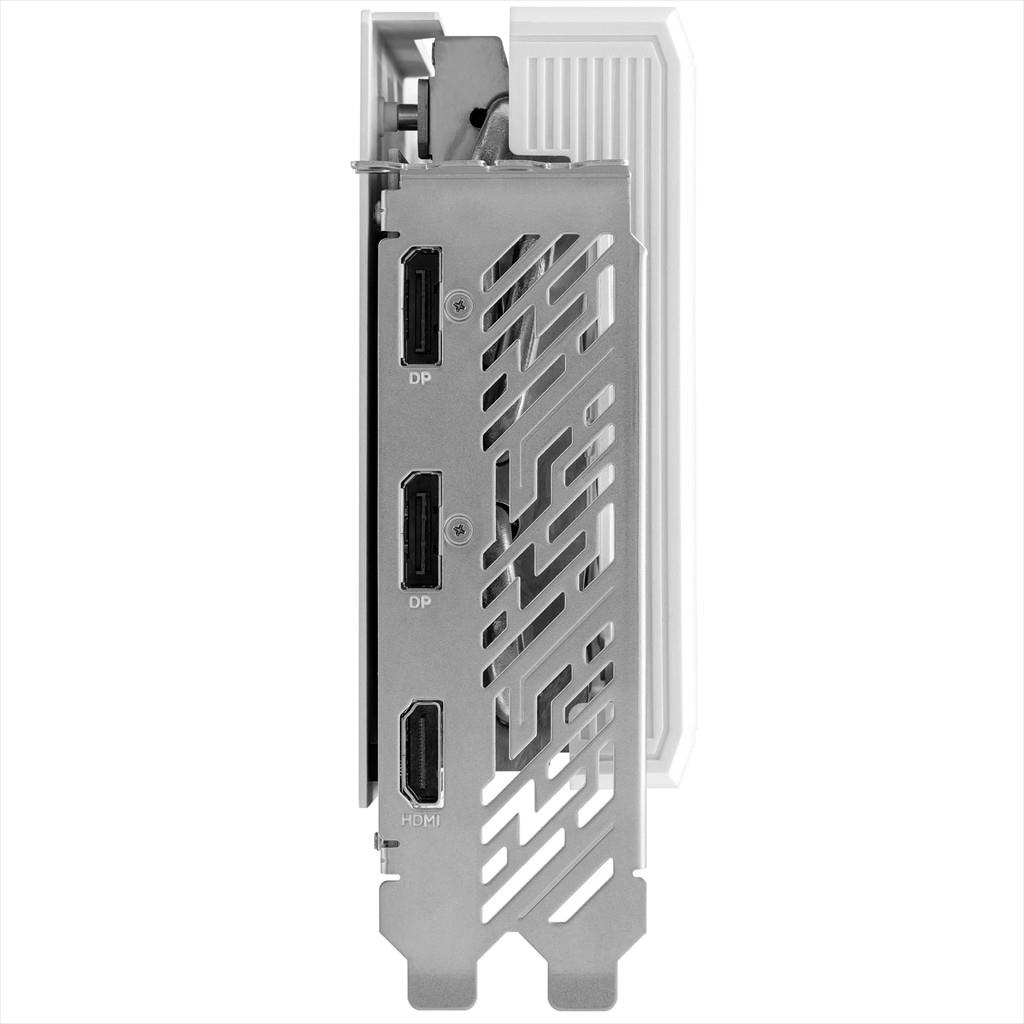

Display outputs: 1 × HDMI 2.1, 2 × DisplayPort 2.1
Adaptive Sync: AMD FreeSync
AI accelerator: AMD AI‑Accelerator (AI acceleration: Yes)
GPU series: RX 9000 Series
Compatibility note: Please refer to the manufacturer’s website for the latest compatibility information.
