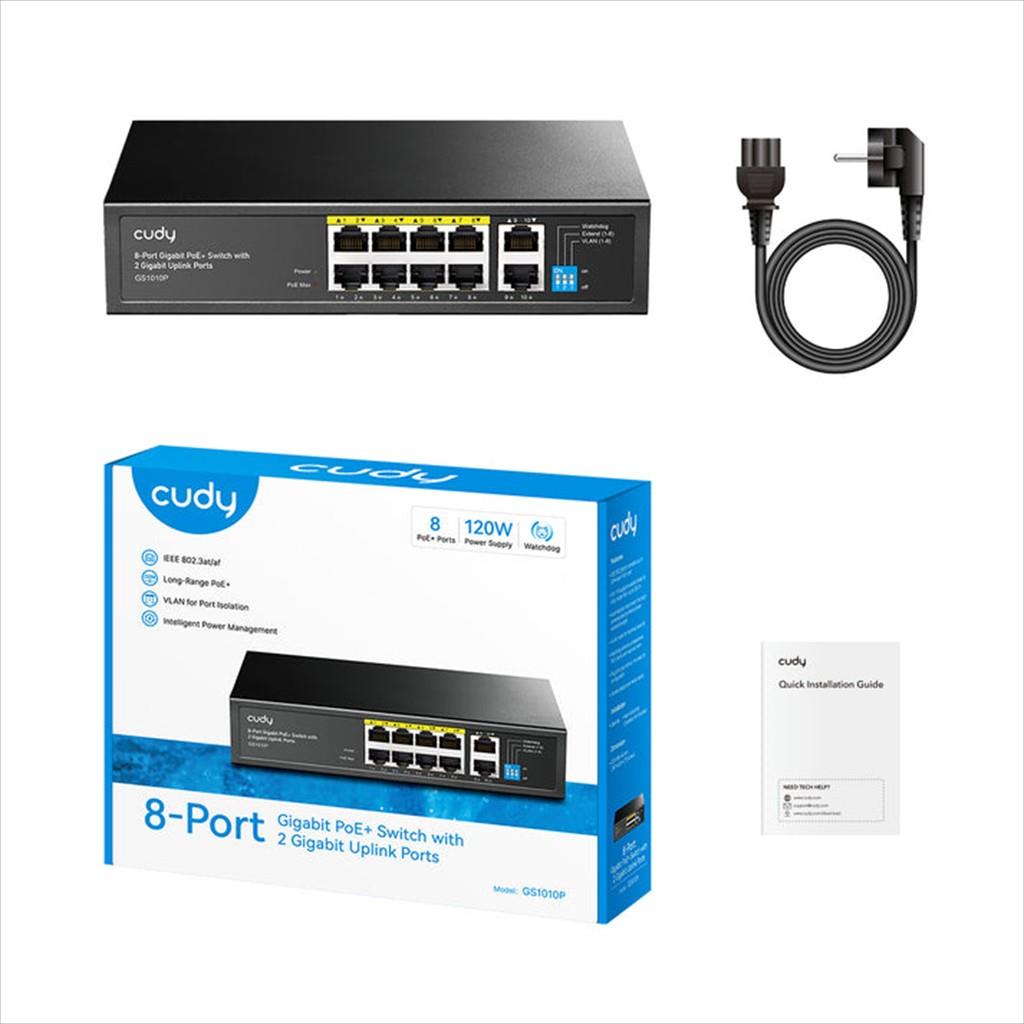

NET Switch CUDY 8-port Gigabit POE 120W GS1010P

Цена со ДДВ: 2.350 ден.
Шифра: 17714
Баркод: 6971690793029
Производител: CUDY
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports

8× Gigabit PoE+ ports with IEEE 802.3at/af Mode A PoE · 2× Gigabit uplink ports
120W power supply · Extend/VLAN/Watchdog switches · PoE Max status LED

Features

  • 8-port Gigabit PoE+ switch with 2 additional Gigabit uplink ports for network expansion
  • Provides 8× Gigabit Ethernet PoE ports compliant with IEEE 802.3at/af standards
  • Supports up to 30W output on a single PoE port for powering compatible devices
  • 120W power supply provides PoE power for IP cameras, wireless access points, VoIP phones and other PoE devices
  • 2× Gigabit uplink ports allow connection to routers, core switches, NVRs or other network equipment
  • Intelligent Power Management automatically disconnects the lastly powered device when the power budget is exceeded
  • Extend Mode can be enabled for ports #1–#8 to support longer-distance transmission where required
  • VLAN Mode can be enabled for ports #1–#8 to help isolate connected devices from each other
  • PoE Watchdog can attempt to reboot connected clients that have been inactive for 5 minutes
  • PoE Max status LED indicates when the PoE power budget is near or at its limit
  • LED indicators show power status and Link/ACT status for each Ethernet port
  • Supports Gigabit transmission up to 100 meters over Cat.5e or higher cable
  • Supports up to 250-meter transmission at 10 Mbps on Extend Mode ports when Extend Mode is activated
  • 20 Gbps switching capacity and 14.88 Mpps forwarding rate support efficient wired network performance
  • 16 KB jumbo frame support helps improve handling of larger network packets
  • Compact desktop or rack-friendly metal-style form factor measuring 200×118×44 mm

Specification

  • Model name: 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports
  • Total Gigabit RJ45 ports: 10
  • Gigabit RJ45 PoE ports: Ports #1–#8
  • Uplink ports: 2× Gigabit Ethernet
  • PoE standard: IEEE 802.3at/af
  • PoE mode: Mode A
  • Maximum power on a single PoE port: 30W
  • PoE power supply: 120W
  • PoE priority: Intelligent Power Management; automatically disconnects the lastly powered device when power exceeds the budget
  • Shielded RJ45 ports: Supported
  • Extend Mode ports: Ports #1–#8
  • VLAN Mode ports: Ports #1–#8
  • LED indicators: Power
  • LED indicators: Link/ACT of each Ethernet port
  • LED indicators: PoE Max status
  • Physical buttons: Extend On/Off
  • Physical buttons: VLAN On/Off
  • Physical buttons: PoE Watchdog On/Off
  • PoE Watchdog note: The PoE Watchdog will attempt to reboot plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade features.
  • Maximum copper speed and distance: Cat.3 or higher cable: 100 meters at 10 Mbps
  • Maximum copper speed and distance: Cat.5 or higher cable: 100 meters at 100 Mbps
  • Maximum copper speed and distance: Cat.5e or higher cable: 100 meters at Gigabit
  • Maximum copper speed and distance: Cat.5e or higher cable: 250 meters at 10 Mbps
  • Copper speed and distance note: 250-meter transmission is only available on Extend Mode ports when Extend Mode is activated
  • MAC address table: 2048
  • Maximum switching capacity: 20 Gbps
  • Maximum forwarding rate: 14.88 Mpps
  • Jumbo frame: 16 KB
  • Packet buffer: 1 Mbit
  • Dimensions: 200×118×44 mm / 7.87×4.65×1.73 in
