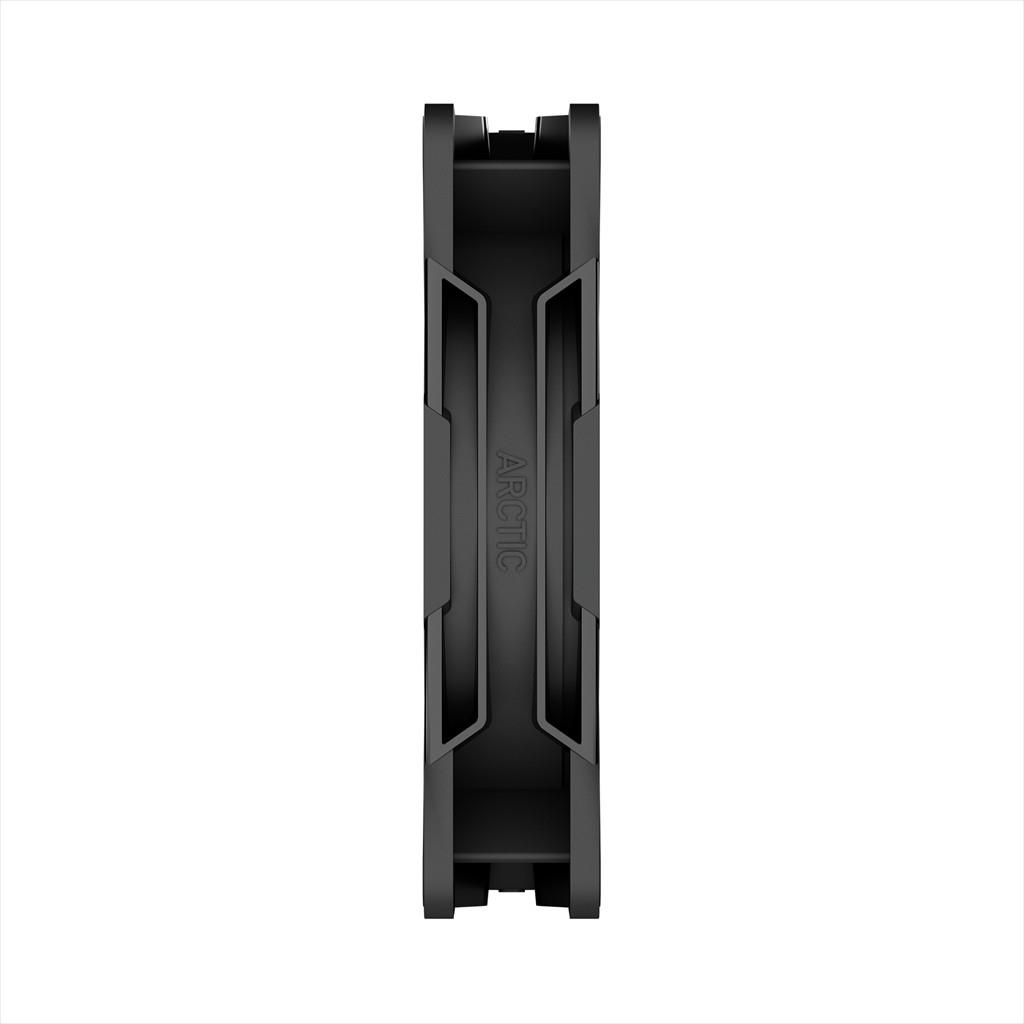

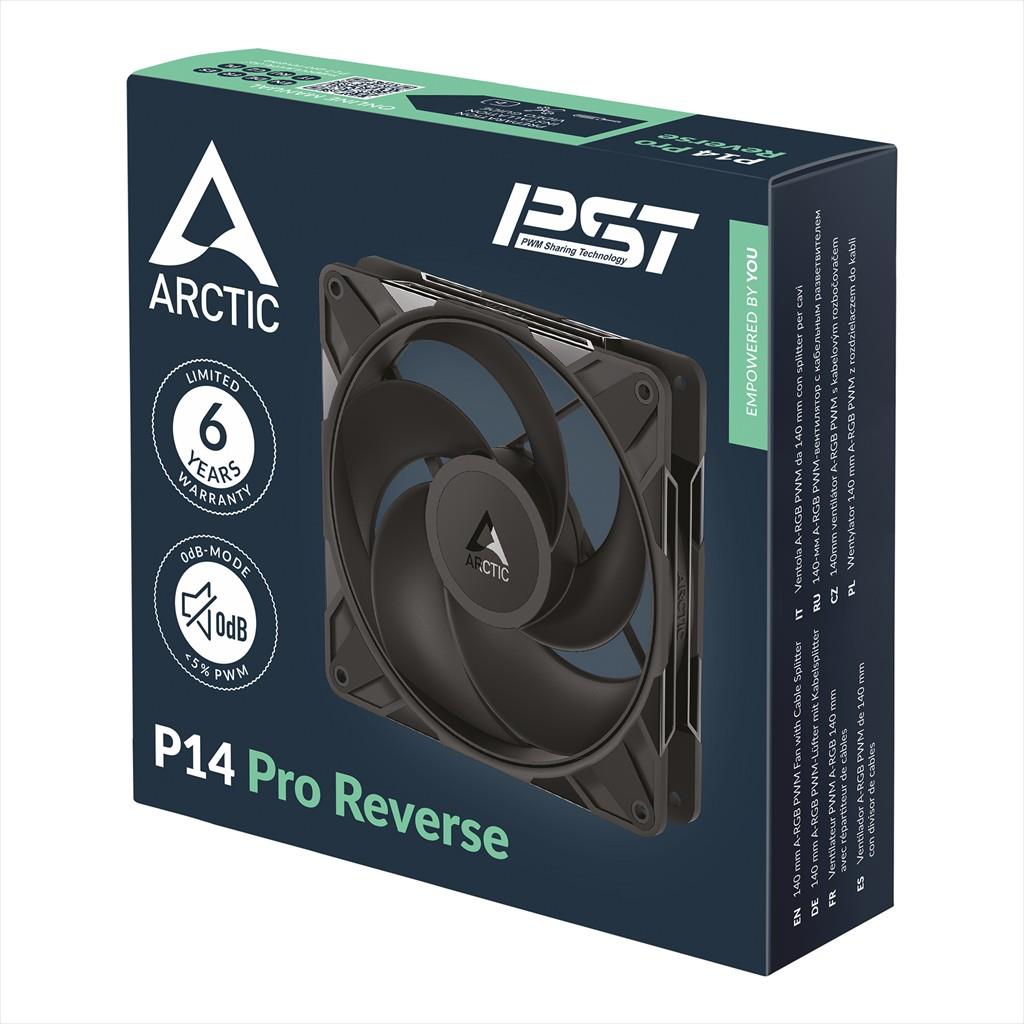

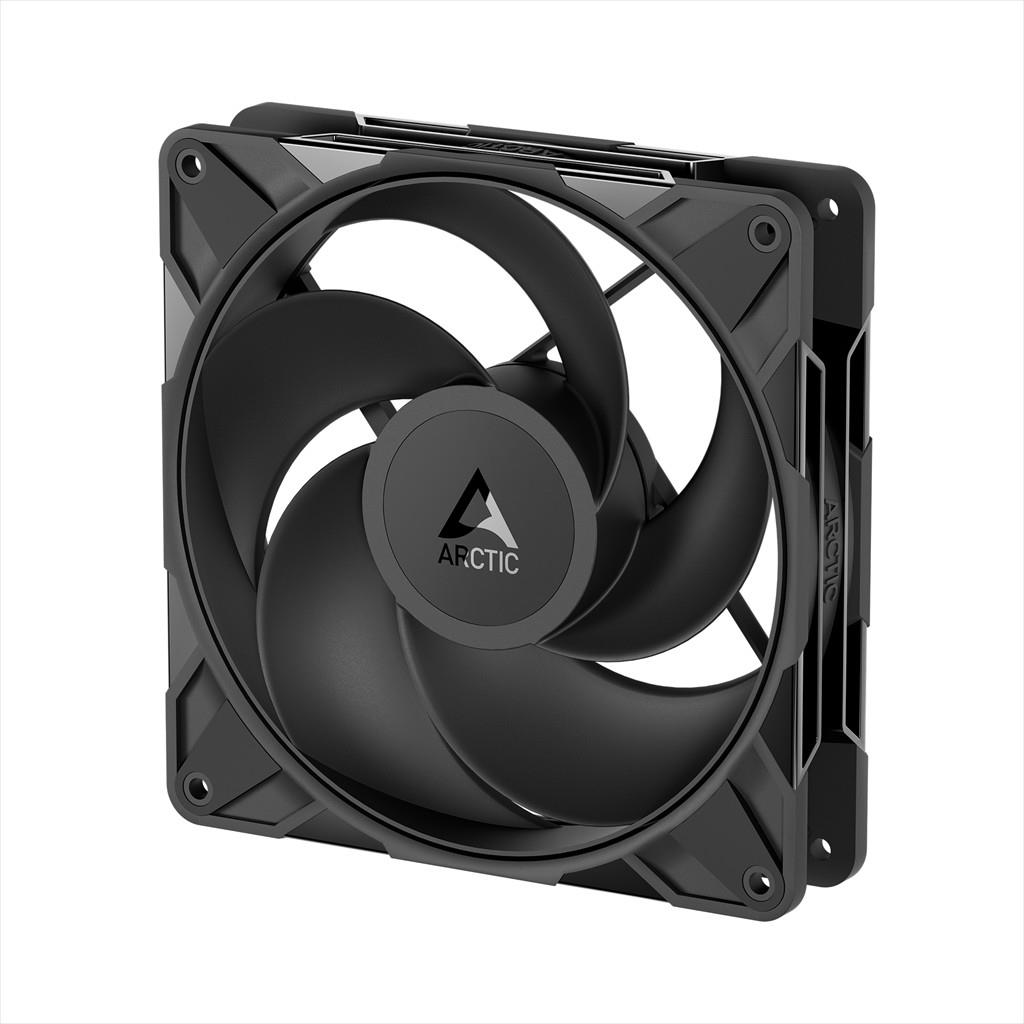

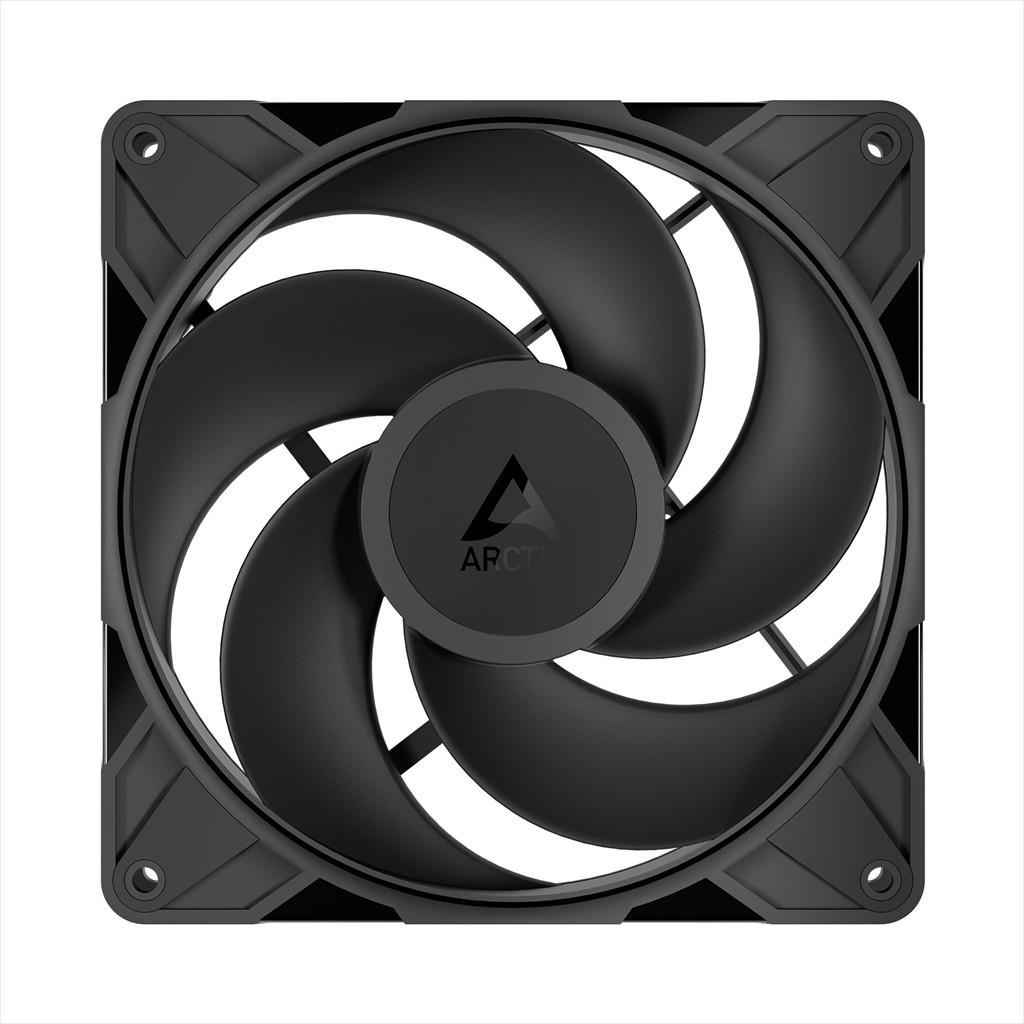

COOLERS CASE FAN 140mm ARCTIC P14 PRO REVERSE PWM 400-2650 RPM, BLACK, ACFAN00329A

Цена со ДДВ: 940 ден.
Шифра: 36794
Баркод: 4895265000744
Производител: ARCTIC
Гаранција: 1050 дена
залиха: има на залиха
Спецификација

Model Name: ARCTIC P14 PRO REVERSE Black ACFAN00329A

140 mm high-pressure case fan with reversed airflow
400–2650 rpm PWM · Fluid dynamic bearing · PST daisy-chain

Features

  • Specifically designed for air intake from the back side, ideal where standard fans affect aesthetics
  • Optimized airflow design for high performance cooling
  • SOTA microcontroller for precise and efficient PWM control
  • Minimum gap dimensions to maximize efficiency and pressure
  • PST (PWM Sharing Technology) for easy cable management and synchronized PWM control across multiple fans
  • Optimized fluid dynamic bearing/shaft design for long service life and low noise

Specification

  • Fan size: 140 mm
  • Fan speed: 400–2650 rpm (PWM controlled), 0 rpm below 5% PWM
  • Airflow: 98 CFM / 166.5 m³/h
  • Static pressure: 5.1 mmH₂O
  • Bearing type: Fluid Dynamic Bearing
  • Typical voltage: 12 V DC
  • Start-up voltage: 4 V DC
  • Current: 0.4 A
  • Cable length: 400 mm + 80 mm daisy-chain cable
  • Connectors: 4-pin fan plug + 4-pin socket
  • Airflow direction: Reversed (intake from back side)
  • Model code: ACFAN00329A
  • Color: Black
