PSU 1000W GIGABYTE UD1000GM PG5 V2 w/PCIe 5.1, 80 Plus GOLD FULL MODULAR, GP-UD1000GM PG5 V2

Цена со ДДВ: 11.420 ден.
Шифра: 26363
Баркод: 4719331556112
Производител: GIGABYTE
Гаранција: 1080 дена
залиха: има на залиха
Спецификација

Model Name: UD1000GM PG5 V2

1000 W fully modular ATX 3.1 power supply · 80 PLUS Gold
PCIe Gen 5.1 ready · 100% Japanese capacitors · Cybenetics Platinum efficiency

Features

  • Ultra Durable design with 100% Japanese capacitors
  • Intel ATX 3.1 and PCIe Gen 5.1 ready for latest platforms and GPUs
  • 80 PLUS Gold certified with Cybenetics Platinum-level efficiency
  • Fully modular cable design with embossed all-white cables for clean builds
  • Powerful single +12 V rail for stable high-load performance

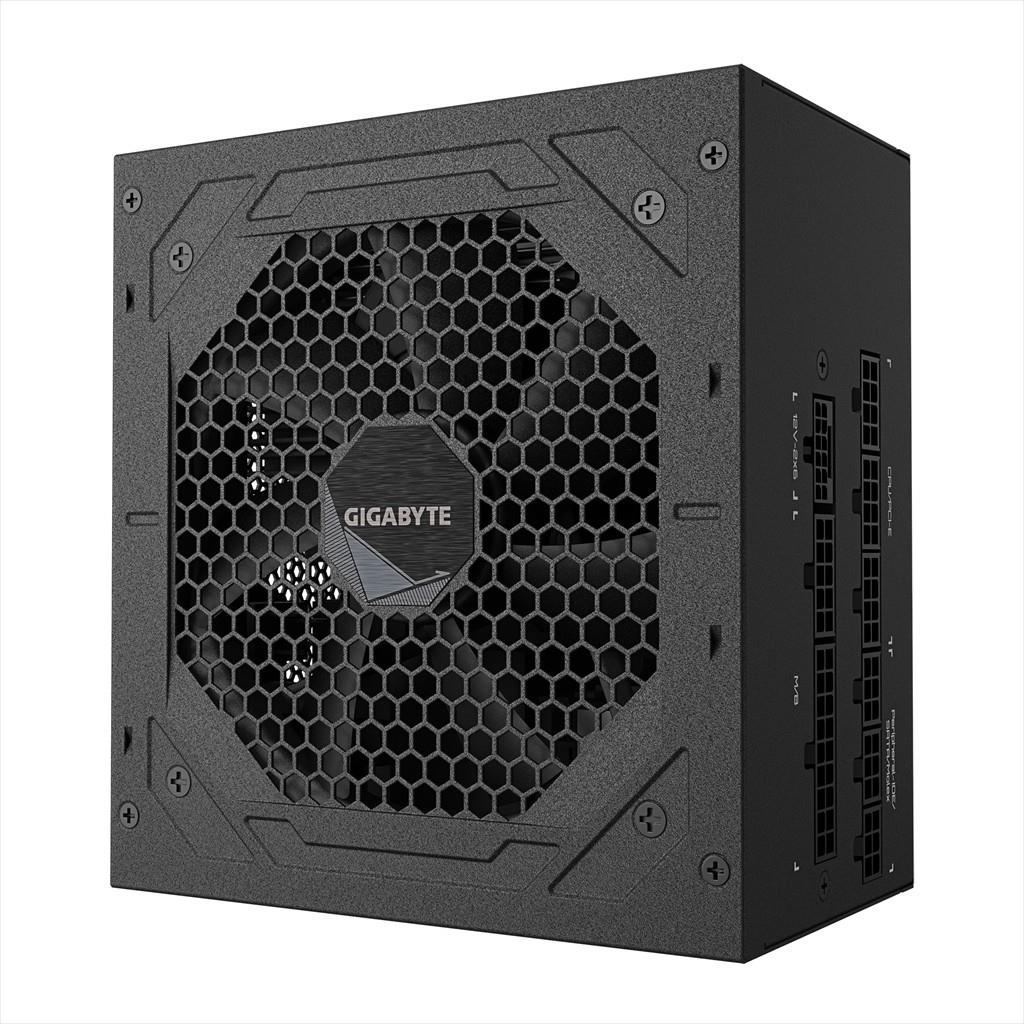

  • Optimized thermal solution with 120 mm smart hydraulic bearing (HYB) fan
  • Active PFC and up to 90% efficiency at typical load
  • Comprehensive protections including OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP
  • Compact 140 mm depth ATX housing for wider case compatibility

Specification

  • Type / form factor: Intel ATX 12V v3.1
  • Output capacity: 1000 W
  • Input voltage: 100–240 Vac (full range)
  • Input current: 15–6.5 A
  • Input frequency: 50–60 Hz
  • PFC: Active PFC (>0.9 typical)
  • 80 PLUS certification: Gold
  • Efficiency: Up to 90% at typical load
  • Cybenetics rating: Platinum efficiency
  • Rail design: Single +12 V rail
  • Fan type: 120 mm hydraulic bearing (HYB) fan
  • Dimensions (W × D × H): 150 × 140 × 86 mm
  • MTBF: >100,000 hours
  • Protections: OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP
  • Power good signal: 100–150 ms
  • Hold-up time: >16 ms
  • Cable type: Embossed, all white (fully modular)

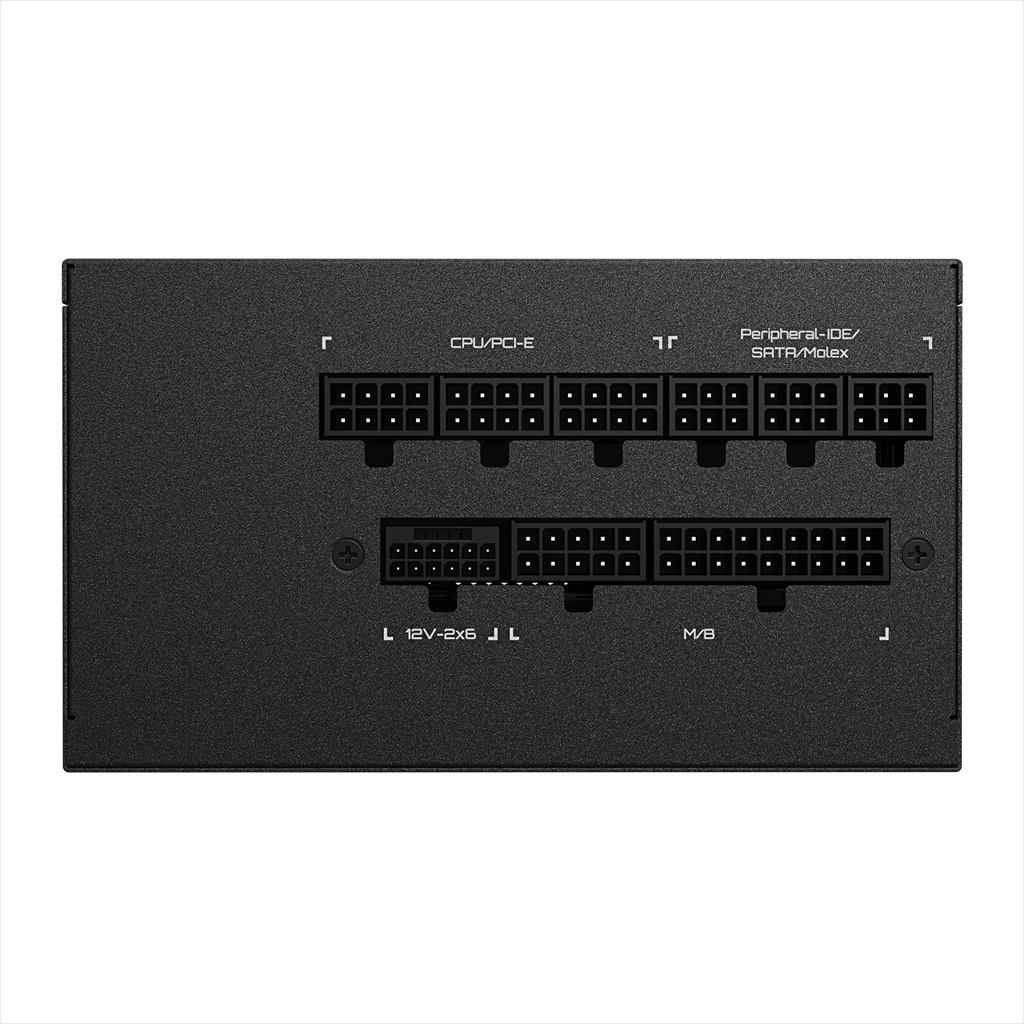

  • Connectors:
  • • 1 × ATX/MB 20+4-pin: 610 mm
  • • 2 × CPU/EPS 4+4-pin: 650 mm + 200 mm (daisy-chain on one cable)
  • • 4 × PCIe 6+2-pin: 600 mm + 150 mm (on 2 cables)
  • • 1 × PCIe 12+4-pin (12VHPWR): 700 mm
  • • 8 × SATA: 600 mm + 150 mm + 150 mm + 150 mm (×2 cables)
  • • 3 × 4-pin peripheral + 1 × 4-pin floppy: 500 mm + 150 mm + 150 mm + 150 mm
