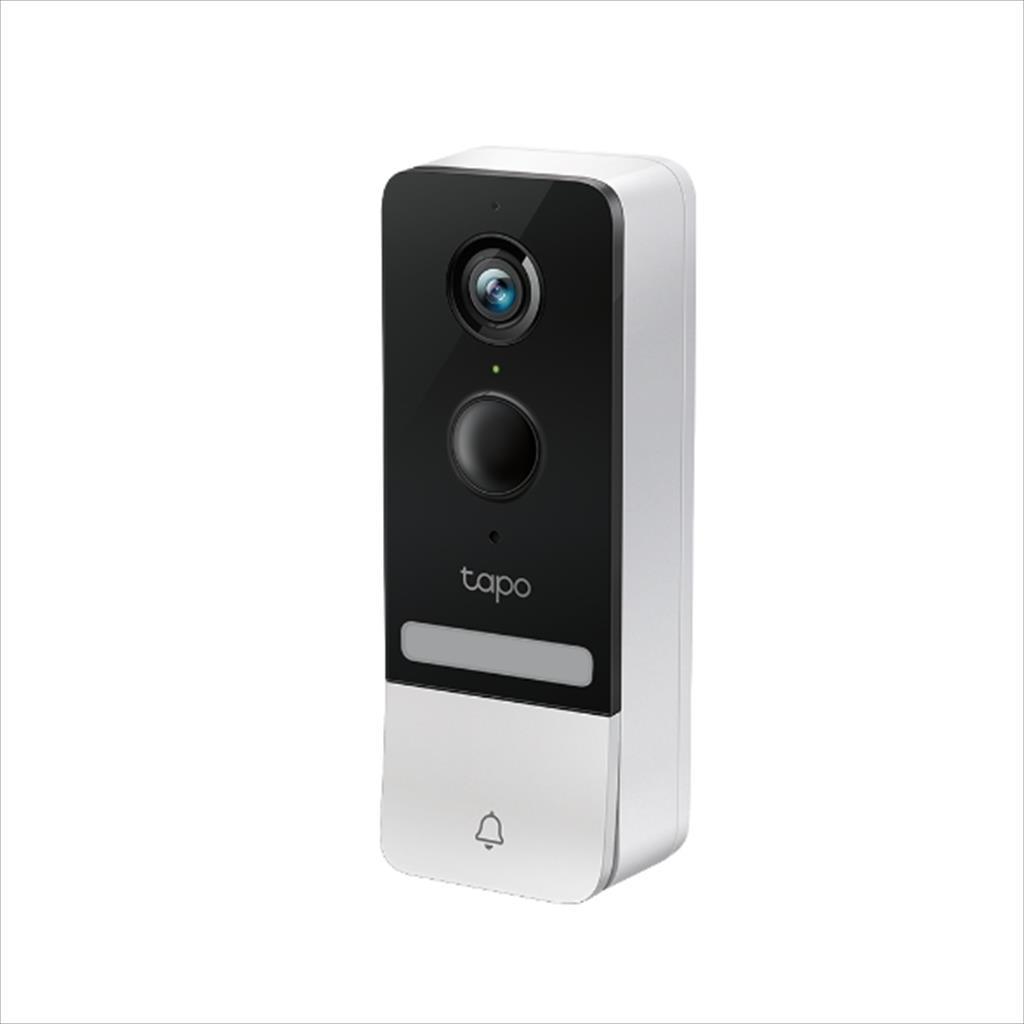

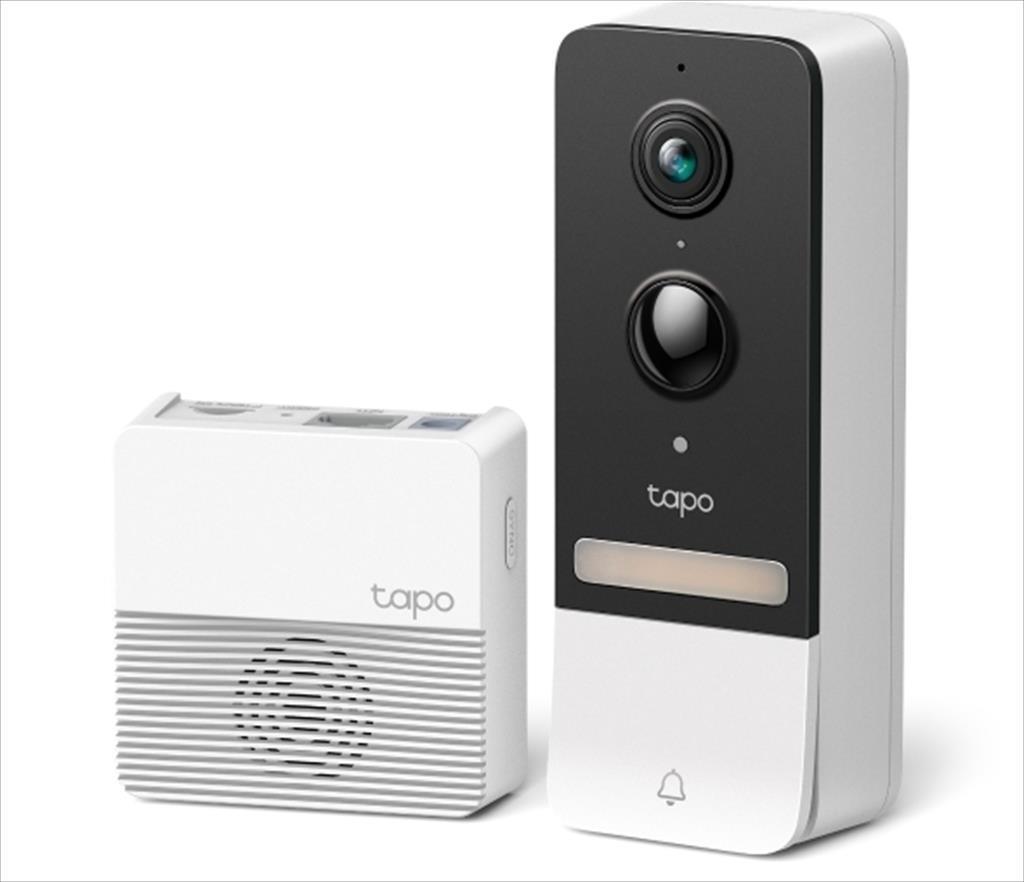

Model name: TP-LINK TAPO D230S1

Specifications:

• CAMERA
  • Image Sensor: 1/2.7“
  • Lens: F/NO: 2.1
  • Night Vision: 850 nm IR LED up to 25 ft
  • Lighting: Built-in Spotlights
  • Hub Compatibility: Compatible with H200 (Included)
  • Interface & Button: 1× RESET Button, 1× Doorbell Button, 1× Anti-Theft Button
  • Weatherproof Rating: IP64
  • Viewing Angle: 160° Diagonal
  • Resolution: 2K 5MP (2560 × 1920px)
• HUB
  • Device Compatibility: Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells
  • Connection Capacity: Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
  • Interface & Button: 1× Ethernet Port, 1× RESET Button, 1× MicroSD Card Slot (Up to 512 GB), 1× SYNC Button
• VIDEO & AUDIO
  • Maximum Resolution: 2K 5MP (2560 × 1920px)
  • Frame Rate: 15 fps
  • Digital Zoom: 16x
  • Video Compression: H.264
  • Live View: Yes
  • Image Enhancement: 3DNR, WDR
  • Audio Input & Output: Built-in Microphone and Speaker
  • Audio Communication: Two-Way Audio with Noise Cancellation
  • Siren Volume: Doorbell: 96 dB, Hub: 100 dB
• STORAGE
  • Local Storage: MicroSD Card Slot on Hub (Up to 512 GB)
  • Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
• DETECTION & NOTIFICATIONS
  • Sensor: Single PIR Motion Sensor (FOV: 130° horizontal), One Ambient Light Sensor
  • AI Detection: Motion, Person, Pet, Vehicle, Package
  • Activity Zones: Yes (Only works with Motion Detection)
  • Output Notification: System Notification, Snapshot (Tapo Care Services)
• NETWORK
  • Network Connectivity: Wi-Fi
  • Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi, Sub-1G 868MHz
  • Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
  • Ethernet Port: 1× 10/100 Mbps RJ45 Port on Hub
  • Wireless Security: WPA/WPA2-PSK, 128-bit AES Encryption with SSL/TLS
• POWER
  • Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
  • Hub: 9V DC Power Adapter
  • Input Voltage: Doorbell: 100-240 V, 50/60 Hz, Hub: 100-240 V, 50/60 Hz, 0.3 A
  • Output Voltage: Doorbell: 5.0 V, 1.0 A, Hub: 9.0 V, 0.85 A
• ACTIVITY NOTIFICATIONS
  • Input Trigger: Motion, Package, Person, Pet, Vehicle
  • Output Notification: Notification, Snapshot (Tapo Care), Clips (Tapo Care)
• HARDWARE
  • Buttons: Doorbell: Reset/SYNC/Anti-Theft, Hub: Reset, SYNC
  • Indicator LED: Doorbell: System LED, Hub: System LED
  • Adapter Input: Doorbell: 100-240V, 50/60Hz, Hub: 100-240V, 50/60Hz, 0.3A
  • Adapter Output: Doorbell: 5.0V, 1.0A, Hub: 9.0V, 0.85A
  • Certifications: CE, RoHS, RCM, R-NZ, FCC, EAC, Triman, UKCA
• ENVIRONMENT
  • Operating Temperature: -20℃~45℃ (-4°F ~ 113°F)
  • Storage Temperature: -20℃~45℃ (-4°F ~ 113°F)
  • Operating Humidity: 10%~90% RH, Non-condensing
  • Storage Humidity: 5%~90% RH, Non-condensing
