Model name: HYTE THICC Q60 THICC

Specifications:

• CPU Compatibility: Intel Socket LGA 1851, 1700, 1200, 115X, 2011*, 2066* - AMD Socket AM5, AM4, TR4* - *Optional brackets, please contact support
• Heat Exchanger:
  • Dimensions: 120 x 288 x 52 mm
  • Material: Aluminum
  • Technology: Parallel Dual Pass

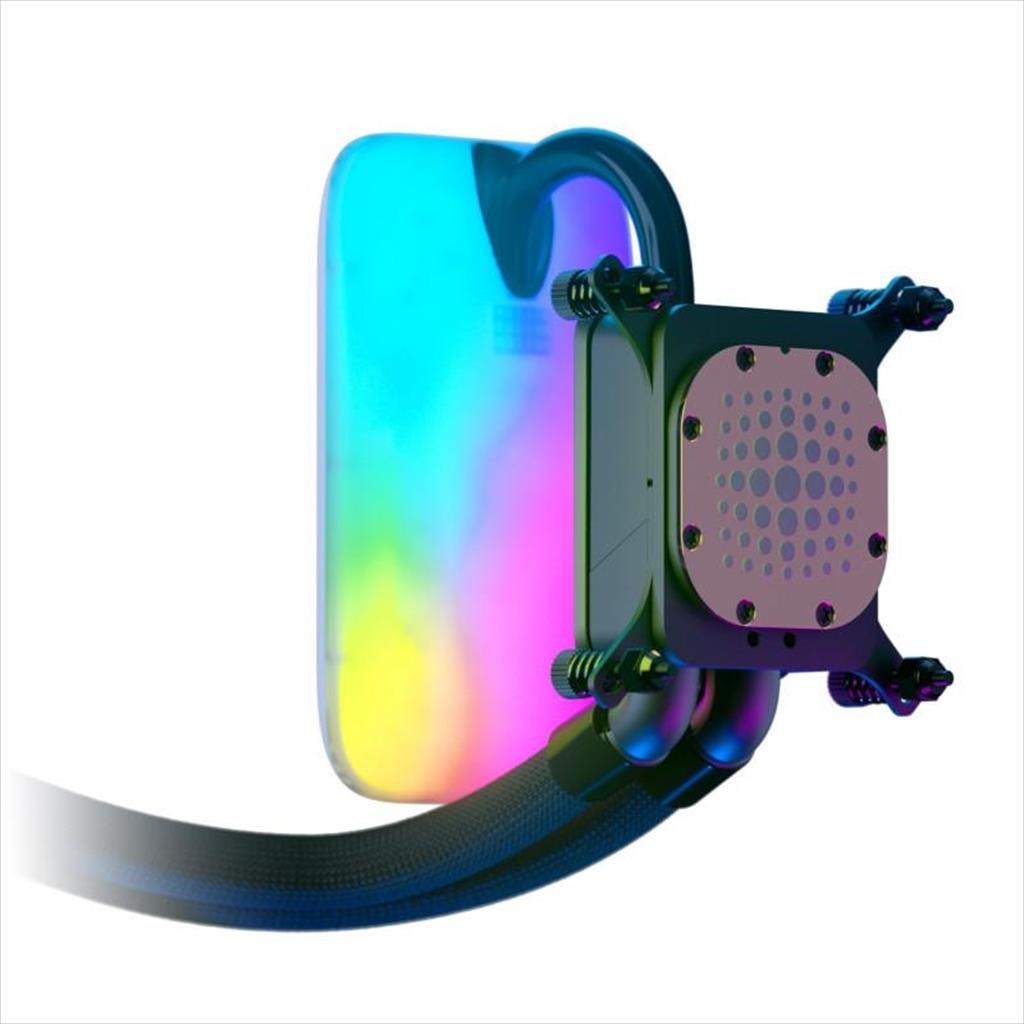

• Cold Plate:
  • Dimensions: 56 x 56 x 1.5 mm
  • Material: Copper
  • Technology: Micro-Skived Fin
• Magnetic Interchangeable Cold Plate Cover: Anodized Aluminum
• Tube:
  • Length: 400 mm
  • Material: CIIR Rubber with Nylon Sleeving
• Total CPU Block + LCD Screen Height: 105 mm
• Fans:
  • Model: THICC FP12 x 2
  • Dimensions: 120 x 120 x 32 mm
  • Speed: 0 – 3,000 RPM
  • Air Flow: 105.8 CFM
  • Static Pressure: 8.14 mm-H2O
  • Noise Level: <10.0* - 47.3 dBA (*below 10 dBA not measurable due to noise floor)
  • Bearings: Fluid Dynamic Bearing
  • Blade Material: Fiberglass Reinforced Liquid Crystal Polymer (LCP)
  • Frame Material: Polycarbonate
  • Connector: Nexus Link Type-M
• Nexus-Link Channels:
  • Ports: 1x Type-C, 1x Type-M
  • Maximum Devices (Single Channel): 18
  • Maximum Devices (All Channels): 34
  • Maximum Current (Single Channel): 8A/12V
  • Maximum Current (All Channels): 15A/12V
  • Maximum PSU Power Draw: Up to 180W (depending on connected devices)

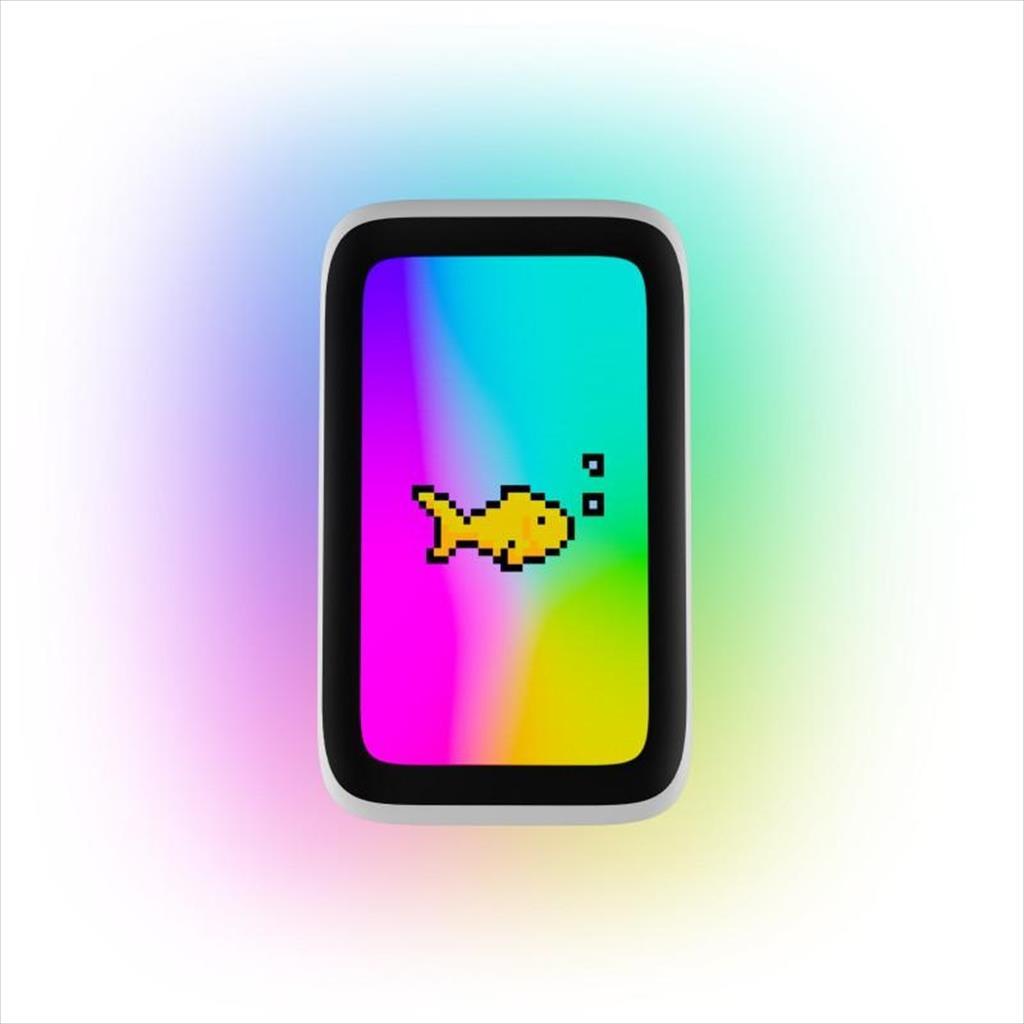

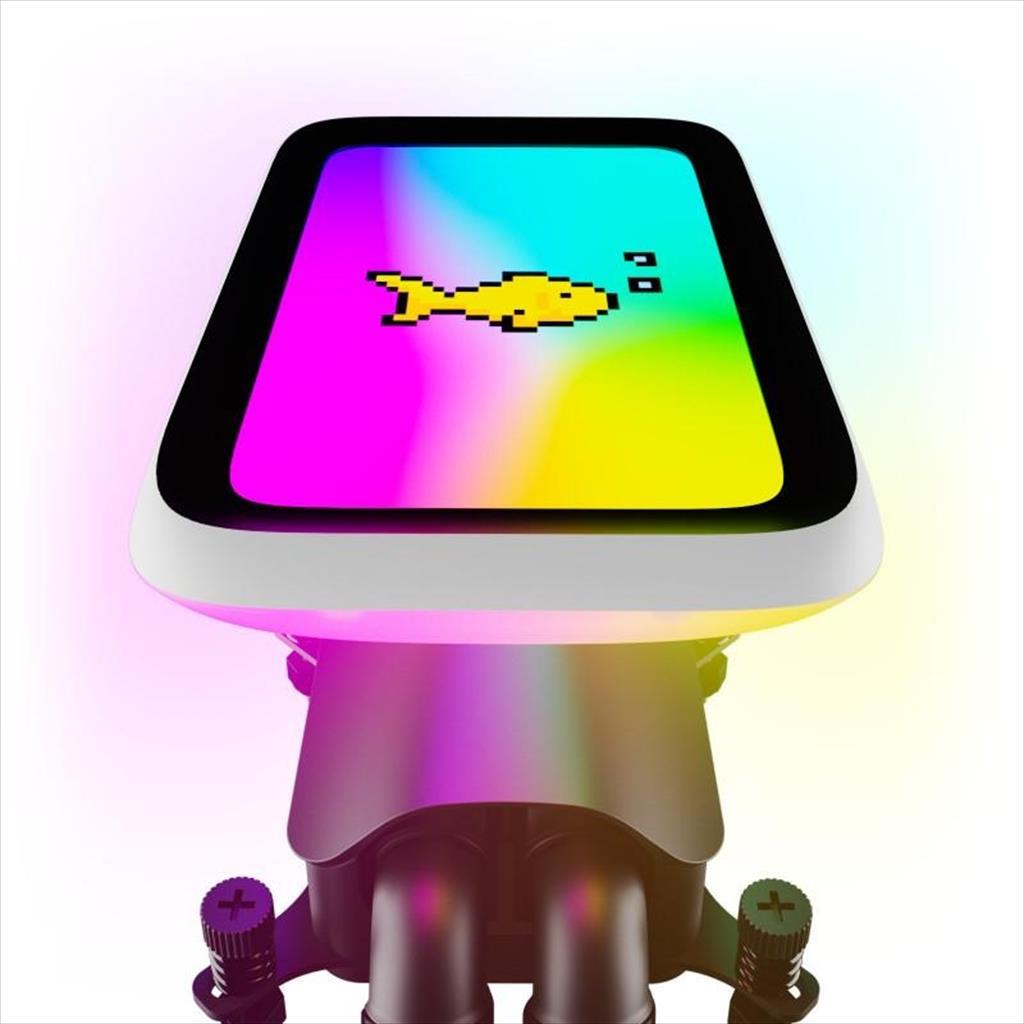

• LCD:
  • Size: 5 Inches
  • Mounting Orientation: Portrait Only
  • Resolution: 720 x 1280 (293 PPI)
  • Panel Type: IPS
  • Hinge: Double-Hinged Floating Spout
  • Refresh Rate: 60 Hz
  • Brightness: 300 nits
  • Bias Lighting: 42-Pixel qRGB Array
  • Logo Lighting: 4-Pixel qRGB Array
• Pump:
  • RPM: 2,000 – 4,500 RPM
  • Bearing: Ceramic
  • Impeller Diameter: 24 mm
• Coolant Operation Temperatures: -10 to 60°C
• Processor: Quad-Core 64-bit ARM Cortex @ 1.3 GHz
• RAM: 2GB DDR4 @2666 MT/s
• Storage: 32GB eMMC
• Graphics Engine: 500 MHz
• Co-Processor: 32-Bit ARM Cortex-M4
• Input Connections: USB 2.0 Header, PWM, 6-Pin PCIe Power
• Included Accessories: Intel Mounting Kit + AMD Mounting Kit + Fan Screws
• Thermal Paste: Yes, Pre-Applied
• Nexus Powered: Yes
