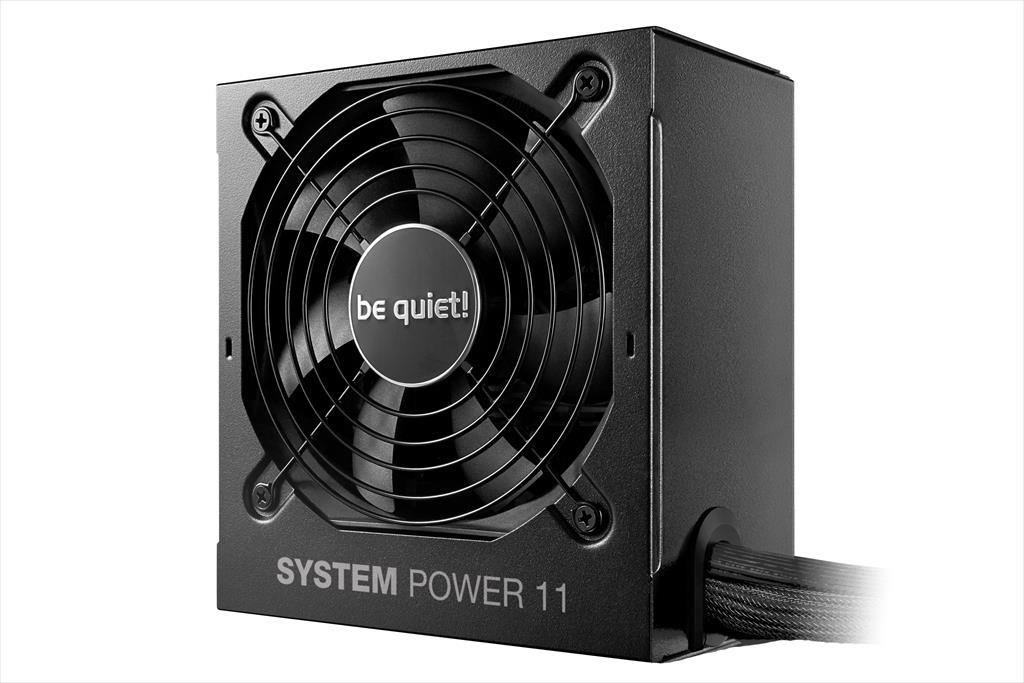

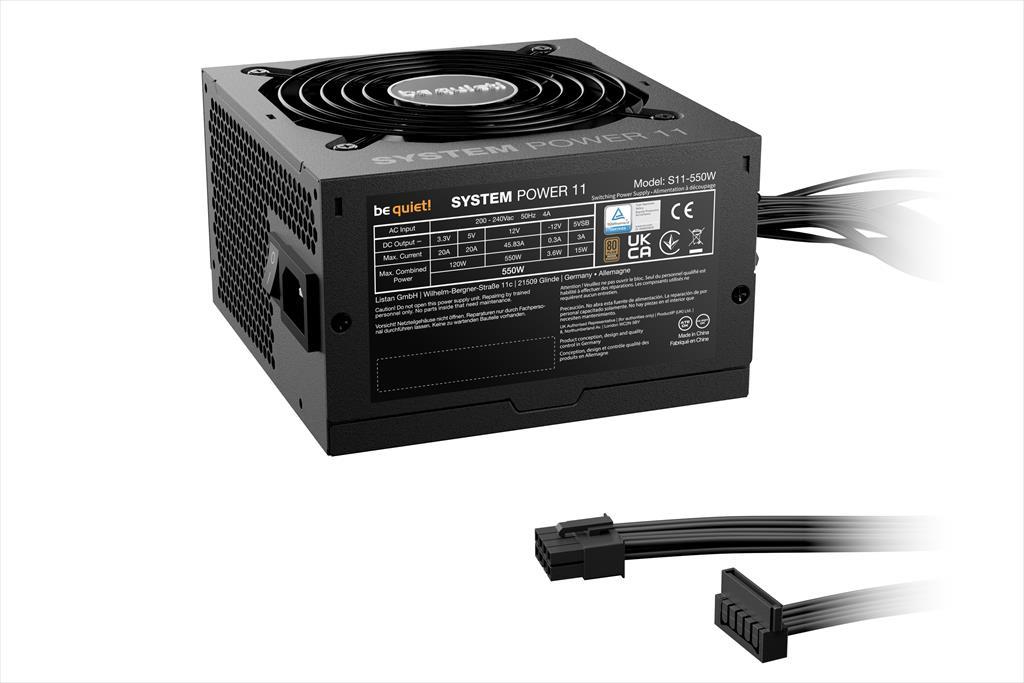

Model name: BE QUIET! SYSTEM POWER 11 BP010EU

Specification :

• Cables and Connectors
  • Sleeved Cables: P24
  • Flat Cables: P4+4, P4, PCIe, drives
  • Maximum Cable Length: 55 cm
  • Cable Length to Motherboard: 79 cm
  • No. of Cables: 7
  • ATX-Motherboard (20+4-pin): 1
  • P4+4 (CPU): 1
  • P4 (CPU): 1
  • 12V-2x6 Cables: 1
  • PCI-e 6+2-pin (GPU): 2
  • SATA: 5
  • PATA: 1
• General
  • Continuous Power: 550 W
  • Form Factor: ATX 3.1
  • Form Factor EPS 12V: Version 2.92
  • Topology: Double forward + DC-DC
  • Voltage (Vac): 200 - 240
  • Frequency (Hz): 50
  • Input Current (A): 4
  • Power Factor at 100% Load: >0.98
  • Modern Standby: ✓
  • Power Consumption in Standby: <0.1 W
  • Average Life Time (25°C): >100,000 h
  • Operating Temperature up to: 40°C
• Efficiency
  • 80 PLUS Certification: Bronze
  • Efficiency at 230V, 2% Load: 64.4%
  • Efficiency at 230V, 10% Load: 84.4%
  • Efficiency at 230V, 20% Load: 88.6%
  • Efficiency at 230V, 50% Load: 89.7%
  • Efficiency at 230V, 100% Load: 86.6%
• Fan and Cooling Technology
  • Fan: Silence-optimized be quiet! fan
  • Fan Size: 120 mm
  • Bearing Technology: Rifle
  • Motor Technology: 4-pole fan motor
  • Max. Fan Speed: 1800 rpm
  • Noise at 10% Load: 10.4 dB(A)
  • Noise at 20% Load: 10.8 dB(A)
  • Noise at 50% Load: 11.0 dB(A)
  • Noise at 100% Load: 24.2 dB(A)
• Output
  • 12V Single Rail Operation: ✓
  • +3.3V (A): 20
  • +5V (A): 20
  • +12V1 (A): 45.83
  • -12V (A): 0.3
  • +5Vsb (A): 3
  • Max. Combined Power 12V: 550 W
  • Max. Combined Power 12V-2x6: 300 W
  • Max. Combined Power 3.3V + 5V: 120 W
  • Hold-up Time at 100% Load: 16.86 ms
  • Hold-up Time at 80% Load: 20.92 ms
  • Power Good Signal: 100 - 150 ms
• Protection
  • OTP (Over Temperature Protection): ✓
  • OCP (Over Current Protection): ✓
  • OPP (Over Power Protection): ✓
  • SCP (Short Circuit Protection): ✓
  • OVP (Over Voltage Protection): ✓
  • UVP (Under Voltage Protection): ✓
  • SIP (Surge & Inrush Protection): ✓
