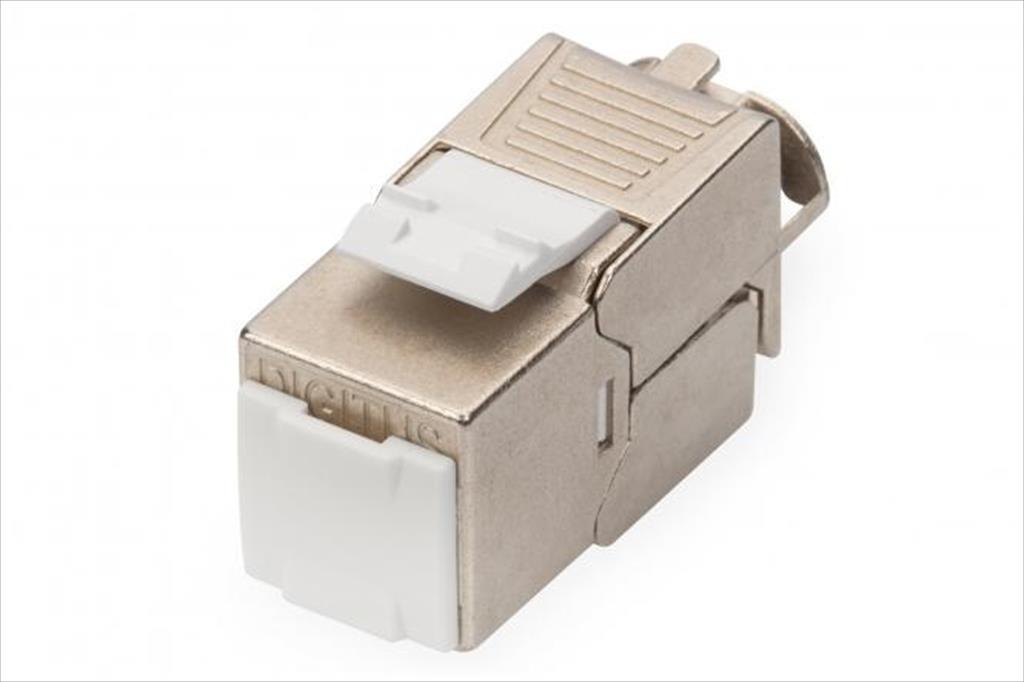

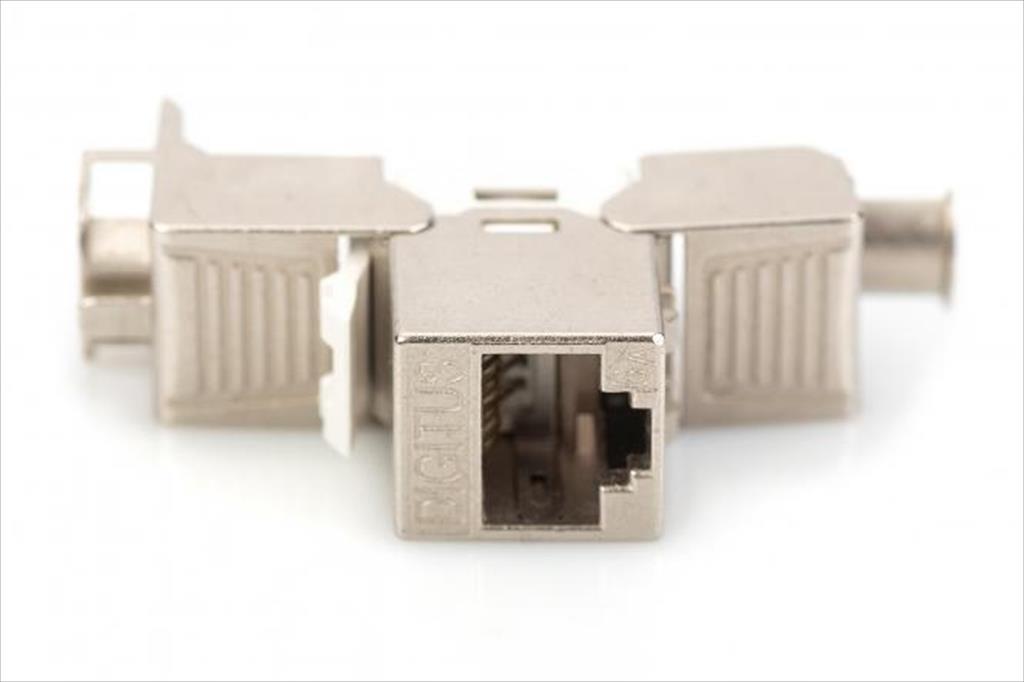

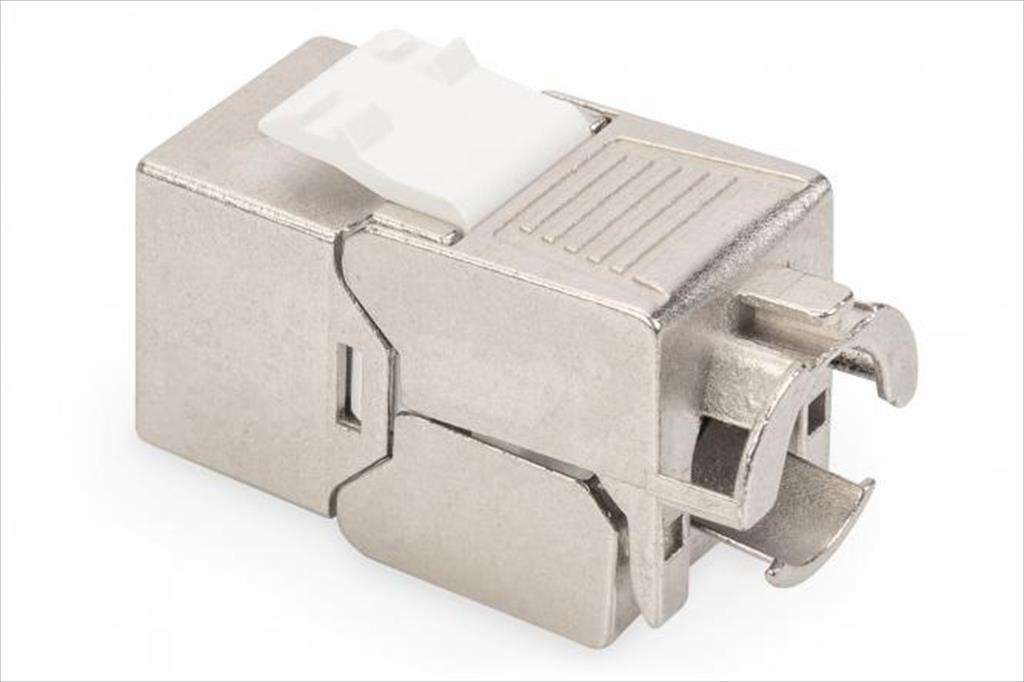

NET MODUL RJ-45 Cat6A Keystone Jack, 360 degree shielded, toolfree, DIGITUS, DN-93615-24 (PRICE FOR 1 PCS)

Цена со ДДВ: 300 ден.
Шифра: 17627
Баркод: 4016032373087
Производител: DIGITUS
Гаранција: 0 дена
залиха: има на залиха
Спецификација

Model name: DIGITUS Cat6A Keystone Jack

Specifications:

  • Category: 6A 10G Base-T, 500 MHz
  • ISO/IEC 11801: 3rd edition
  • EN 50173-1: Yes
  • Suitable for PoE/PoE+/4PPoE: IEEE 802.3af, 802.3at, 802.3bt
  • Suitable for distribution panel and junction box mounting: Yes
  • RJ45 Jack: 8P8C

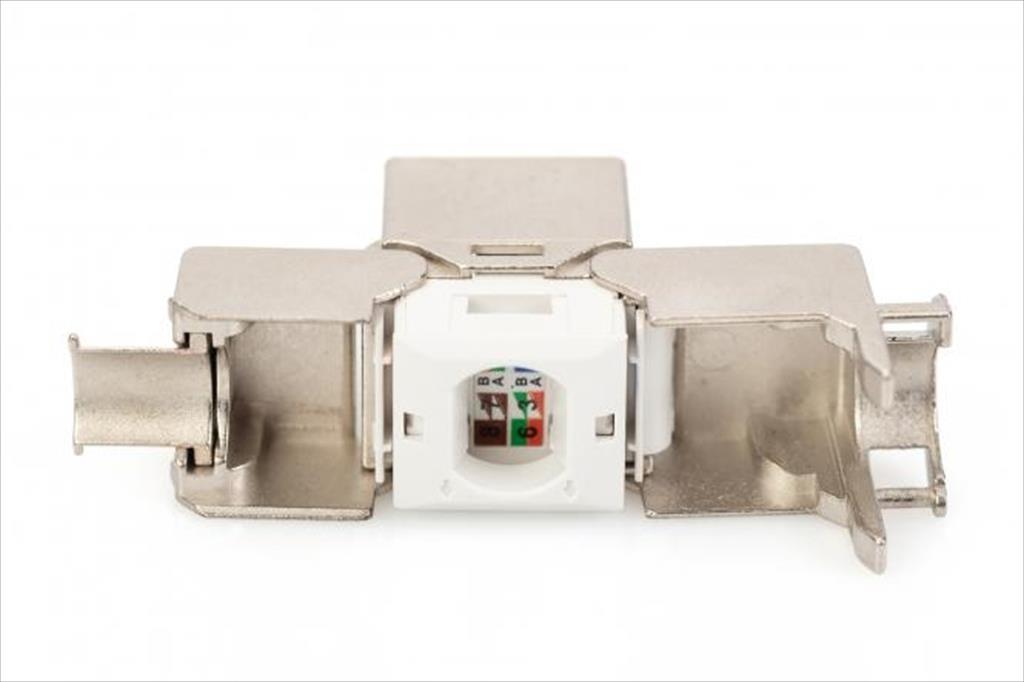

  • Cable installation via insulation-displacement connectors: Color coded in accordance with EIA/TIA 568 A & B
  • Cable grip and fixation: Intelligent cable manager
  • Tool-free mounting connection: Yes
  • 360° shield contact: Yes
  • Case material: Zinc die-cast – nickel-plated
  • Contact material: Phosphor bronze
  • Contact coating: Nickel, gold-plated 0.5 µ
  • Insertion force: Max. 30N (as per IEC 60603-7-51)
  • Holding force: 7.7 kg between jack and plug
  • Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
  • Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
  • Tested with AWG 22/1 solid installation cable: DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • Tool-free installation: Yes, using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
  • Intelligent cable manager: Resealable

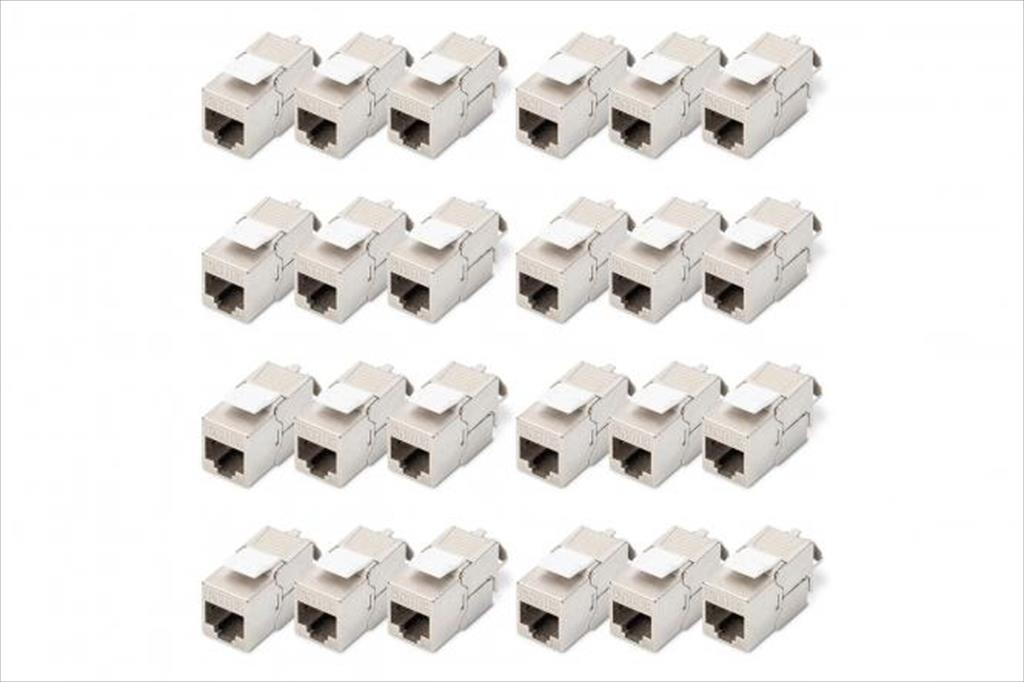

  • CAT 6A Keystone Module: Shielded, set= 24 pieces
