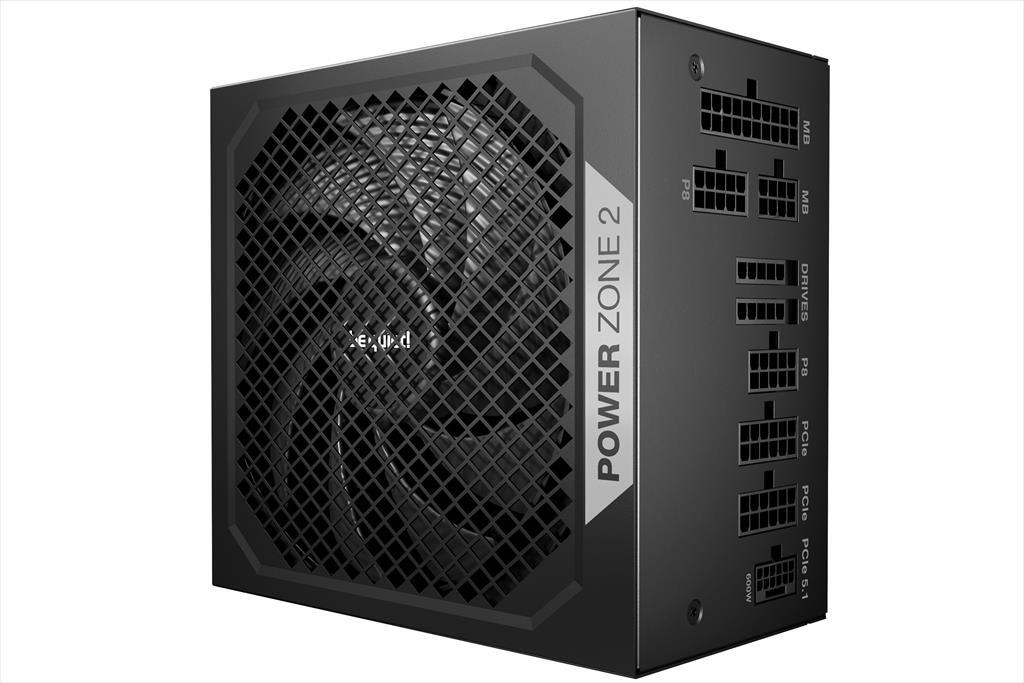

PSU 850W BE QUIET! POWER ZONE 2 80 Plus PLATINUM FULL MODULAR, w/ 90° angled 12V-2x6, BP007EU

Цена со ДДВ: 11.140 ден.
Шифра: 26315
Баркод: 4260052191378
Производител: Be quiet!
Гаранција: 1800 дена
залиха: има на залиха
Спецификација

Model name: BE QUIET! POWER ZONE 2 BP007EU

Specification :

  • Cables and connectors
    • Modular cables: ✓
    • Sleeved cables: ✓
    • Flat cables: ✓
    • Maximum cable length (cm): 100
    • Cable length to motherboard (cm): 60
    • No. of cables: 8
    • ATX-Motherboard (20+4-pin): 1
    • P4+4 (CPU): 1
    • P8 (CPU): 1
    • P4 (CPU): 1
    • 12V-2x6 cables: 1
    • PCI-e 6+2-pin (GPU): 3
    • SATA: 7
    • PATA: 1
  • General
    • Model: Power Zone 2 850W
    • Continuous power (W): 850
    • Peak power (W): 920
    • Form factor: ATX 3.1
    • Form factor EPS 12V: Version 2.92
    • Topology: LLC + SR + DC/DC
    • Voltage (Vac): 100 - 240
    • Frequency (Hz): 50 - 60
    • Input current (A): 10 / 5
    • Power factor at 100% load: >0.98
    • Modern standby: ✓
    • Power consumption in standby (W): <0.18
    • Average life time (h / 25°C): >100,000
    • Operating temperature up to (°C): 40
  • Efficiency
    • 80 PLUS certification: Platinum
    • Efficiency (%) at 230V, 2% load: 68.3
    • Efficiency (%) at 230V, 10% load: 89.9
    • Efficiency (%) at 230V, 20% load: 93.0
    • Efficiency (%) at 230V, 50% load: 94.1
    • Efficiency (%) at 230V, 100% load: 92.3
  • Fan and cooling technology
    • Cybenetics Noise Rating: A+
    • Fan: Pure Wings 3
    • Fan size (mm): 140
    • Bearing technology: Rifle
    • Motor technology: 4-pole fan motor
    • Max. fan speed (rpm): 2100
    • dB(A) at 10% load: 6.5
    • dB(A) at 20% load: 6.5
    • dB(A) at 50% load: 6.5
    • dB(A) at 100% load: 24.9
  • Output
    • 12V single rail operation: ✓
    • Overclocking key: -
    • +3.3V (A): 20
    • +5V (A): 20
    • +12V1 (A): 70.8
    • -12V (A): 0.5
    • +5Vsb (A): 3
    • Max. combined power 12V (W): 849.6
    • Max. combined power 12V-2x6 (W): 600
    • Max. combined power 3.3V + 5V (W): 120
    • Hold-up time at 100% load (ms): 21.1
    • Hold-up time at 80% load (ms): 29.0
    • Power good signal (ms): 100 - 150
  • Protection
    • OTP (over temperature protection) ✓
    • OCP (over current protection) ✓
    • OPP (over power protection) ✓
    • SCP (short circuit protection) ✓
    • OVP (over Voltage protection) ✓
    • UVP (under Voltage protection) ✓
    • SIP (Surge & Inrush protection) ✓
