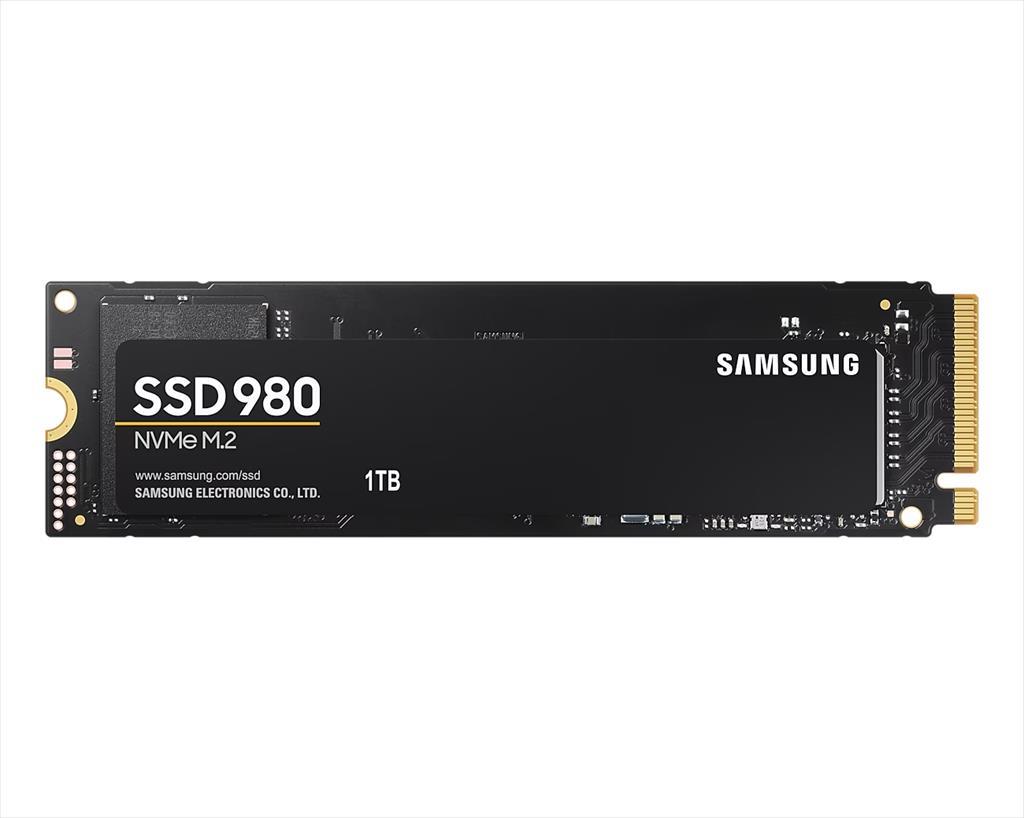

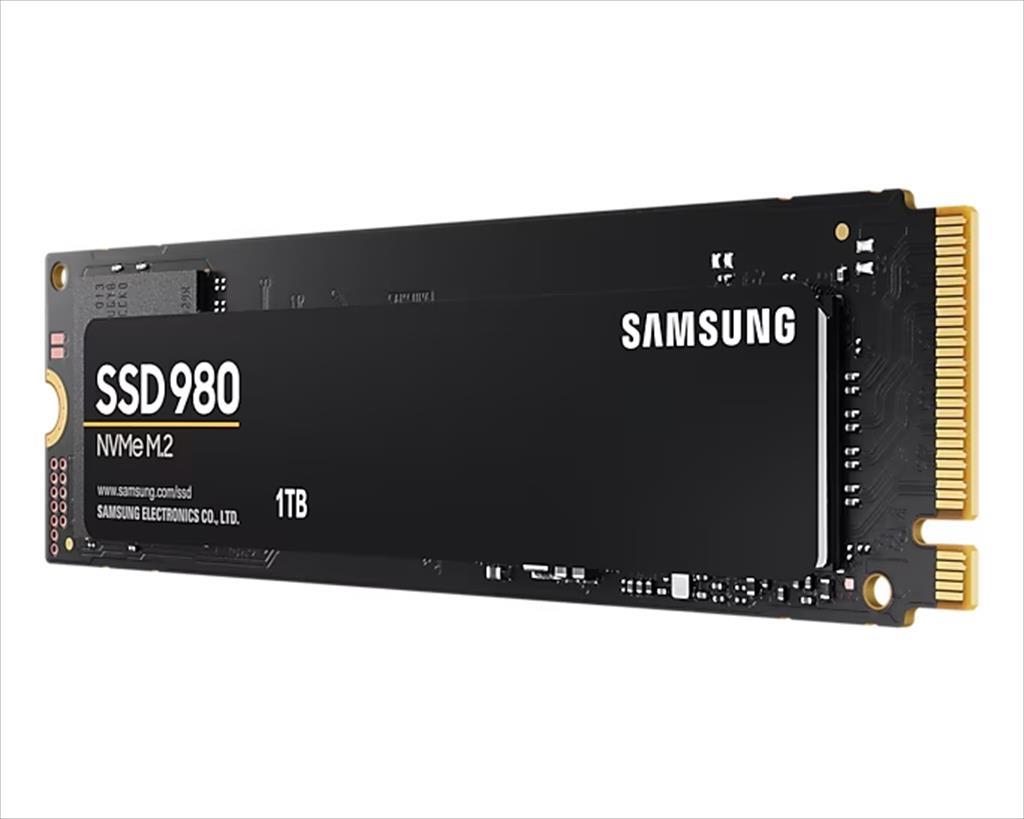

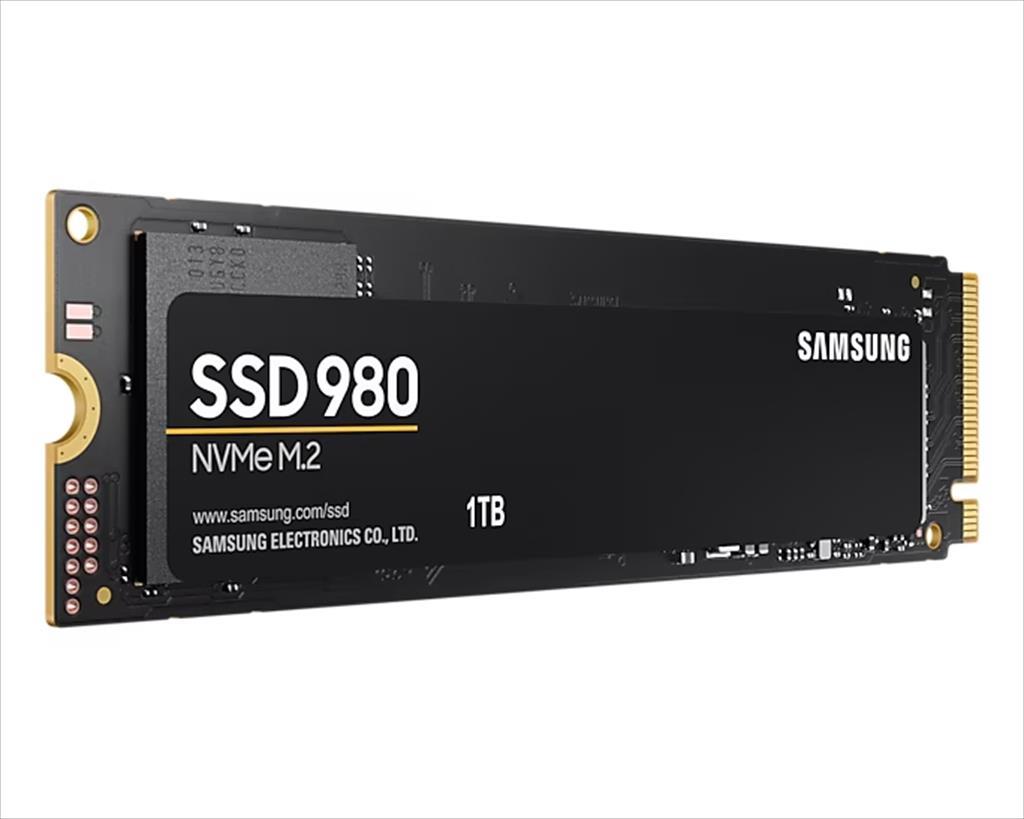

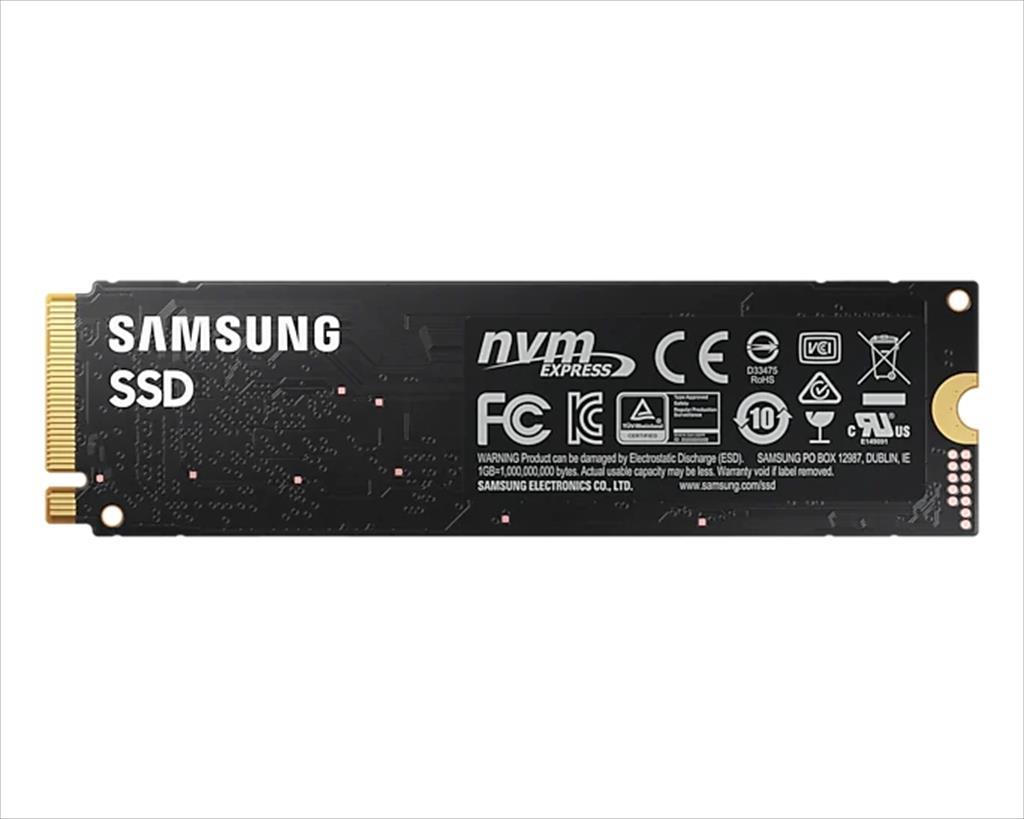

SSD M.2 1TB SAMSUNG 980 M.2 NVMe PCIe Gen3 MZ-V8V1T0BW

Спецификација

Application Client PCs
Capacity 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor M.2 (2280)
Interface PCIe Gen 3.0 x4, NVMe 1.4
Dimension (Pack: WxHxD) 80.15 x 22.15 x 2.38 (mm)
Weight Max 8.0 g Weight
Storage Memory Samsung V-NAND 3-bit MLC
Controller Samsung Pablo Controller
Cache Memory HMB(Host Memory Buffer)

TRIM Support Supported
S.M.A.R.T Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
Device Sleep Mode Support Yes

Sequential Read Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Up to 3,000 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32) Up to 500,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32) Up to 480,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1) Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1) Up to 54,000 IOPS * Performance may vary based on system hardware & configuration

Average Power Consumption (system level) *Average: 4.6 W*Maximum: 5.3 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle) Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 ℃ Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
