PSU 1600W BE QUIET! DARK POWER PRO 13 w/PCIe 5.0, 80 Plus TITANIUM FULL MODULAR, BN332

Цена со ДДВ: 30.500 ден. 33.400 ден.
Шифра: 26213
Баркод: 4260052189375
Производител: Be quiet!
Гаранција: 1800 дена
залиха: Наскоро
Спецификација

Model name: BE QUIET! DARK POWER 13 PRO BN332

Specification :

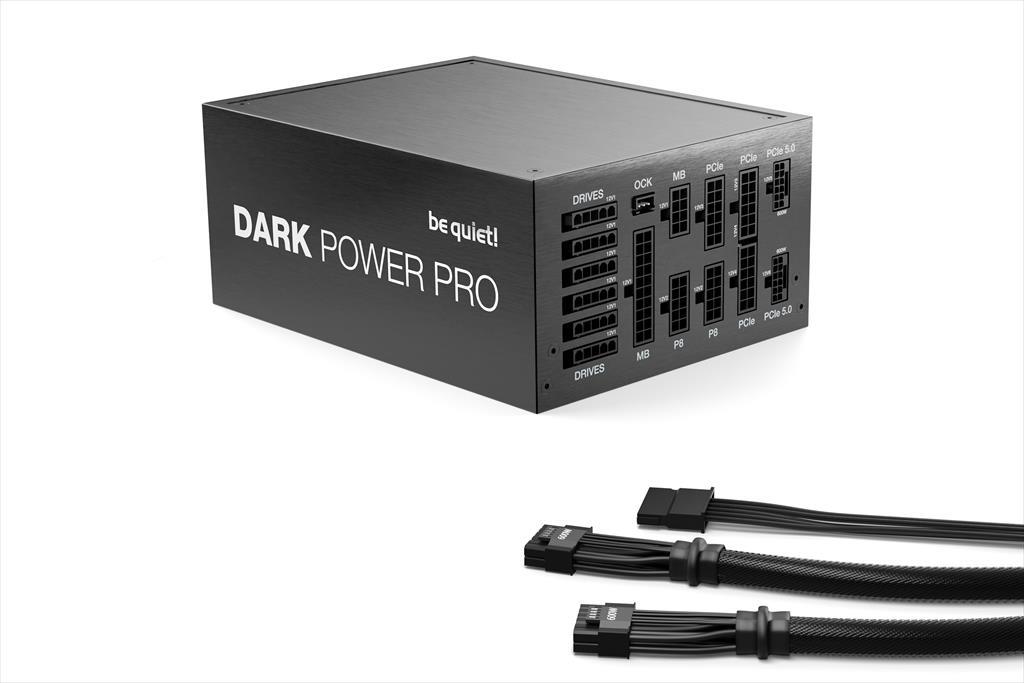

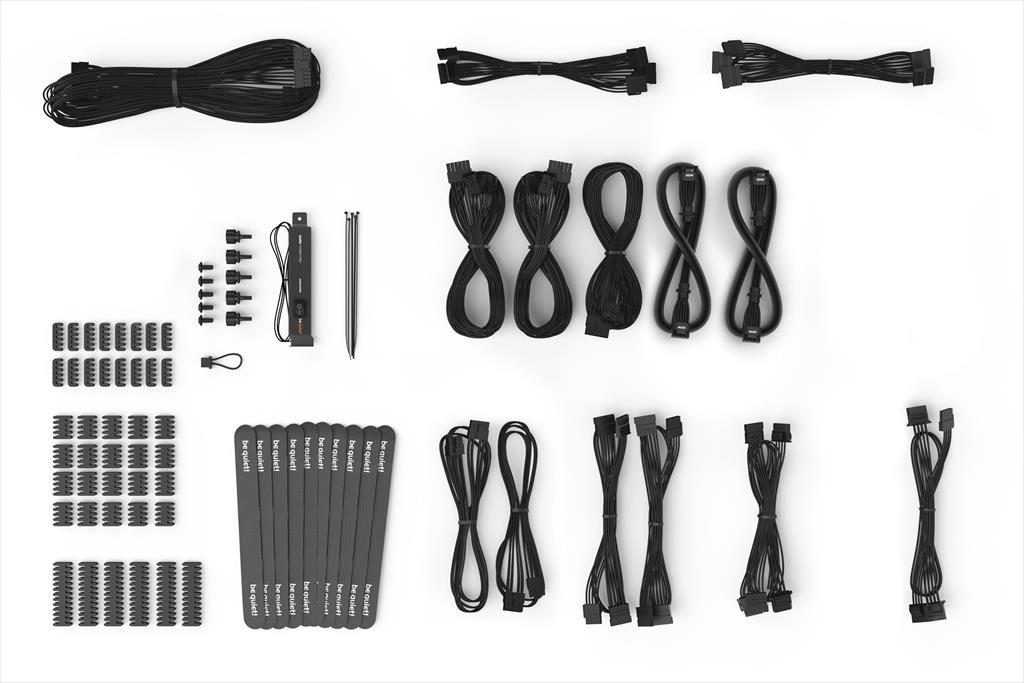

  • Cables and connectors:
    • Modular cables: ✓
    • Sleeved cables: ✓
    • Maximum cable length (cm): 105
    • Cable length to motherboard (cm): 60
    • No. of cables: 16
    • ATX-Motherboard (20+4-pin): 1
    • P4+4 (CPU): 1
    • P8 (CPU): 1
    • 12V-2x6 cables: 2
    • PCI-e 6+2-pin (GPU): 6
    • SATA: 16
    • PATA: 5
  • General:
    • Continuous power (W): 1600
    • Peak power (W): 1700
    • Form factor: Version 3.1
    • Form factor EPS 12V: Version 2.92
    • Topology: Full bridge + LLC + SR + DC/DC
    • Digitally controlled: ✓
    • Voltage (Vac): 115 - 240
    • Frequency (Hz): 50 - 60
    • Input current (A): 15 / 9
    • Power factor at 100% load: >0.99
    • Modern standby: ✓
    • Power consumption in standby (W): <0.06
    • Average life time (h / 25°C): >100,000
    • Operating temperature up to (°C): 50
  • Efficiency:
    • 80 PLUS certification: Titanium
    • Efficiency (%) at 230V, 2% load: 73.7
    • Efficiency (%) at 230V, 10% load: 92.6
    • Efficiency (%) at 230V, 20% load: 94.2
    • Efficiency (%) at 230V, 50% load: 94.5
    • Efficiency (%) at 230V, 100% load: 92.2
  • Fan and cooling technology:

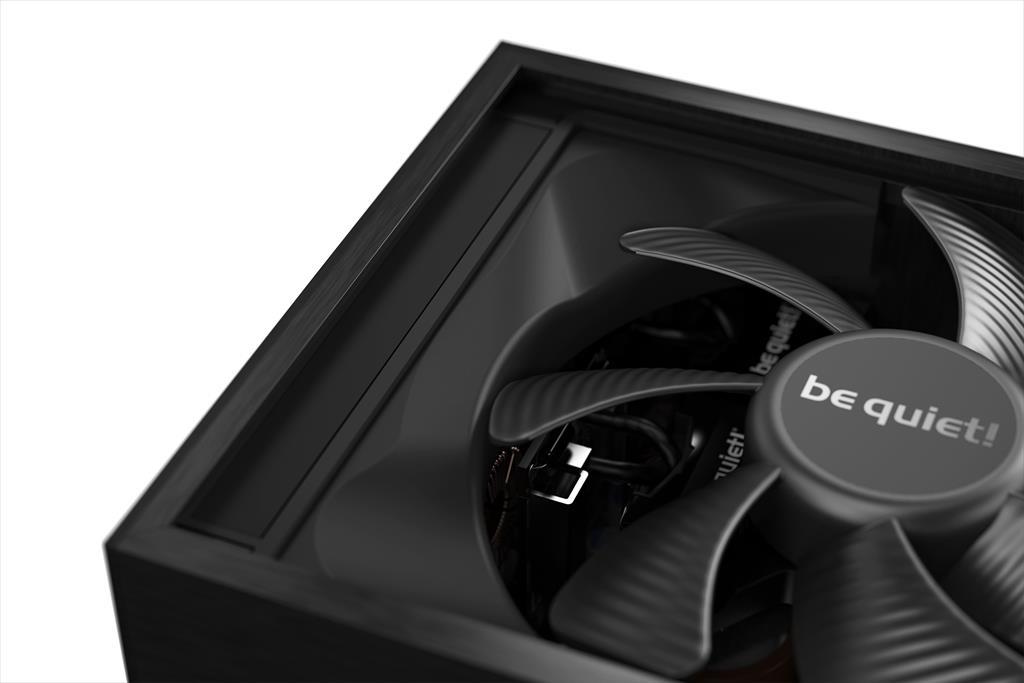

    • Fan: Silent Wings
    • Fan size (mm): 135
    • Bearing technology: FDB
    • Motor technology: 6-pole fan motor
    • Max. fan speed (rpm): 2600
    • dB(A) at 10% load: 9.5
    • dB(A) at 20% load: 9.6
    • dB(A) at 50% load: 9.8
    • dB(A) at 100% load: 31.1
  • Output:
    • Multi-rail operation (12V rails): 6
    • 12V single rail operation: ✓
    • Overclocking key: ✓
    • +3.3V (A): 25
    • +5V (A): 25
    • +12V1 (A): 40
    • +12V2 (A): 40
    • +12V3 (A): 45
    • +12V4 (A): 45
    • +12V5 (A): 55
    • +12V6 (A): 55
    • -12V (A): 0.5
    • +5Vsb (A): 3.5
    • Max. combined power 12V (W): 1600
    • Max. combined power 12V-2x6 (W): 1000
    • Max. combined power 3.3V + 5V (W): 150
    • Hold-up time at 100% load (ms): 18
    • Hold-up time at 80% load (ms): 21.3
    • Power good signal (ms): 100 - 150
  • Protection:
    • OTP (over temperature protection): ✓
    • OCP (over current protection): ✓
    • OPP (over power protection): ✓
    • SCP (short circuit protection): ✓
    • OVP (over Voltage protection): ✓
    • UVP (under Voltage protection): ✓
    • SIP (Surge & Inrush protection): ✓
