PAD THERMAL ARCTIC TP-4, 120 x 20 x 1.0 mm (pack of x4), ACTPD00066A

Цена со ДДВ: 560 ден.
Шифра: 36827
Баркод: 4895265001284
Производител: ARCTIC
Гаранција: 0 дена
залиха: има на залиха
Спецификација

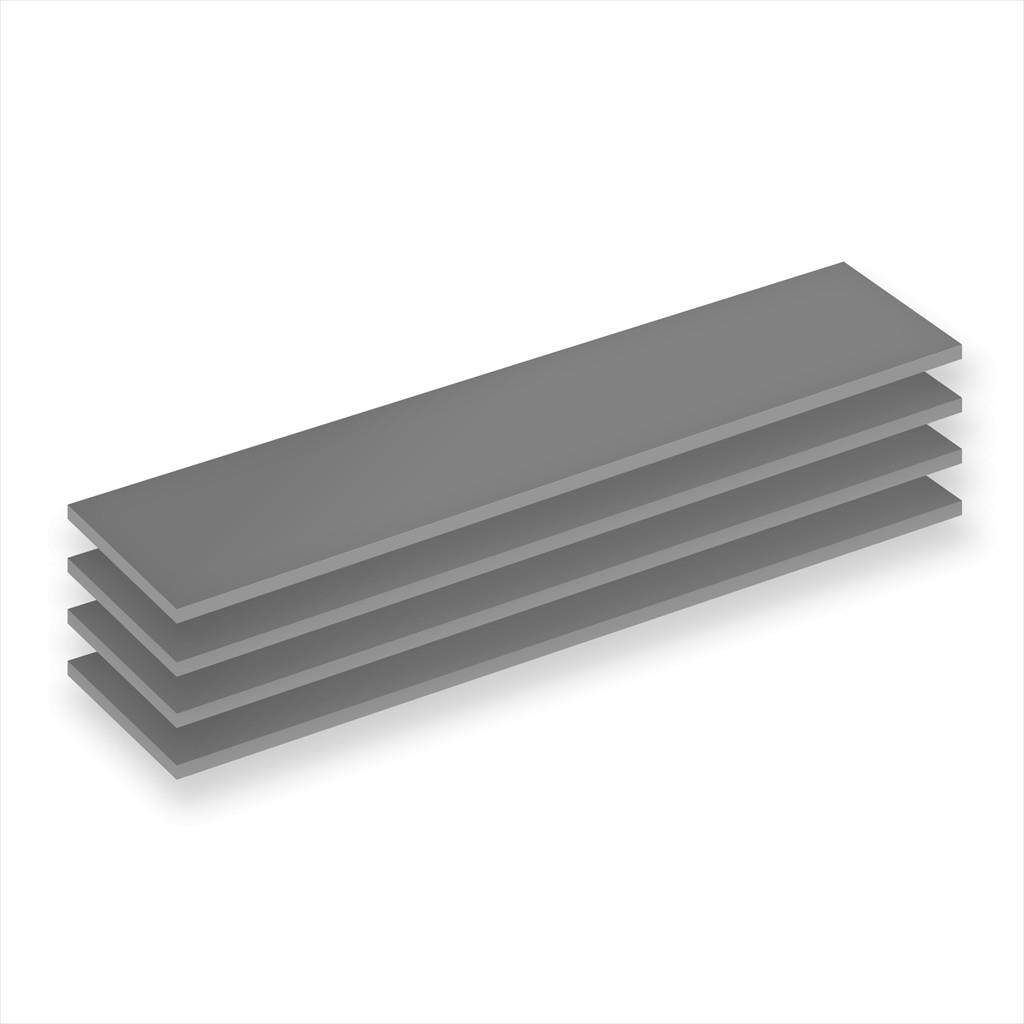

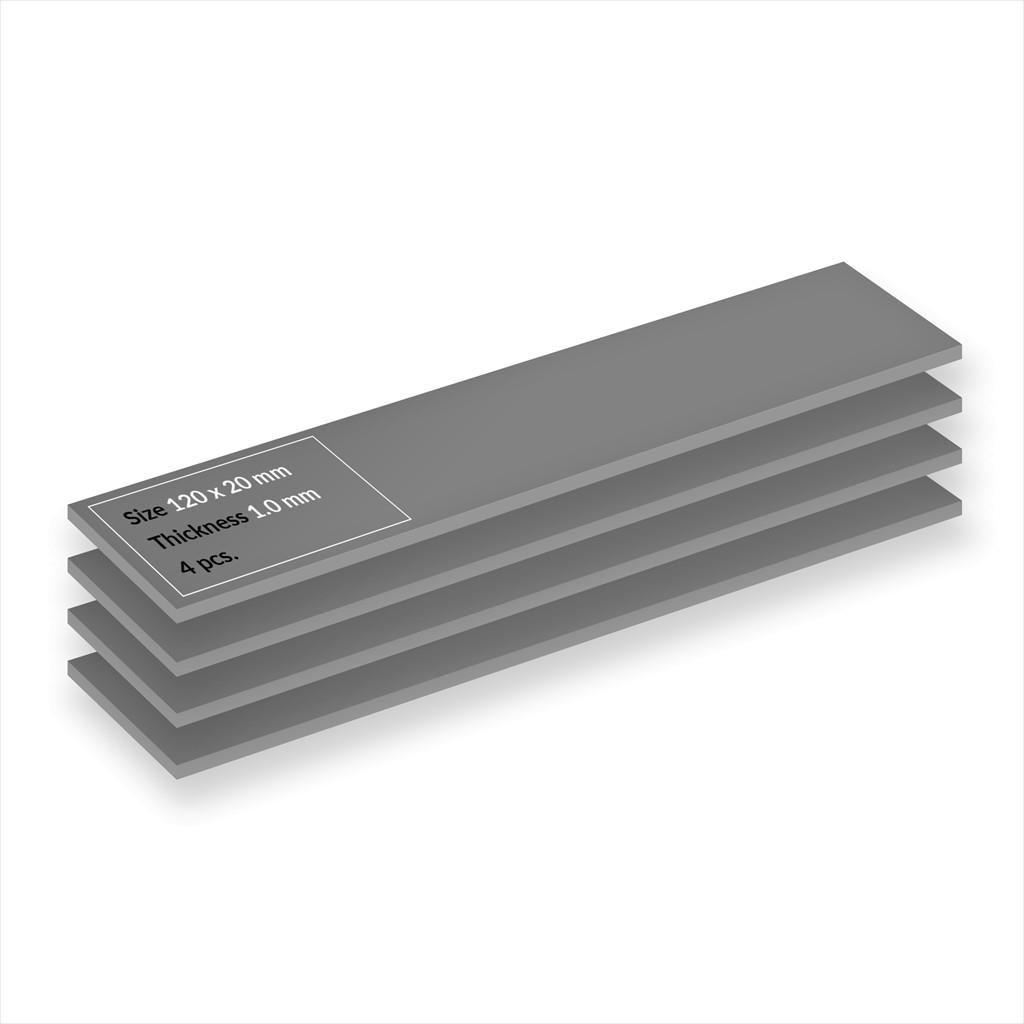

Model Name: Thermally Conductive Pad ARCTIC TP-4, 120 × 20 × 1.0 mm, 4-Pack

Thermally conductive silicone pad · 120 × 20 × 1.0 mm per pad · 4-pack
Electrically insulating thermal interface material for filling gaps between electronic components and heatsinks

Features

  • Four thermal pads included in each pack
  • 120 × 20 mm format for targeted cooling applications
  • 1.0 mm thickness for filling gaps between components and heatsinks
  • Soft 50 Shore OO material conforms to uneven surfaces
  • Electrically insulating construction helps protect electronic components
  • UL 94 V-0-rated material for enhanced flame resistance
  • Suitable for computers, graphics cards, laptops, consoles, M.2 SSDs, and other electronic devices

Specifications

  • Model name: ARCTIC TP-4 Thermal Pad
  • Product type: Thermally conductive pad
  • Pack quantity: 4 pads
  • Dimensions per pad: 120 × 20 × 1.0 mm
  • Length: 120 mm
  • Width: 20 mm
  • Thickness: 1.0 mm
  • Operating ambient temperature: -40 °C to 200 °C
  • Hardness: 50 Shore OO
  • Specific gravity: 3.4 g/cm³
  • Breakdown voltage: 8,620 V/mil
  • Dielectric constant: 7.2 at 1 MHz
  • Volume resistance: 1.52 × 10¹³ Ω·cm
  • Flammability rating: UL 94 V-0
