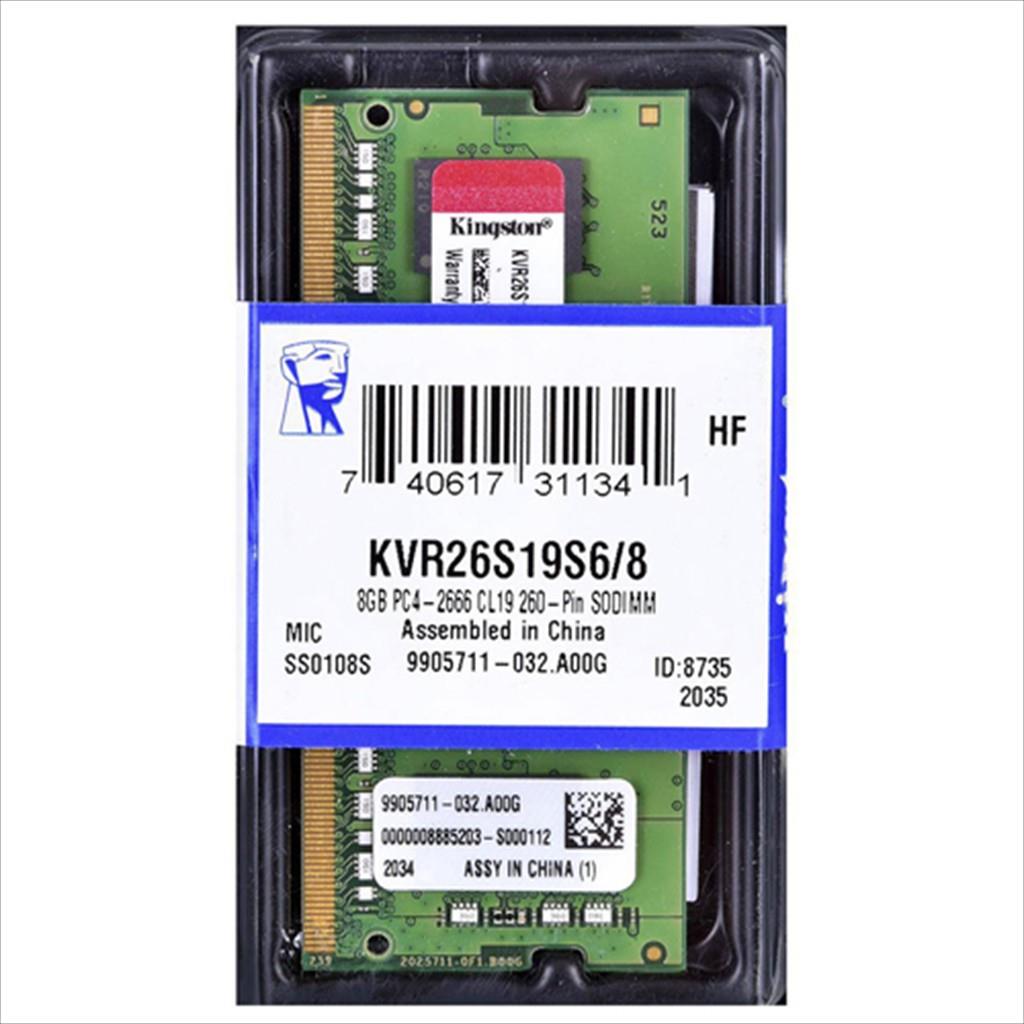

RAM SO DIMM DDR4 8GB 2666MHz KINGSTON CL19 KVR26S19S6/8

Цена со ДДВ: 4.970 ден.
Шифра: 03730
Баркод: 0740617311341
Производител: KINGSTON
Гаранција: 0 дена
залиха: има на залиха
Спецификација

Model Name: SO DIMM DDR4 8GB 2666MHz KINGSTON CL19 KVR26S19S6/8

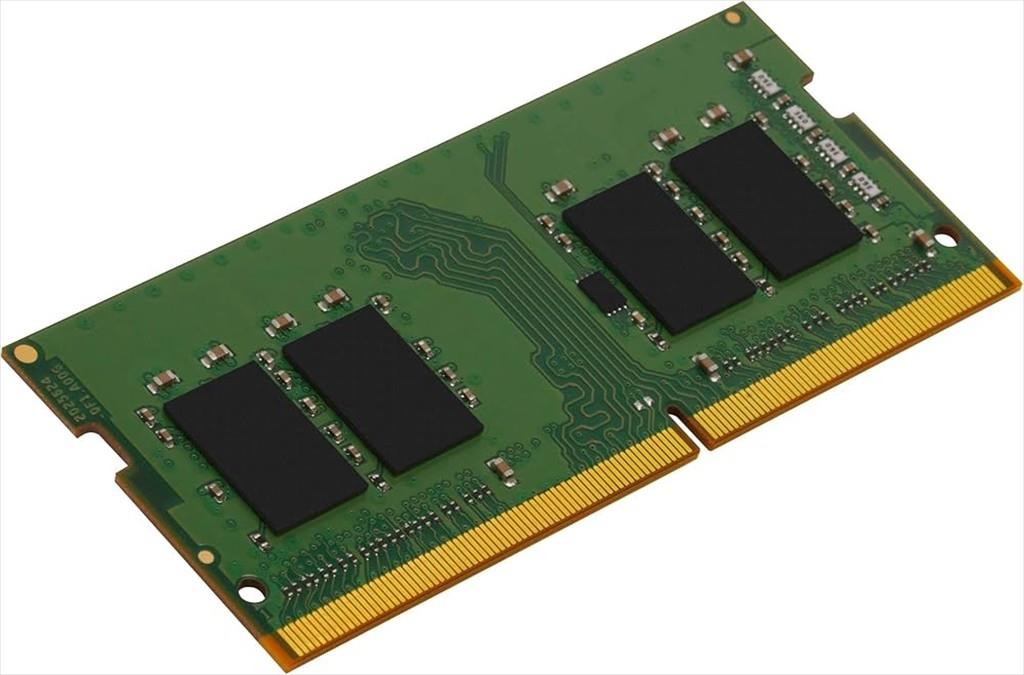

8 GB DDR4-2666 SO-DIMM · CL19 · 260-pin
Kingston ValueRAM · 1.2 V · Single-rank 1Rx16

Features

  • 8 GB 1Rx16 PC4-2666 CL19 SDRAM SO-DIMM module
  • JEDEC standard DDR4-2666 timing of 19-19-19 at 1.2 V
  • Based on four 1G × 16-bit FBGA components
  • Nominal and dynamic on-die termination (ODT) for data, strobe and mask signals
  • Low-power auto self refresh (LPASR) and data bus inversion (DBI)
  • On-die VREFDQ generation and calibration
  • On-board I²C SPD EEPROM for automatic configuration
  • RoHS compliant and halogen-free, with gold contact fingers

Specification

  • Capacity: 8 GB
  • Type: DDR4 SDRAM SO-DIMM
  • Speed: DDR4-2666 (PC4-2666)
  • CAS latency: CL19 (19-19-19)
  • Rank / organization: 1Rx16, 1G × 64-bit
  • Form factor: 260-pin SO-DIMM
  • IC configuration: 4 × 1G × 16-bit FBGA
  • Banks: 8 internal banks (2 groups of 4)
  • Burst length: BC4 / BL8 selectable (OTF)
  • Topology: Fly-by, terminated control/command/address bus
  • Voltages: VDD 1.2 V, VDDQ 1.2 V, VPP 2.5 V, VDDSPD 2.2–3.6 V
  • PCB height: 30.00 mm (1.18")
  • Compliance: RoHS compliant, halogen-free
  • Series: Kingston ValueRAM (KVR26S19S6/8)
