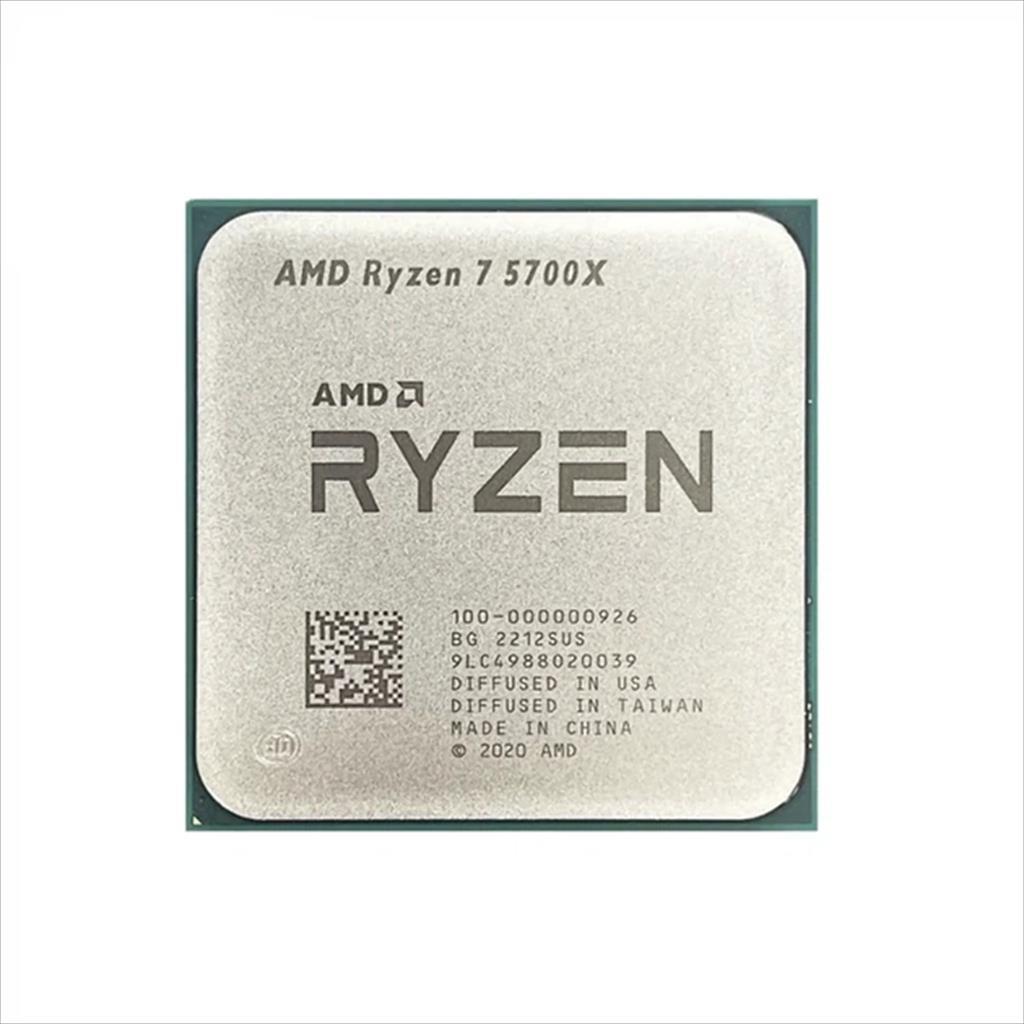

Model name: AMD RYZEN 7 5700X

Specification :

• # of CPU Cores : 8
• Multithreading (SMT):Yes
• # of Threads: 16
• Max. Boost Clock: Up to 4.6 GHz
• Base Clock: 3.4 GHz
• L1 Cache: 512 KB
• L2 Cache: 4 MB
• L3 Cache: 32 MB
• Default TDP: 65W
• Processor Technology for CPU Cores: TSMC 7nm FinFET
• Processor Technology for I/O Die :12nm (Globalfoundries)
• CPU Compute Die (CCD) Size : 74mm²
• I/O Die (IOD) Size : 2
• Unlocked for Overclocking : Yes
• CPU Socket : AM4
• Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
• CPU Boost Technology : Precision Boost 2
• Instruction Set : x86-64
• Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Thermal Solution (PIB) : Not Included
• Max. Operating Temperature (Tjmax) : 90°C
• *OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
• Connectivity
  • Native USB 3.2 Gen 2 (10Gbps): 4
  • Native USB 3.2 Gen 1 (5Gbps): 0
  • Native USB 2.0 (480Mbps): 0
  • Native SATA Ports: 2
• PCI Express
  • PCI Express® Version: PCIe® 4.0
  • Native PCIe® Lanes (Total / Usable): 24 / 20
  • Additional Usable PCIe Lanes from Motherboard
    • X570: 16× Gen 4
    • X470: 2× Gen 3, 8× Gen 2
• NVMe Support
  • Modes: Boot, RAID0, RAID1, RAID10
• System Memory
  • Memory Type: DDR4
  • Memory Channels: 2
  • Max Memory: 128 GB
  • Memory Subtype: UDIMM
  • Memory Specification: Up to 3200 MT/s
  • Max Memory Speed
    • 2×1R: DDR4-3200
    • 2×2R: DDR4-3200
    • 4×1R: DDR4-2933
    • 4×2R: DDR4-2667
