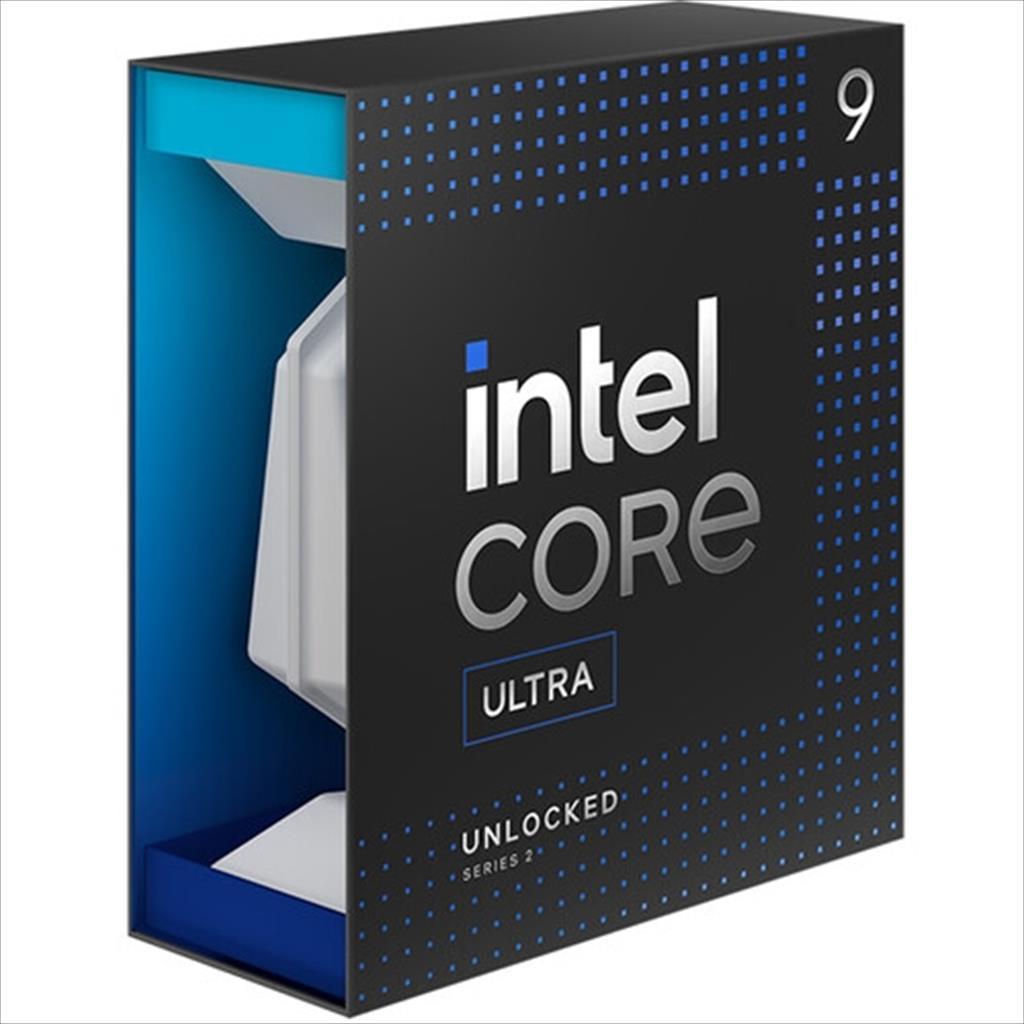

Model name: INTEL ULTRA 9 285K

Specifications:

• Total Cores: 24
• # of Performance-cores: 8
• # of Efficient-cores: 16
• Total Threads: 24
• Max Turbo Frequency: 5.7 GHz
• Intel® Thermal Velocity Boost Frequency: 5.7 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
• Performance-core Max Turbo Frequency: 5.5 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Performance-core Base Frequency: 3.7 GHz
• Efficient-core Base Frequency: 3.2 GHz
• Cache: 36 MB Intel® Smart Cache
• Total L2 Cache: 40 MB
• Processor Base Power: 125 W
• Maximum Turbo Power: 250 W
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography: TSMC N3B
• Max Memory Size (dependent on memory type): 256 GB
• Memory Types: Up to DDR5 6400 MT/s
• Maximum Memory Speed: 6400 MHz
• Max # of Memory Channels: 2
• ECC Memory Supported: Yes
• GPU Name: Intel® Graphics
• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 2 GHz
• GPU Peak TOPS (Int8): 8
• Graphics Output: DP2.1 UHBR20, HDMI2.1 FRL 12GHz, eDP1.4b
• Xe-cores: 4
• Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS), 8K @ 60Hz (HDMI2.1 FRL)
• Max Resolution (DP): 8K @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
• DirectX* Support: 12
• OpenGL* Support: 4.5
• OpenCL* Support: 3
• Intel® Quick Sync Video: Yes
• # of Displays Supported: 4
• Device ID: 0x7D67
• Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
• NPU Name: Intel® AI Boost
• NPU Peak TOPS (Int8): 13
• Sparsity Support: Yes
• Windows Studio Effects Support: Yes
• AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• Direct Media Interface (DMI) Revision: 4
• Max # of DMI Lanes: 8
• Intel® Thunderbolt™ 4: Yes
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
• Max # of PCI Express Lanes: 24
• Max Operating Temperature: 105 °C
